www.charltonandjenrick.co.uk 11 LT5052 (ISS 5)

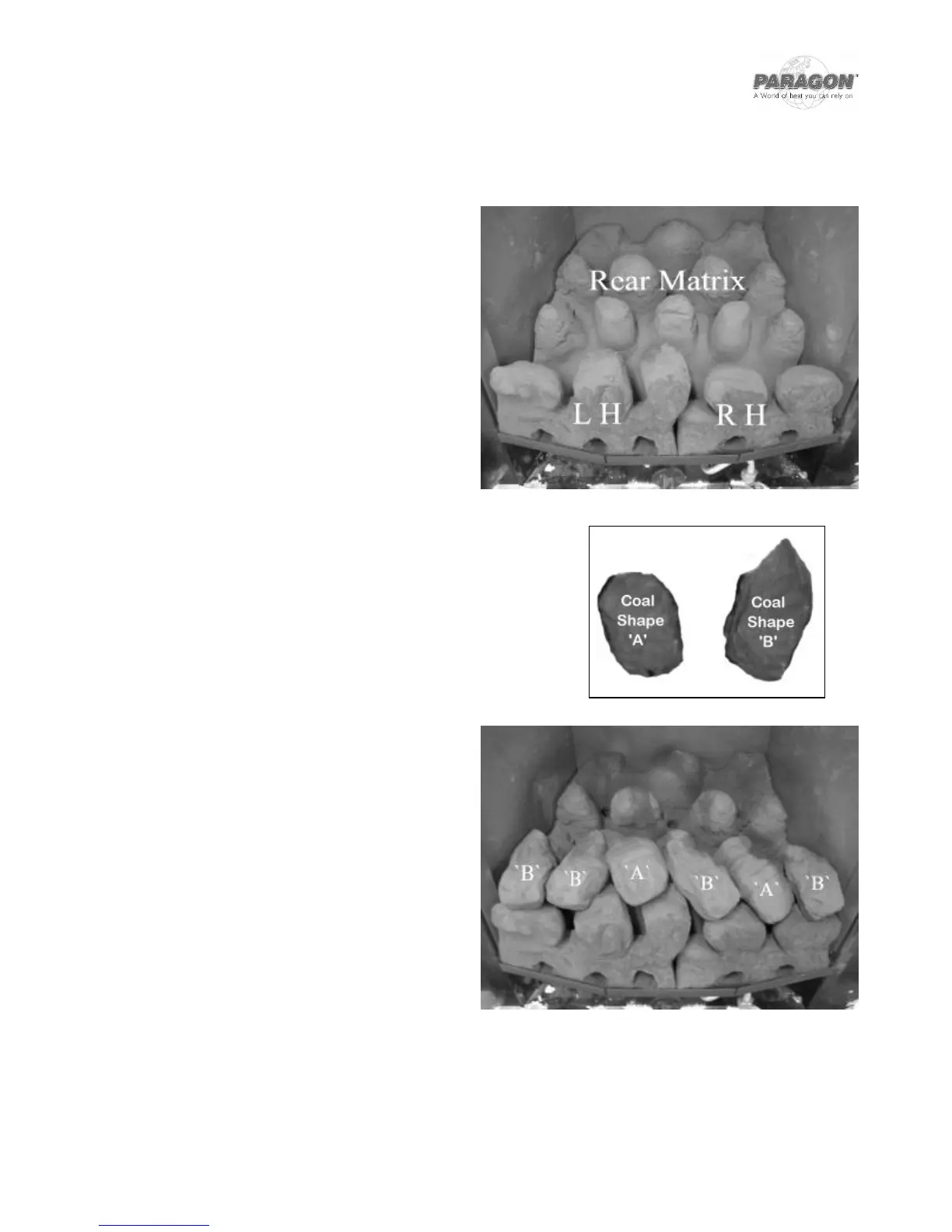

Locate the LEFT HAND and RIGHT HAND FRONT
COALS as shown so that they sit in front of the
burner, positioned behind the front lip of the tray.
Ensure that they lean back against the BASE MATRIX.
Note: It is very important that they are located in
their correct positions. They are marked on the rear
‘L’ for LEFT HAND FRONT COAL and ‘R’ for RIGHT
HAND FRONT COAL.
Separate the coal into the two size groups
The loose coals provided consist of 5 COALS ‘A’ SHAPE and 9 COALS
‘B’ SHAPE.
.
Lay the first row of loose coals “B” and “A” shapes as
shown.
