SECTION EIGHT Siting the Appliance (installation instructions)
FLUE TERMINAL POSITION
The flue outlet must terminate on an outside wall.

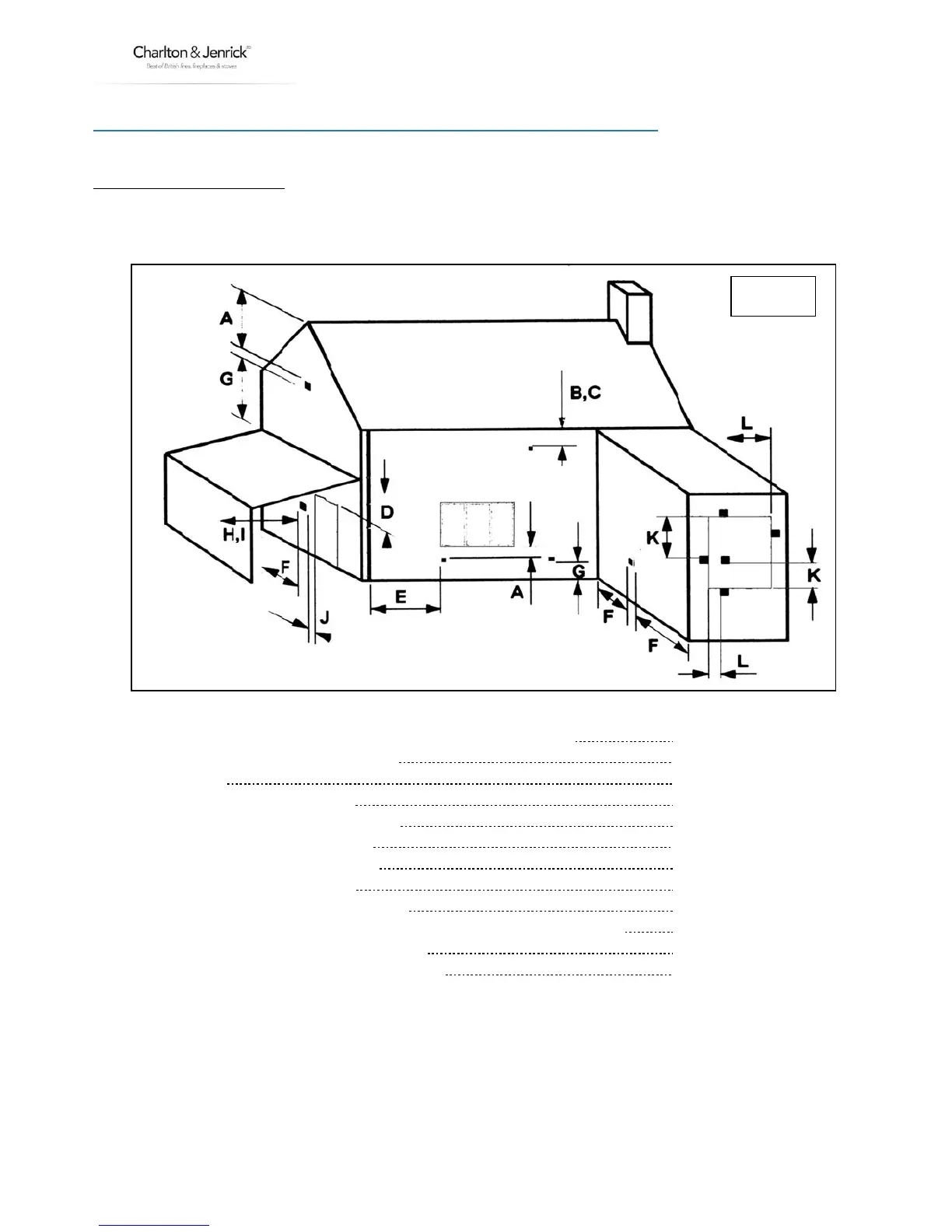

The minimum flue terminal clearances, which must be maintained, are shown in fig.1: -
A. Directly below an operable window or other opening, eg. air brick 300mm
B. Below gutters, soil pipes or drain pipes 75mm
C. Below eaves 200mm
D. Below balconies or car port roof 200mm
E. From vertical drain pipes and soil pipes 75mm
F. From internal and external corners 150mm
G. Above ground, roof or balcony level 150mm
H. From a surface facing a terminal 600mm
I. From a terminal facing a terminal 1200mm
J. From an opening in the car port into the dwelling, e.g. door, window, etc. 1200mm
K. Vertically from a terminal on the same wall 1500mm
L. Horizontally from a terminal on the same wall 300mm
