Paragon EC72 Series User Manual

To convert the EC72D:
1. Remove the control according to directions on page 17.

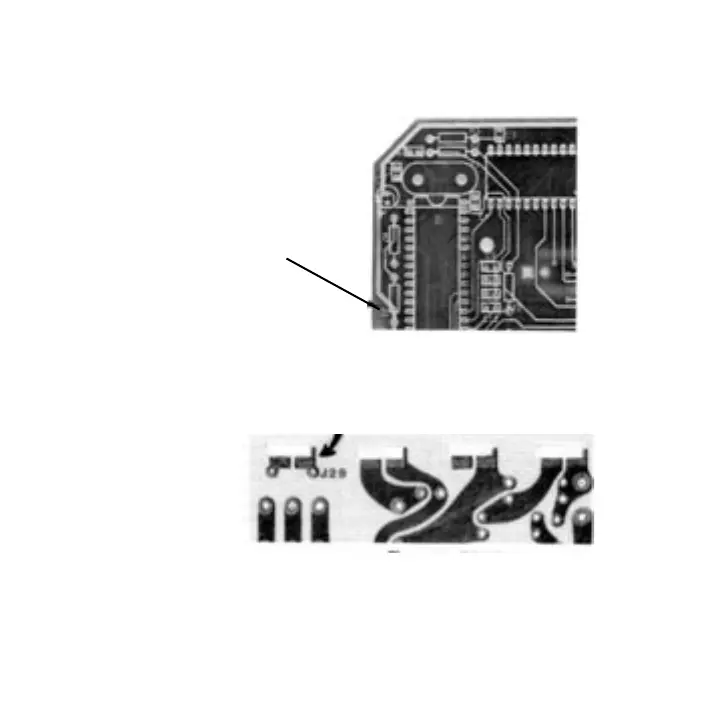

2. The jumper wire, J29, is located on the back side of the control in
the upper left-hand corner of the board. See Figure 10 below. Clip
J29.
Figure 10. EC72D Jumper Wire
23
Figure 9A.
EC72
Jumper Wire

Paragon EC72 Series Specifications

General

Brand	Paragon
Model	EC72 Series
Category	Timer
Language	English
