P10 INSTALLATION INSTRUCTIONS
The battery manual override option is a backup supply in case of a power failure / power cut to
the property. The battery holder and adaptor lead sold separately. (Please note that the “C”
cell batteries are not included). It is good practice to demonstrate the battery option to the
customer during the commissioning process.
Fire Box Installation
Note: - When installing the appliance with a 3 inch (75mm) rebated surround the optional 30mm
spacer frame Part No 8072 will be required.
The fire box assembly can be retained using the following two methods.
Secure the firebox when fitted with 2 inch (50mm) rebated surround.
Using suitable rawl plugs and wood screws retain the fire box using the four 6mm holes within the
firebox flange. With the fire box secured, slide the fireplace frame assembly over the four 4mm
studs projecting forward from the fire box flange. Fix the frame to the fire box using the M4 nuts

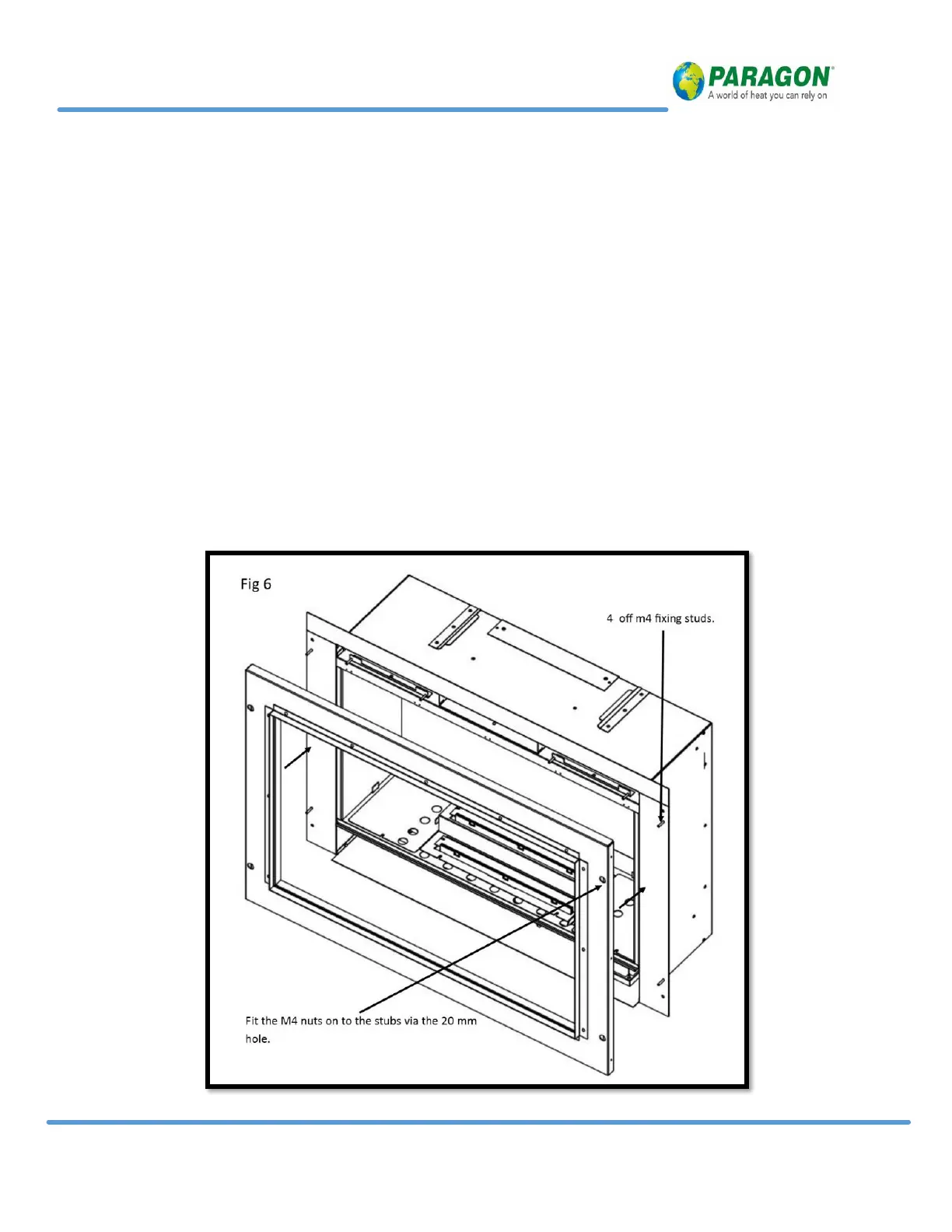

and the nut spinner provided within the appliance packaging. (Please see figure 6)
