Paragon Slimline 2 Slide
&
2
Slide Lo

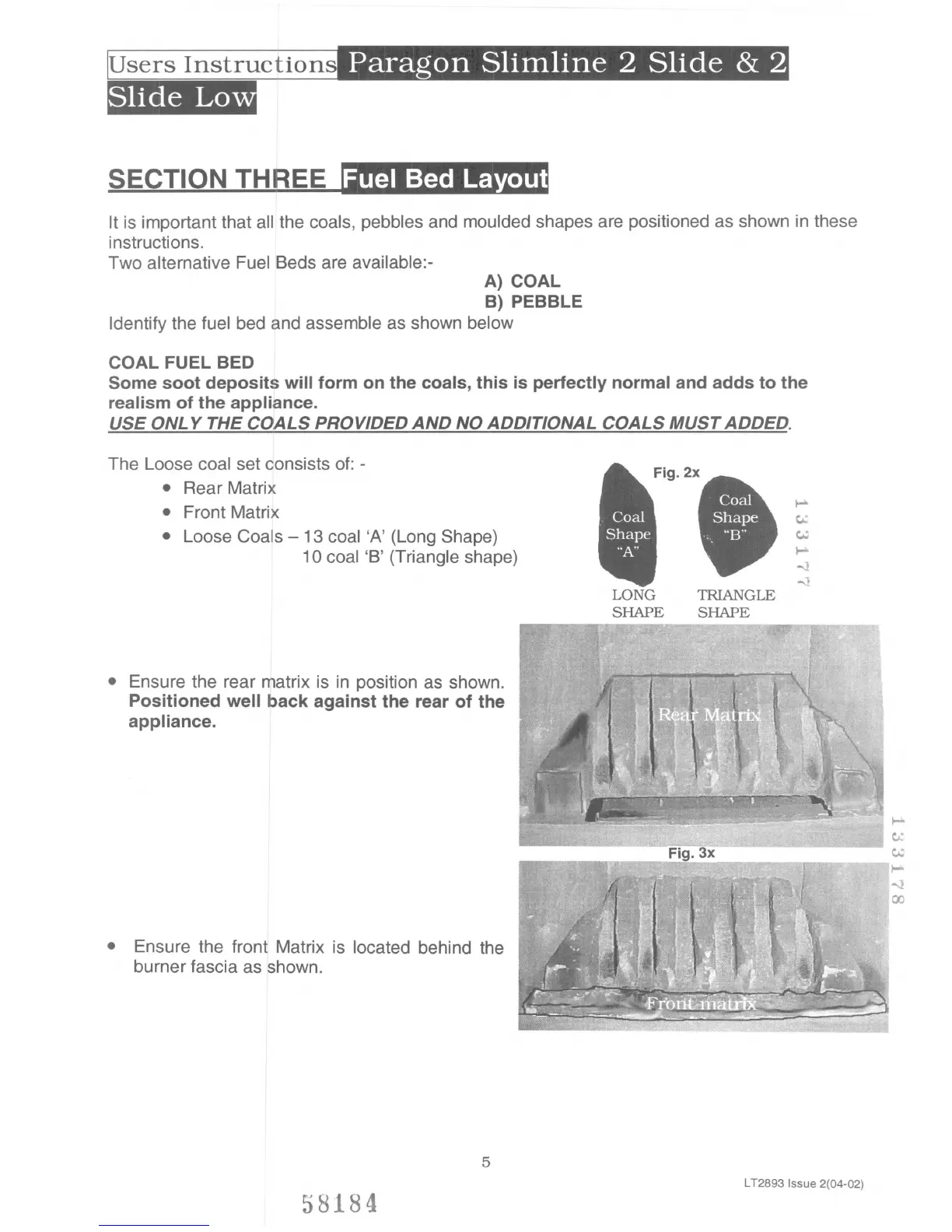

SECTION THREE
It is important that all the coals, pebbles and moulded shapes are positioned as shown in these
instructions.
Two alternative Fuel Beds are available:-
A) COAL
B) PEBBLE
Identify the fuel bed and assemble as shown below
COAL FUEL BED
Some soot deposits will form on the coals, this is perfectly normal and adds to the
realism of the appliance.
USE ONL Y THE COALS PROVIDED AND NO ADDITIONAL COALS MUST ADDED.
The Loose coal set consists of: -
• Rear Matrix
• Front Matrix
• Loose Coals - 13 coal 'A' (Long Shape)
10 coal 'B' (Triangle shape)
LONG
SHAPE
TRIANGLE
SHAPE
• Ensure the rear matrix is in position as shown.
Positioned well back against the rear of the
appliance.
• Ensure the front Matrix is located behind the
burner fascia as shown.
58184
