2
1
5432
Main
Line
When Equipped with " Option A" option, suitable for use in accordance
with article 702 of the National Electrical Code, ANSI/NFPA 70.
Refer to
only when
using Main
Breaker
Refer to
only when
using Line
Terminal
FIELD WIRING 60 C MIN.
TORQUE RATINGS:
Line Terminal: 35 IN. LBS.
Neutral Bar: 35 IN. LBS.
Equip. Ground: AWG IN. LBS.
8 40
10 - 14 35
Line Terminal
10 - 14 CU Conductor
Isolated
Neutral
10 - 14 CU
Equip. Ground
Wiring Connector
NOTE: One of the typical diagrams, shown below
pertains to this model. Main breaker must be used when
3 or more branch breakers are used. The following
breakers are suitable for MAIN and BRANCH breakers:
Bryant - BR , BD , G FC B, Filler Plate-fp-1B
ITE Gould - QP, QT, Filler Plate-QF3
Thomas & Betts - TB, TBBD
Filler Plate - FP-1CTB
Square D - HOM : Filler Plate-HOMFP
TORQUE RATINGS: 8-14 AWG - 36 IN. LBS.
Square D - HOM T: Filler Plate-HOMFP
TORQUE RATINGS: 8-14 AWG - 26 IN. LBS.
Short circuit rating of this panelboard is 10,000 RMS symmetrical
amperes, 120VAC, but the rating is limited to the lowest interrupting
capacity at a supply voltage of any breaker installed. The replacement
circuit breakers must be of the same type and interrupting ratings.
MOUNT PANEL AS SHOWN BELOW

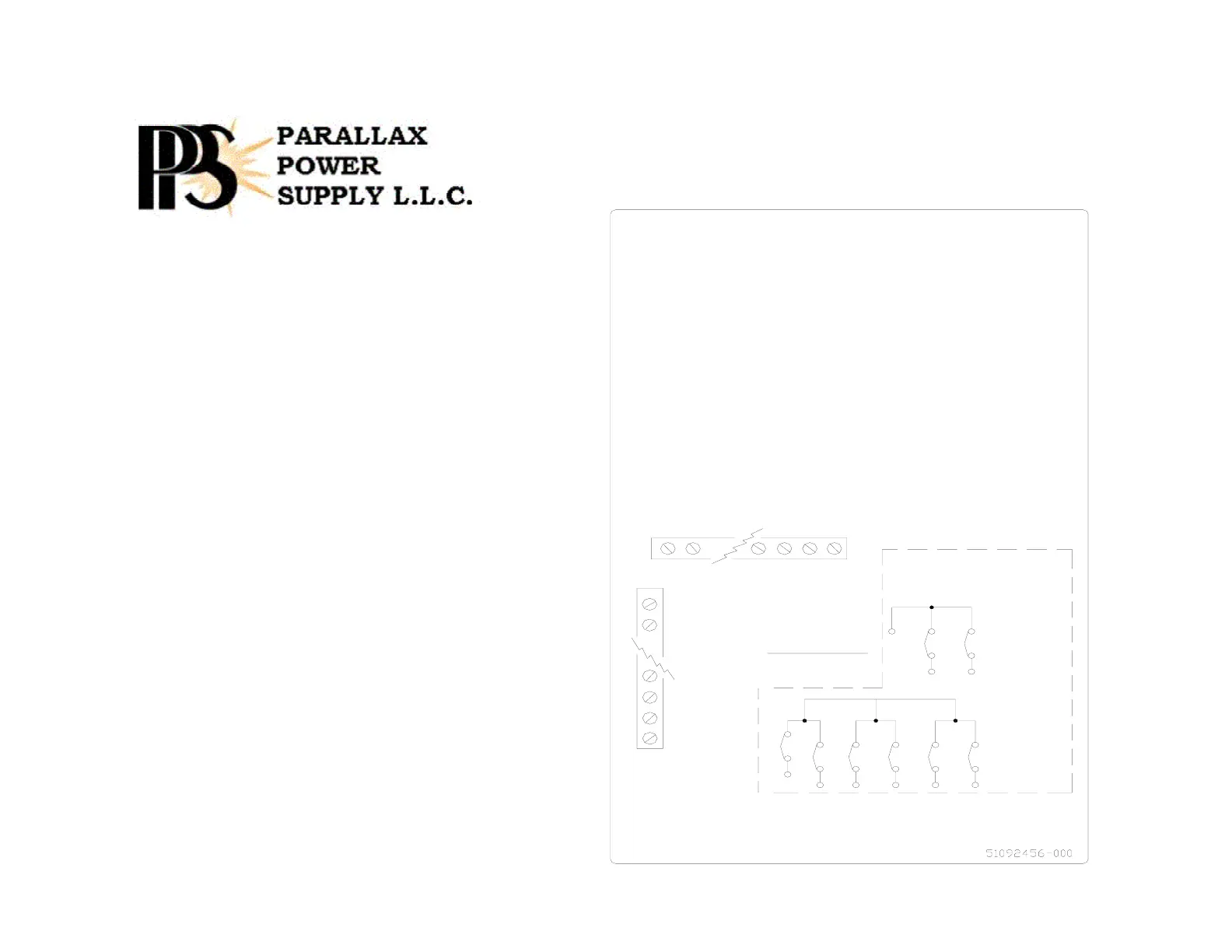

PANELBOARD WIRING DIAGRAM
1
1-800-443-4859
The Power to Bring People and Places Together !
7300 Series Wiring Labels
120 VAC Wiring Label
(located on back of metal dead front plate
covering breaker compartment)
Electrical installation shall
comply with Article 551 and
other applicable sections of the
National Electric Code.
To Next Page
