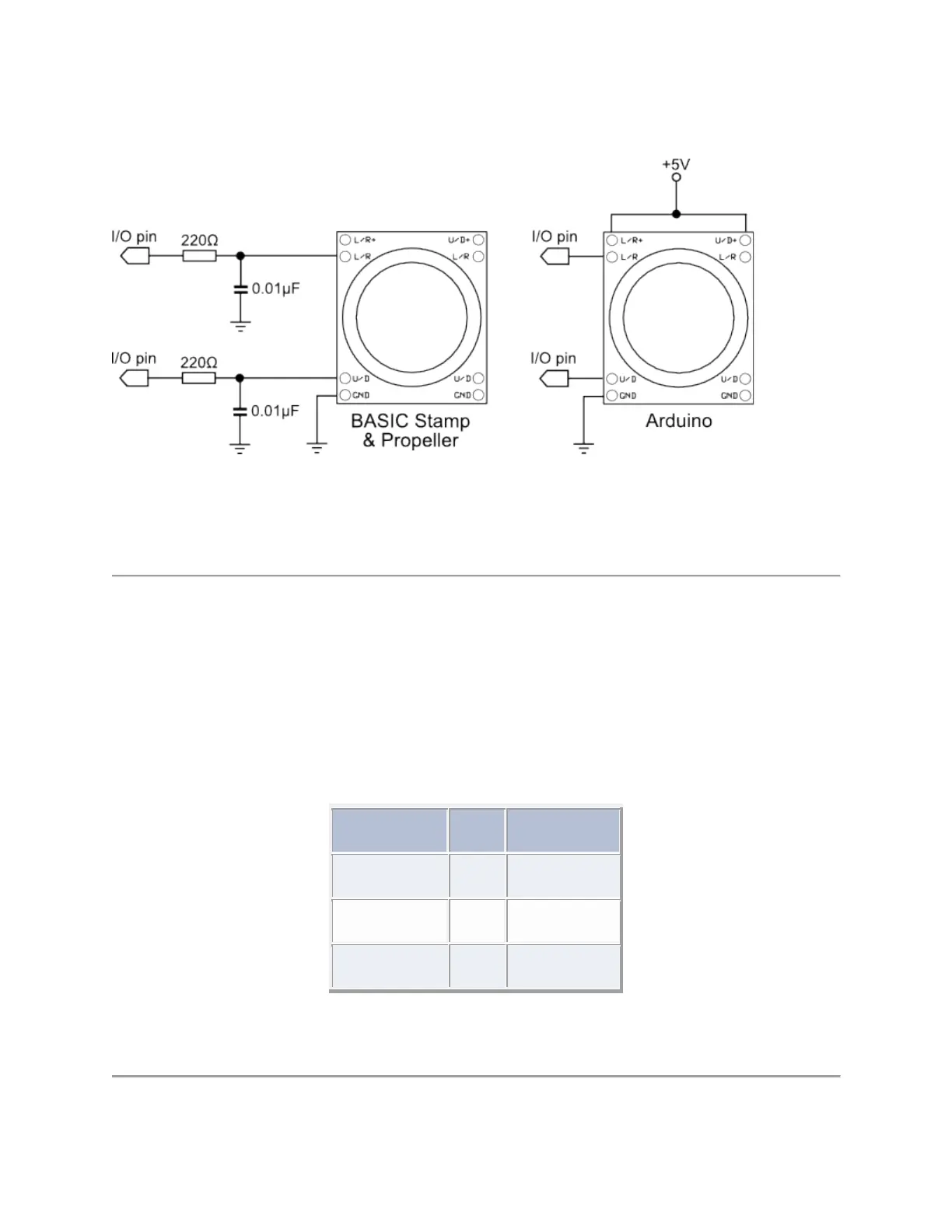

Basic Wiring
• Interface: Dual 10 k Ω potentiometers with common ground
• Power consumption: 0.01W
• Dimensions: 1.64 x 1.2 x 1.1 in (41.67 x 30.54 x 27.7 mm)
Program KickStarts
The examples in this KickStart display the instantaneous values of the X and Y (Left/Right, and
Up/Down) axes of the joystick. The values are displayed in a debug window or serial monitor.
The range of values returned is dependent on the type of interface used between the joystick and
microcontroller. The values noted below are approximate, and are based on the circuitry
described in Basic Wiring.
