Paramina Typhoon Open 15E User Manual

User Manual - Typhoon Open – 01/2018 edition
.
PARAMINA SA – Byway Evaggelistrias str. 19300 Aspropirgos, Greece, Tel: 0030 210 5575860-1
Fax: 0030 210 5575868, email: service@paramina.gr - website: www.paramina-compressors.com 51

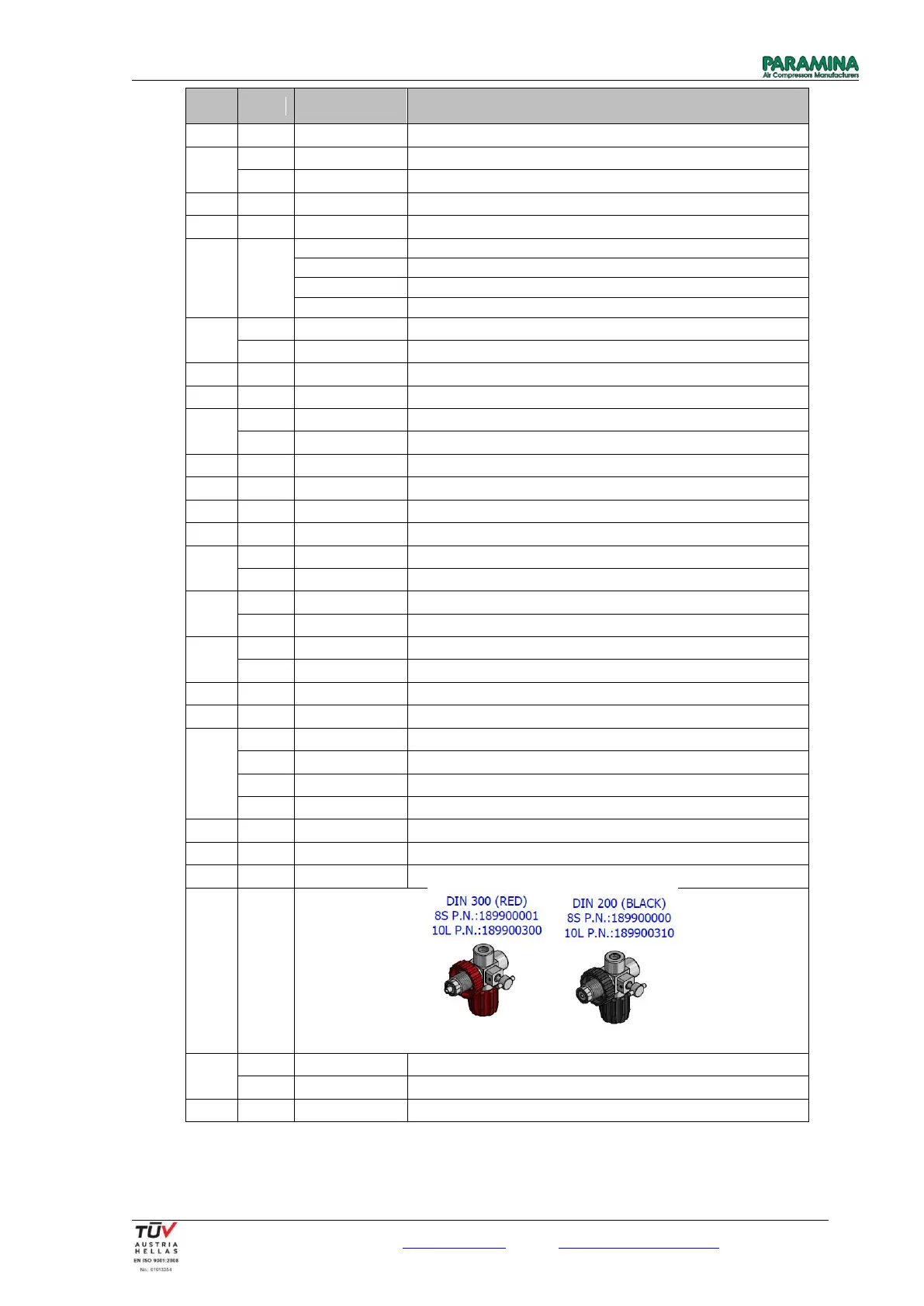

Item
Qty
Part Nr.
Description
4.1
1
211670021
Oil filling plug
4.2
1
109460302
Air Intake filter cartridge
1
109000000
Air intake filter complete
4.3
1
219000022
Safety valve 2nd - 100bar series @45bar
4.4
1
208501620
Condensate separator 2
nd
Stage (go to page 63 for drawing)
4.5*
1
208905700
BA filter Ø80x535
208905710
BA filter Ø78x560 w/o Bleed Valve
208905720
BA filter Ø78x560 c/w Bleed Valve
208611492
BA filter Ø110x495
4.6
2
190000080
Manual drain valve complete with seat
2
190008112
Manual drain valve’s seat
4.7
1
190000252
3
rd
stage aftercooler
4.8
1
190500610
1
st
stage safety valve (7bar)
4.9
1
219004552
3
rd
Stage Safety valve 250 bar **
1
219004522
3
rd
Stage Safety valve 350 bar **
4.10
1
104515032
Diesel engine 6,8 kW
4.11
4
128604022
Anti-vibration pads
4.12
1
219004572
Pressure Maintaining valve ***
4.13
1
190000250
2
nd
stage intercooler
4.14
1
122063162
1
st
Stage Manometer
1
140004602
1
st
Stage Manometer Flexible Hose
4.15
1
122063102
2
nd
Stage Manometer
1
140000571
2
nd
Stage Manometer Flexible Hose
4.16
1
122063422
3
rd
Stage Manometer
1
140000622
3
rd
Stage Manometer Flexible Hose
4.17
1
190000240
1
st
stage intercooler
4.18
4
105000510
Handle
4.19
1
****
V-Belt **** According to compressor’s serial number.
10
182451921
Cooling fan blades
1
136368001
Flywheel
1
105009002
Fan guard set
4.20
1
104900001
Battery
4.21
1
186025102
Air Intake Flexible Pipe 2m
4.22
1
104872200
Fumes Exhaust Pipe
4.23
2
SERVICE KIT PART NUMBER: 189900200, O-RING PART NUMBER: 127052702
4.24
2
140000080
Filling hose 1,2m 10L
2
140000921
Kevlar Filling hose 1,2m 8S
4.25
1
133000472
Support Spring + bolt set
* See all BA filter’s part numbers in page 26,30, 34 & 36
** Go to page 61 for service kit installation instructions
*** Go to page 62 for service kit installation instructions
