The Keypad 9-17
890CS Common Bus Supply - Frames B & D; 890CD Common Bus Drive and 890SD Standalone Drive - Frames B, C & D

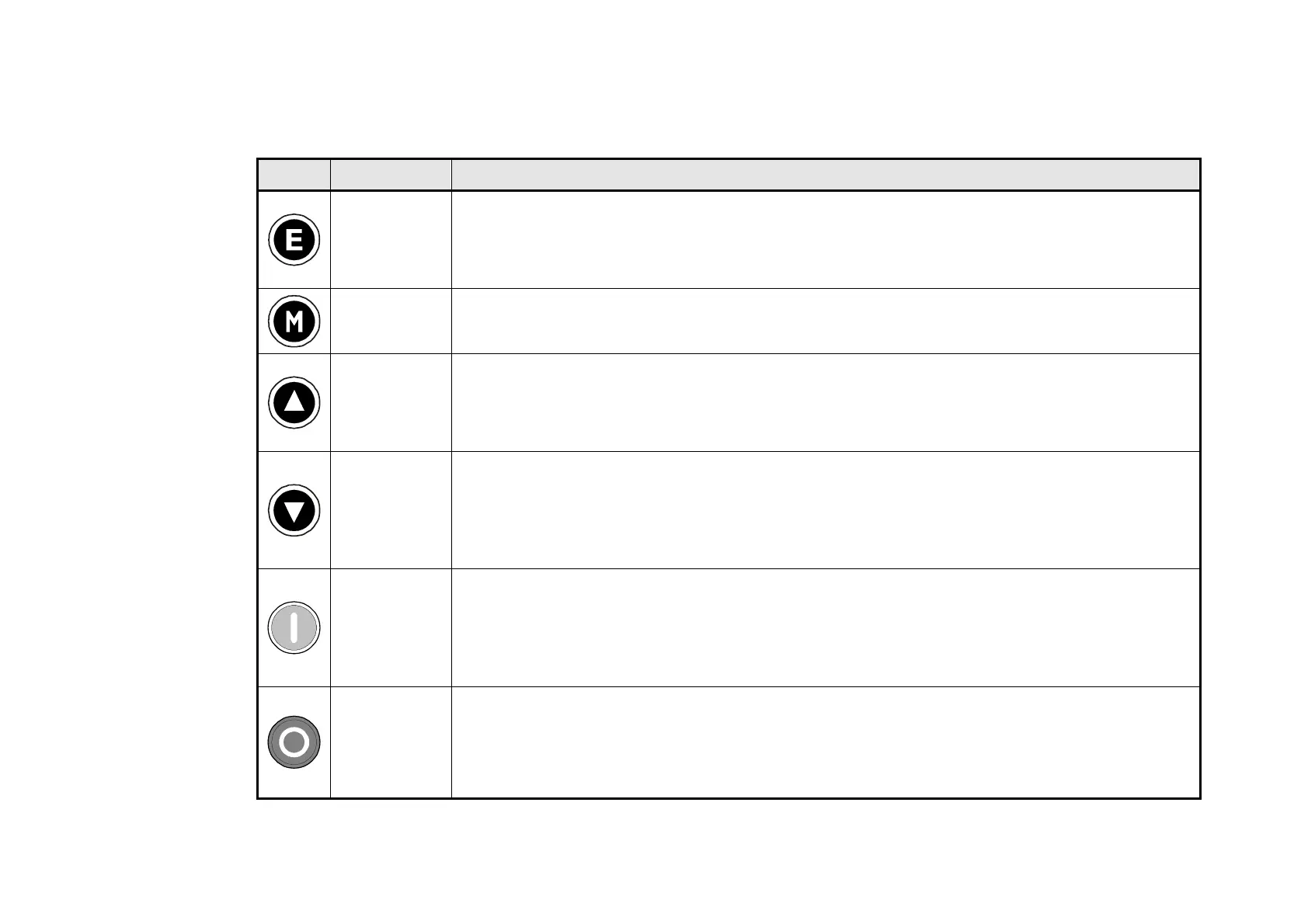

Control Key Definitions
Key Operation Description
Escape
Navigation
- Moves upwards through the list of parameters.
Parameter
- Increments the value of the displayed parameter.
Command Acknowledge
- Confirms action when in a command menu.
Menu
Navigatio
n - Moves downwards through the list of parameters.
Parameter
- Decrements the value of the displayed parameter.
Increment
Navigation
- Displays the previous level’s Menu.
Parameter
- Returns to the parameter list.
Trip Message
- Clear the Trip or Error message from the display.
Decrement
Navigation
-
Displays the next Menu level, or the first parameter of the current
Menu.
Parameter
- Allows a writable parameter to be modified (this is indicated by →
appearing on the left of the bottom line).
Run
Control
- Runs the motor at a speed determined by the LOCAL SETPOINT or
REMOTE SETPOINT parameter.
Trip Reset
- Resets any trips and then runs the motor as above. Only operates
when the drive is in Local Start/Stop (Seq) Mode.
Stop
Control
- Toggles between Remote and Local Mode for both Start/Stop (Seq)
and Speed Control (Ref). When toggling, the display automatically goes to the
relevant SETPOINT screen, and the SETPOINT (LOCAL) screen will have the s
and t keys enabled to alter the setpoint.
