Parker 6901 - Assembly Procedure

The Keypad 9-57
890CS Common Bus Supply - Frames B & D; 890CD Common Bus Drive and 890SD Standalone Drive - Frames B, C & D
Assembly Procedure

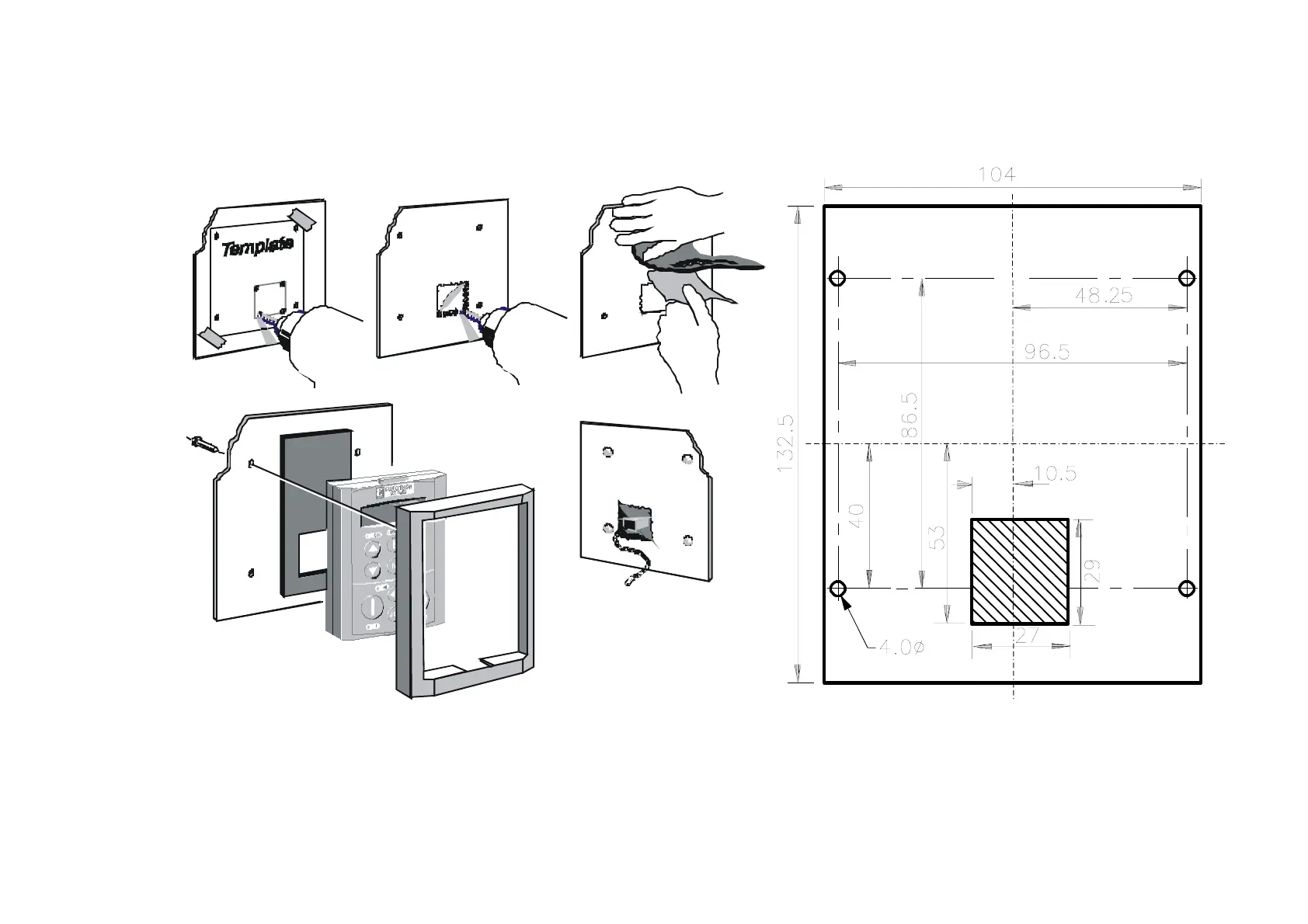

Figure 9.1 Mounting Dimensions for the Remote-Mounted 6901 Keypad
mm
Template
2 3
To Keypad Port
5
1
4
