The Keypad 9-29
890CS Common Bus Supply - Frames B & D; 890CD Common Bus Drive and 890SD Standalone Drive - Frames B, C & D
POWER BOARD (6511 keypad)
s
E
PROG
HOLD
M
E

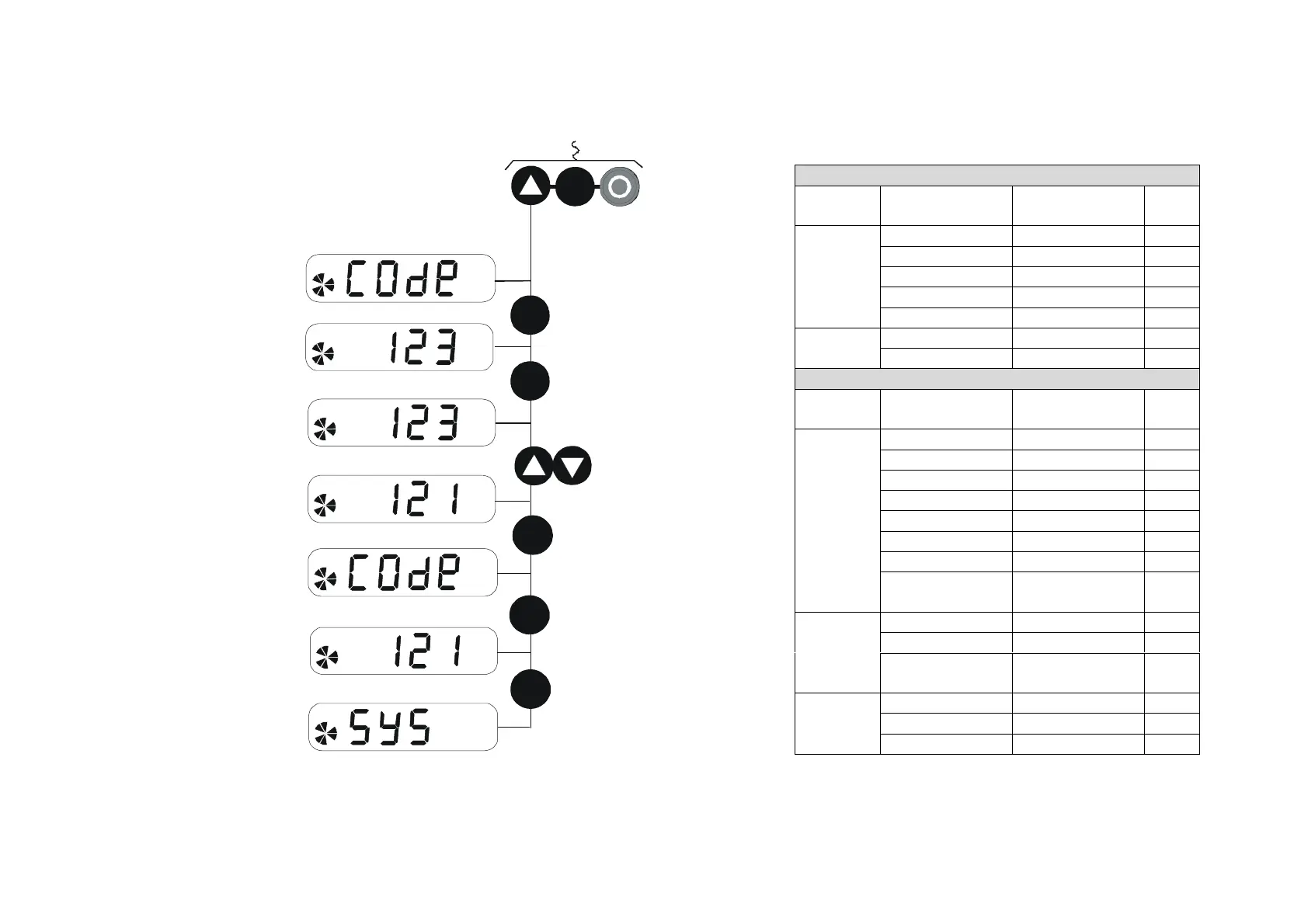

Hold down the keys opposite:
-
Power-up the drive, continue
to hold for at least 2 seconds
The power data is stored
M
Number flashes
For example
CODE flashes
E
Now accepted
x
2
E
CD/SD 230Vac Units:
Size Model No.
Block 2
Rating Code
Frame B 1300B 0.75 HP/0.55kW 131
1550B 1.5 HP/1.1kW 132
1700B 2 HP/1.5kW 117
2110B 3 HP/2.2kW 118
2165B 5 HP/4.0kW 119
Frame C 2240C 7.5 HP/5.5kW 120
2300C 10 HP/7.5kW 121
CD/SD 400-500 Vac Units:
Size Model No.
Block 2
Rating Code
Frame B 1200B 0.75 HP/0.55kW 133
1350B 1.5 HP/1.1kW 134
1450B 2 HP/1.5kW 135
1600B 3 HP/2.2kW 122
2100B 5 HP/4.0kW 123
2120B 7.5 HP/5.5kW 136
2160B 10 HP/7.5kW 124
216SB
30% more peak
10HP/7.5kW 125
Frame C 2240C 15 HP/11kW 126
2300C 20 HP/15kW 127
230SC
30% more peak
20 HP/15kW 128
Frame D 2390D 25 HP/18.5kW 137
2450D 30 HP/22kW 129
2590D 40 HP/30kW 130
