parkfun Fusion - Checking the Controls; Spare Parts

11

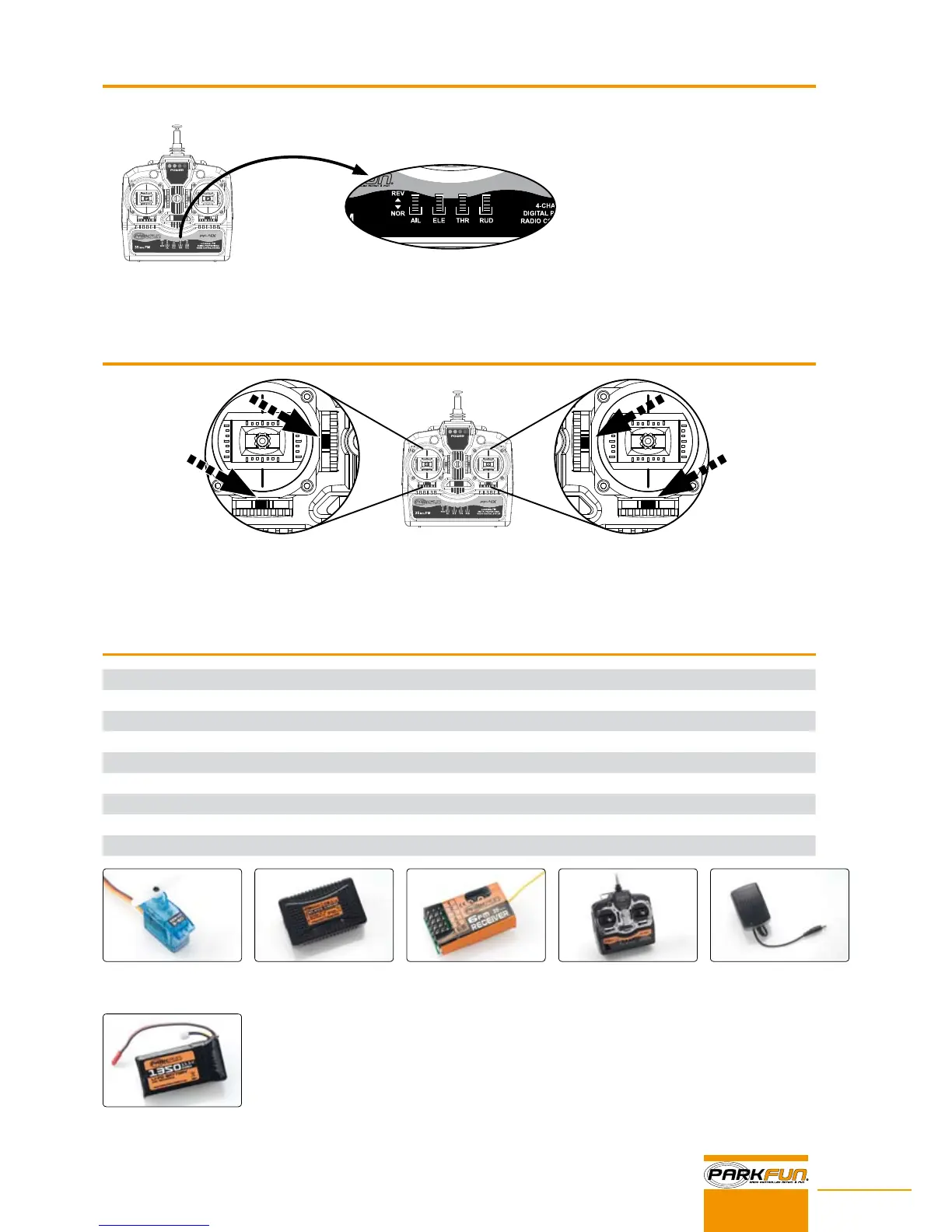

SPARE PARTS
PF-120-SP-017
Servo
PF-450-SP-209
Li-Po batterypack 11,1V - 1350 mAh
PF-400-35-M1 TX 35mHz mode1
PF-400-35-M2 TX 35mHz mode2
PF-400-36-M1 TX 36mHz mode1
PF-400-36-M2 TX 36mHz mode2
PF-400-40-M1 TX 40mHz mode1
PF-400-40-M2 TX 40mHz mode2
PF-400-41-M1 TX 41mHz mode1
PF-400-41-M2 TX 41mHz mode2
PF-400-72-M1 TX 72mHz mode1
PF-400-72-M2 TX 72mHz mode2
PF-405-SP-35 RX 35mHz
PF-405-SP-36 RX 36mHz
PF-405-SP-40 RX 40mHz
PF-405-SP-41 RX 41mHz
PF-440-005-EU
Power supply adapter (EU)
PF-440-005-UK
Power supply adapter (UK)
PF-440-005-UL
Power supply adapter (UL)
PF-440-005-AU
Power supply adapter (AU)
PF-440-005-AR
Power supply adapter (AR)
PF-440-005-SA
Power supply adapter (SA)
PF-440-001
2&3 cells balance charger
PF-205-SP-001 SCOUT FUSELAGE (NO ELECTRONICS)
PF-205-SP-002 SCOUT WING SET (INCL WING JOINER)
PF-205-SP-003 SCOUT ELEVATOR PANEL
PF-205-SP-004 SCOUT RUDDER PANEL
PF-205-SP-005 SCOUT BRUSHLESS MOTOR
PF-205-SP-006 SCOUT PROPELLER (2PCS) + SPINNER
PF-205-SP-007 SCOUT MOTOR COVER
PF-205-SP-008 SCOUT PLASTIC PARTS SET
PF-425-SP-018 SCOUT BRUSHLESS ESC 18A
EU: Europe • UK: United Kingdom • UL: South America • AU: Australia • AR: Indonesia • SA: South Africa
PF-4X
POWER
TRIMS ADJUSTMENT
To make small adjustments to compensate for unwanted inuences or imperfections in the control
system, you can use the trim levers next to and underneath the control sticks. These will offset the
neutral position of the stick and will allow you to hover the helicopter or fly the airplane without mak-
ing (too much) control inputs.
PF- 4X
POWER
PF-4X
POWER
Check if the controls move as indicated on the drawing. Correct the movement direction if necessary
with the reverse switches on the bottom of the transmitter. Special attention is needed for users of
the 2 in 1 Flightbox when switching between airplane and helicopter.
PF- 4X
POWER
PF- 4X
POWER
CHECKING THE CONTROLS
