PF9700 Automated Hinge Gate
Basic Information:
All inputs are on the right hand side of the board as you look at it. ANY of these are easily configured, for example any
contact can be changed by a parameter from Normally Open to Normally Closed etc.
The board has 12/24/240 Volts available to power external devices.
The board has 3 outputs which are also easy to configure and as well can switch 12/24/240 Volts. The panel is
designed to be used with on-board “plug in” loop detectors.
Unused/Spare Contacts:
Terminals 61/62 (Input 8)

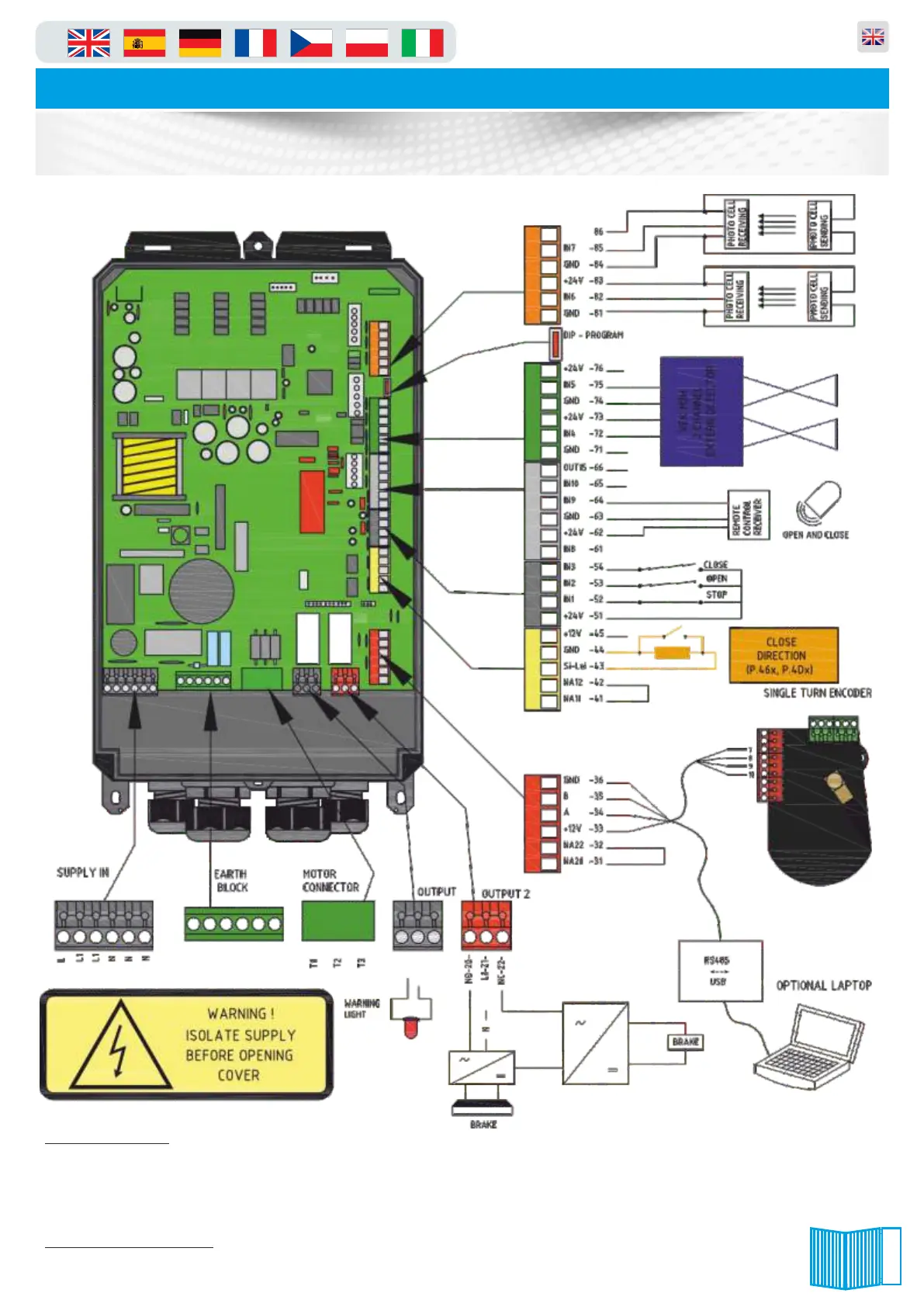

Wiring Diagram (Illustration)
