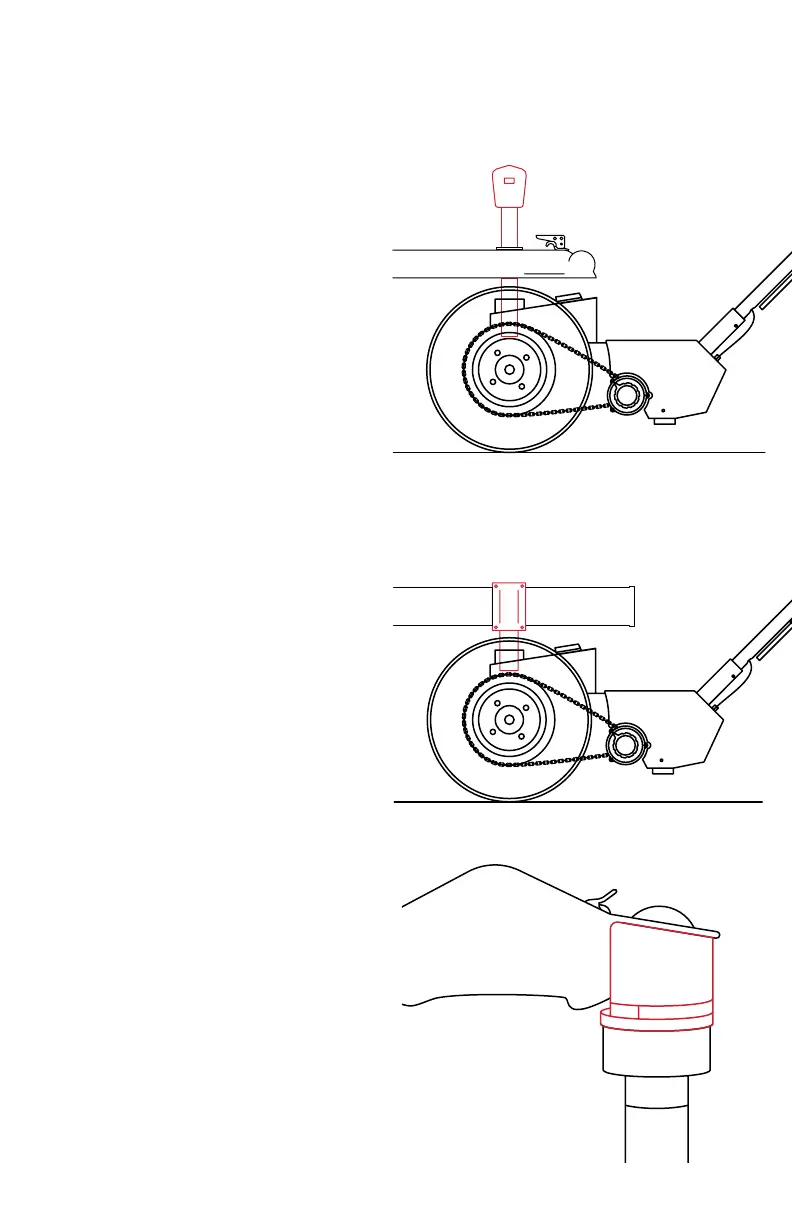

TRAILER JACK POST
Remove the Ball Mount Adapter.
Lower the Trailer Jack into the
Dolly’s Receiver Tube, following
the standard connection process.
The trailer should rest as close
to the Dolly’s Tires as possible to
reduce strain on the Jack Shaft.
TELESCOPIC
FRAME ADAPTER
Remove the Ball Mount Adapter.
Attach the Telescopic Adapter to
the Y section of the trailer frame.
Lower the Telescoping Pipe into
the Dolly, following the standard
connection process. Slide the
Adapter’s locking pin into place.
THRUST WASHER:
ATWOOD HITCH ADAPTER
With the Thrust Washer base
on the Ball Mount, interlock the
Atwood Adapter piece.
Thread the Hitch Ball and Tighten
as Normal. Hold the adapter in
place to prevent it from spinning.
ALTERNATIVE
CONNECTIONS
13
