Thank you for purchasing Parkmate’s CMD-14N camera. We are certain that our product will
give you trouble-free operation while providing you with a safety feature that enhances your
driving experience.
Our products, like most after-market safety enhanced devices, are to assist and aid the driver,
not to replace the manual function of the person operating the vehicle.
Although this is a visual aid and will allow you to view what is behind the vehicle, it does not
remove the responsibility of driving the vehicle from the driver. The legal responsibility and
safe driving practise remains with the driver at all times. You have purchased this product
with the understanding that its use is as an aid only. We highly recommend that you have
this product professionally installed to ensure that it will provide the functions it is set out to
perform.
CMD-14N

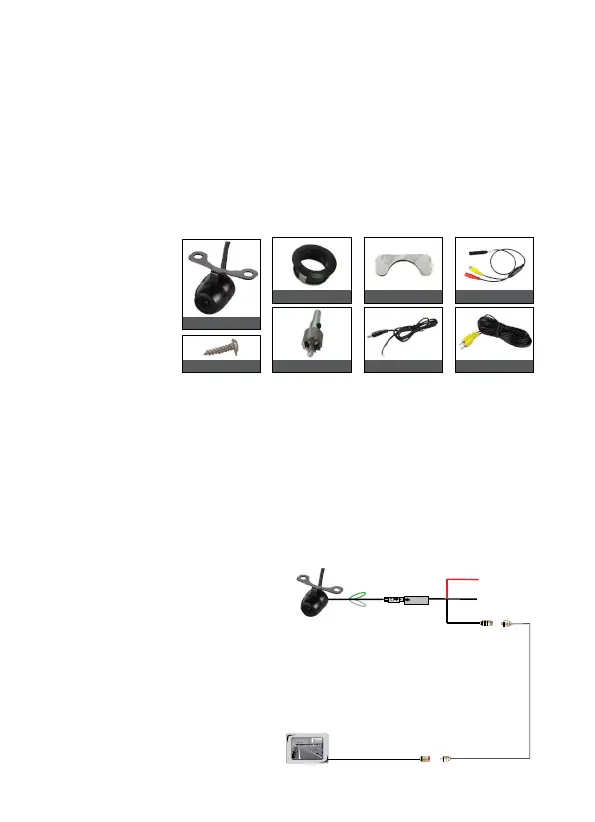

Component List:
Notes:
• Please read this manual carefully before using the product.
• This system is intended as an aid to safe reverse operation. Drivers must always use
extreme caution when operating a vehicle.
• Specifications subject to change without prior notice.
Warning:
• Do not disassemble the camera or cut the camera cable as this voids the warranty.
Disassembling the camera will compromise the waterproof seal.
• Do not remove the Directed warranty sticker as this voids warranty.
Technical Specifications: Wiring Diagram:
Signal System: NTSC
Horizontal Resolution: 550TVL
Minimum Illumination: 0.2Lux
Diagonal Angle: 170°
Waterproof Grade: IP67
Nominal Voltage: DC12V
Working Temp.: -20°C to 85°C
Front view option: CMD-14N functions as a rear view
camera standard and also supports front view. For front
view application, you can cut the thin WHITE wire near the
camera lead and restart power to see the image reversed.
Grid-Line option: CMD-14N has parking grid-lines as a
default. To remove grid-lines, cut the thin GREEN wire
near the camera lead. Power on and the grid-lines will
now be removed.
camera
bumper adaptor
hole saw
3M tape
power harnessscrews 6m video cable
splitter cable
RED to Reversing Light +
BLACK to Ground
Switching Wire
Monitor Video Input
video extension cable
