3
• Please perform tests after nishing installation to ensure
camera is working correctly.
• This camera is intended for use as an aid when reversing
your vehicle. Drivers must always use extreme caution when
operating a vehicle.
• Specications are subject to change without notice.
WARNING
• Do not disassemble the camera or cut the camera cable
as this voids the warranty. Disassembling the camera will
compromise the waterproof seal.
1.2 TECHNICAL SPECIFICATIONS:
Signal System: NTSC/ PAL
Horizontal Resolution: 800 TVL
Minimum Illumination: 0.1 – 0.5Lux
Diagonal Angle: 170°
Waterproof Rating: IP69K
Nominal Voltage: 12V/24V
Working Temperature: -30°C to 85°C

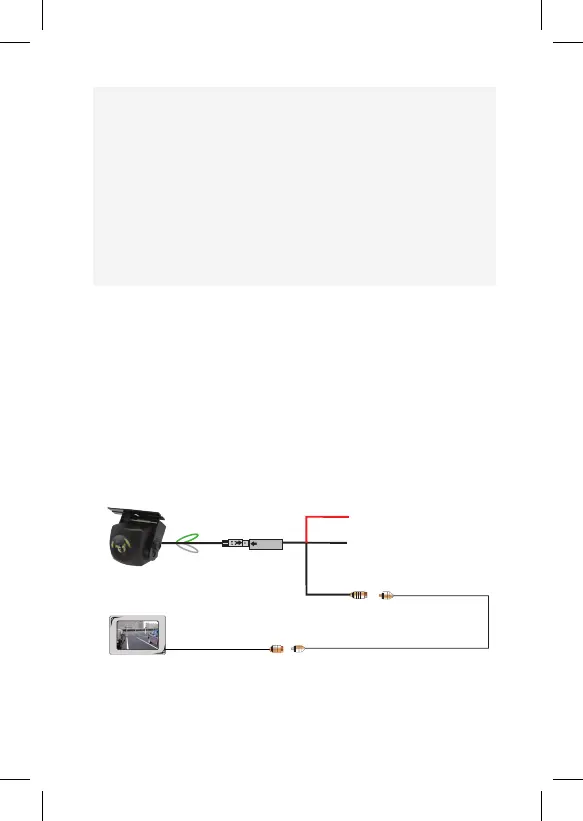

2.0 WIRING DIAGRAM
Front view option: PM-80DLR functions as a rear view camera as
standard. For front view application, please cut the thin WHITE wire
near the camera lead and restart power to see the image reversed.
RED to Reversing Light +
BLACK to Ground
Switching Wire
Monitor Video Input video extension cable
To Next Page
