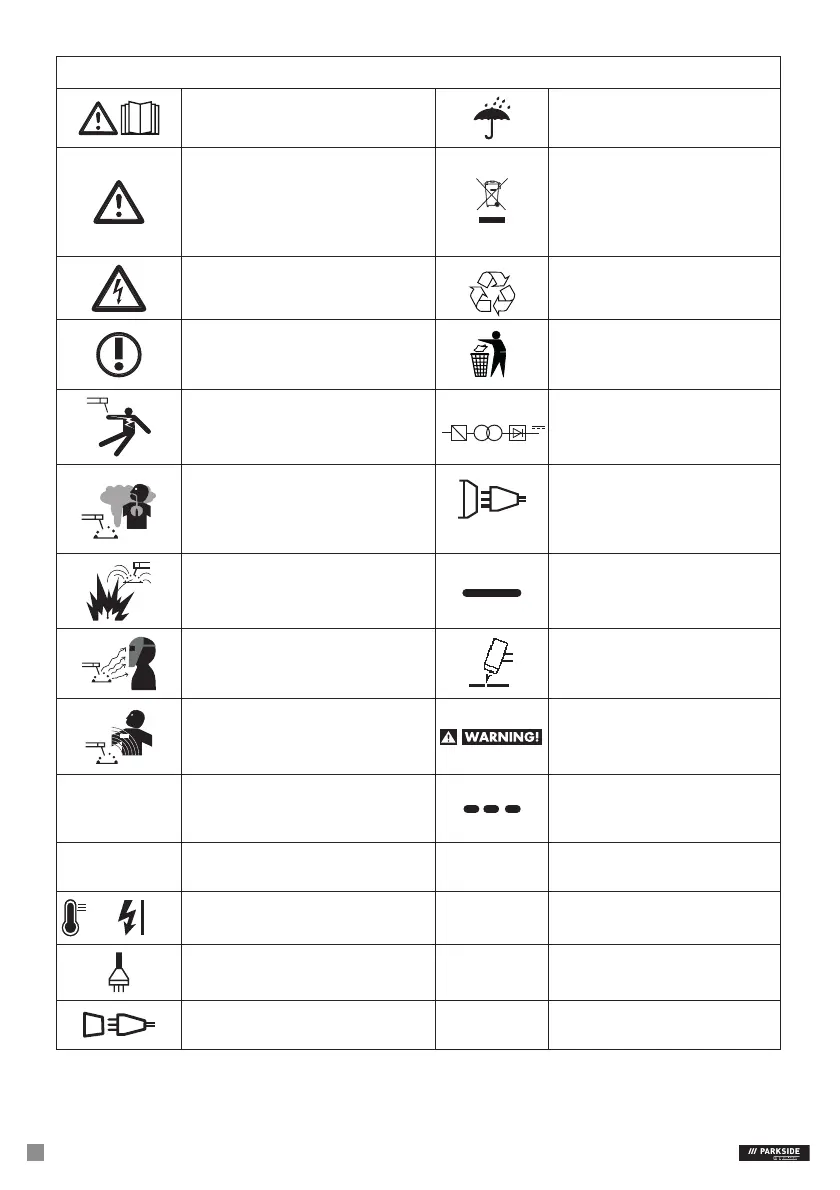

z Table of pictograms used
Attention!
Read the operating instructions!
Never use the device in the
open air or when it’s raining!
Attention: possible risks!
The adjacent symbol of a
crossed-out dustbin on the
wheels indicates that this
device is subject to the
2012/19/EU directive.
Caution! Risk of electric shock! Made from recycled material.
Important note!
Dispose of the device and
packaging in an environmen-
tally friendly manner!
Electric shock from the welding
electrode can be fatal!
1~
f1
f2
Static frequency converter-
transformer-commutator
Inhalation of welding fumes can
endanger your health.
1~ 50 Hz
Mains input; number of
phases and alternating current
symbol and rated value of the
frequency.
Welding sparks can cause an
explosion or fire.
Greatest rated value of the
welding time in continuous
mode t
ON (max)
Arc beams can damage your eyes
and injure your skin.
Cutting with the plasma cutter
MV
Electromagnetic fields can
disrupt the function of cardiac
pacemakers.
Risk of serious injury or death.
H
Insulation class
Greatest rated value of the
welding time in intermittent
mode Σ
t
ON
IP21S
Protection type
U
1
Rated value of the mains
voltage
HRD
Overheating protection and HRD
display
U
0
No-load voltage rated value
Indicator lamp –
mains connection.
I
2
Rated value of the cutting
current
AC – mains connection
I
1 max
Greatest rated value of the
mains current.
