Drawings

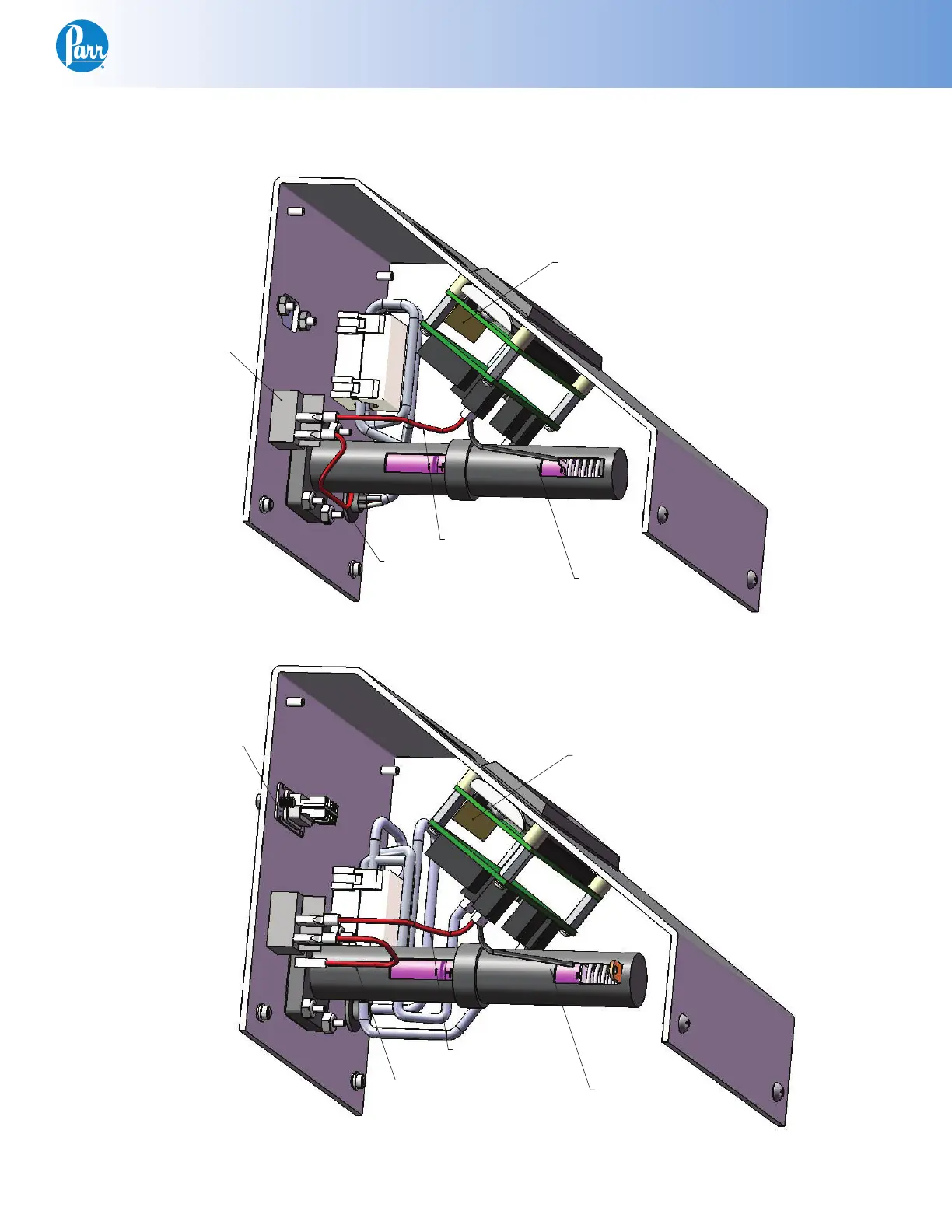

Internal Parts Views of 6775 Digital Thermometer
22GA, CSA RED WIRE
XA2201AB
2033E REF
22GA, CSA BLACK WIRE
ROCKER
SWITCH
22GA, CSA RED WIRE
HEADER, CONN FEMALE
2027E
XA2201AA
XA2201AA
Internal Parts Views of 6775A Digital Thermometer
22GA, CSA RED WIRE
XA2201AA
XA2201AA
22GA, CSA RED WIRE
XA2201AB
22GA, CSA BLACK WIRE
2033E REF
HEADER, CONN FEMALE
A2277E
RS232C HARNESS
Note: 2 – 1936E Lithium 3.6V batteries are used in the 6775/6775A Digital Thermometer.
