INSTALLATIONSGUIDE
Obs: För att spara dina parametrar i minnet bör du se till att nyckelns 12V och permanent 12V inte kastas om.
I så fall skulle du vara tvungen att göra om alla inställningarna.

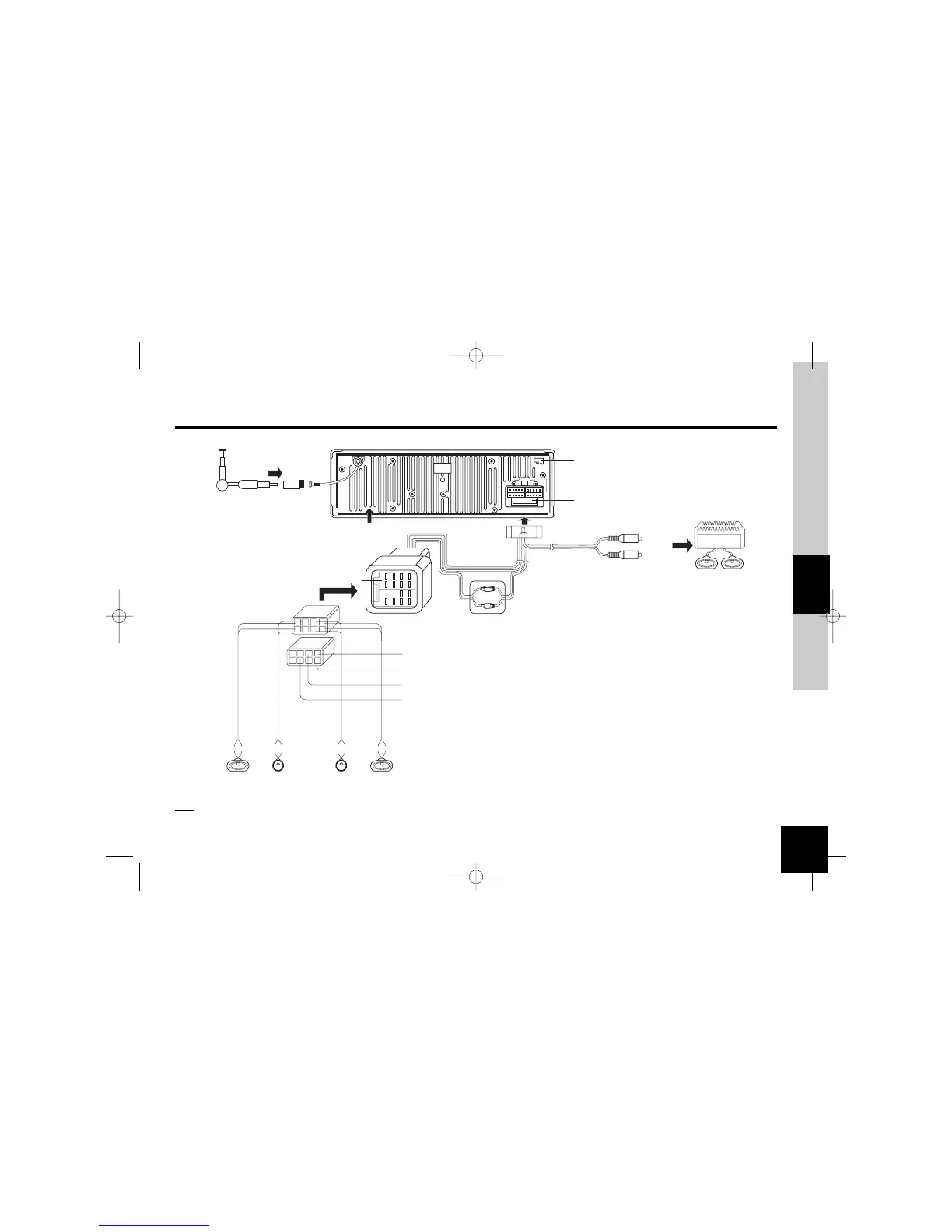

Rear Line-out (Gray)
R (Red)
Amplifier
Connector
ISO Connector
Red
Black
Blue
Yellow
L (White)
B
B
A
1357
2468
57
24 8
A
Ignition key
+ 12 V DC When ON/ACC
Fuse 15A
Ground Lead
Motor/Electric Antenna relay control Lead
Amplifier relay control Lead
To car battety (+)
Continuous + 12V DC
Purple Gray White Green
Gray/
Black
Stripe
White/
Black
Stripe
Green/
Black
Stripe
Purple/
Black
Stripe
Right Speaker
(Rear)
Right Speaker
(Front)
(+) (-) (+) (-)(+) (-)
Left Speaker
(Front)
Left Speaker
(Rear)
(+) (-)
External microphone
English
Svenska Dansk
Deutsch
Norsk
