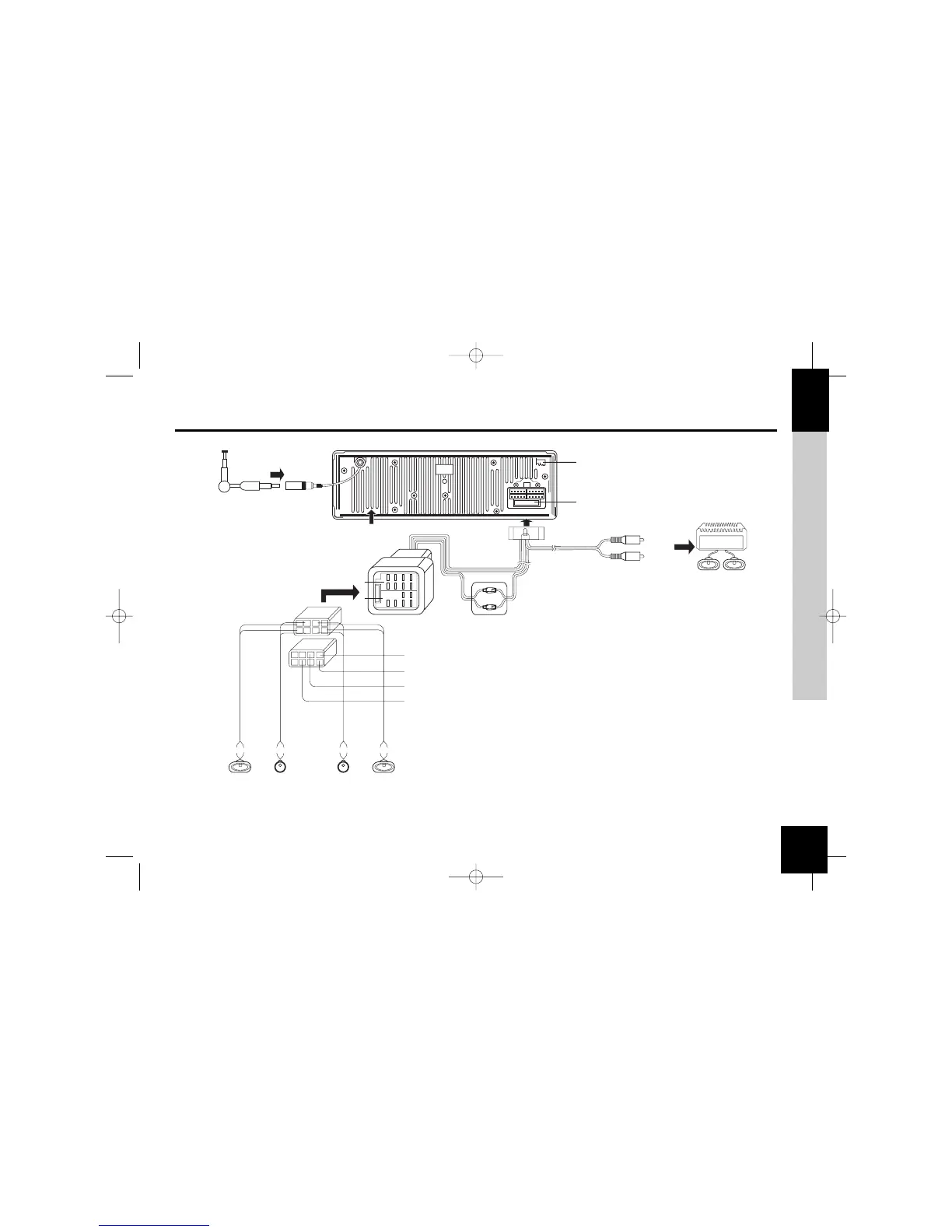

INSTALLATION GUIDE
Note: to ensure that your settings are memorised, check that the ignition 12 V and the constant 12 V supply are not reversed.
Otherwise, you will have to enter all your settings again.
Rear Line-out (Gray)
R (Red)
Amplifier
Connector
ISO Connector
Red
Black
Blue
Yellow
L (White)
B
B
A
1357
2468
57
24 8
A
Ignition key
+ 12 V DC When ON/ACC
Fuse 15A
Ground Lead
Motor/Electric Antenna relay control Lead
Amplifier relay control Lead
To car battety (+)
Continuous + 12V DC
Purple Gray White Green
Gray/
Black
Stripe
White/
Black
Stripe
Green/
Black
Stripe
Purple/
Black
Stripe
Right Speaker
(Rear)
Right Speaker
(Front)
(+) (-) (+) (-)(+) (-)
Left Speaker
(Front)
Left Speaker
(Rear)
(+) (-)
External microphone
