14

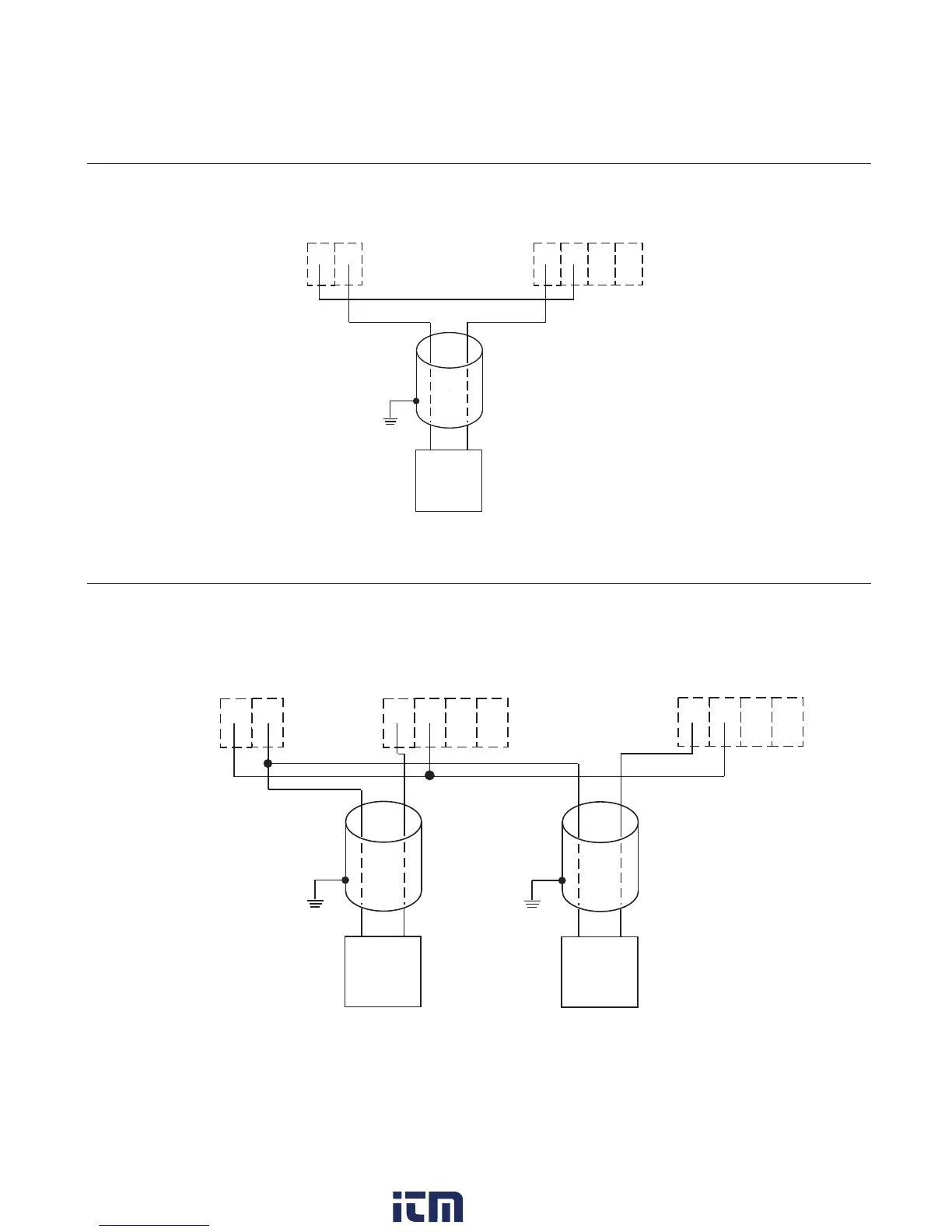

2.4.6 TRANSMITTER POWER SUPPLY WIRING
Connections are made as shown using TB10, terminal 2 as positive (+) and terminal 1 as negative (-). See Figure 2-9A for
one transmitter and Figure 2-9B for two transmitters (40mA DC maximum).
FIGURE 2-9A
FIGURE 2-9B
- +
1 2
+ -
1 2 3 4
TB10
TB2/TB3
+ -
Shield
Twisted
Pairs
Two Wire
Transmitters
- +
1 2
TB10 TB2
Shield
Twisted
Pairs
Two Wire
Transmitters
+ -
+ -
Two Wire
Transmitters
+ -
1 2 3 4
+ -
1 2 3 4
TB3
