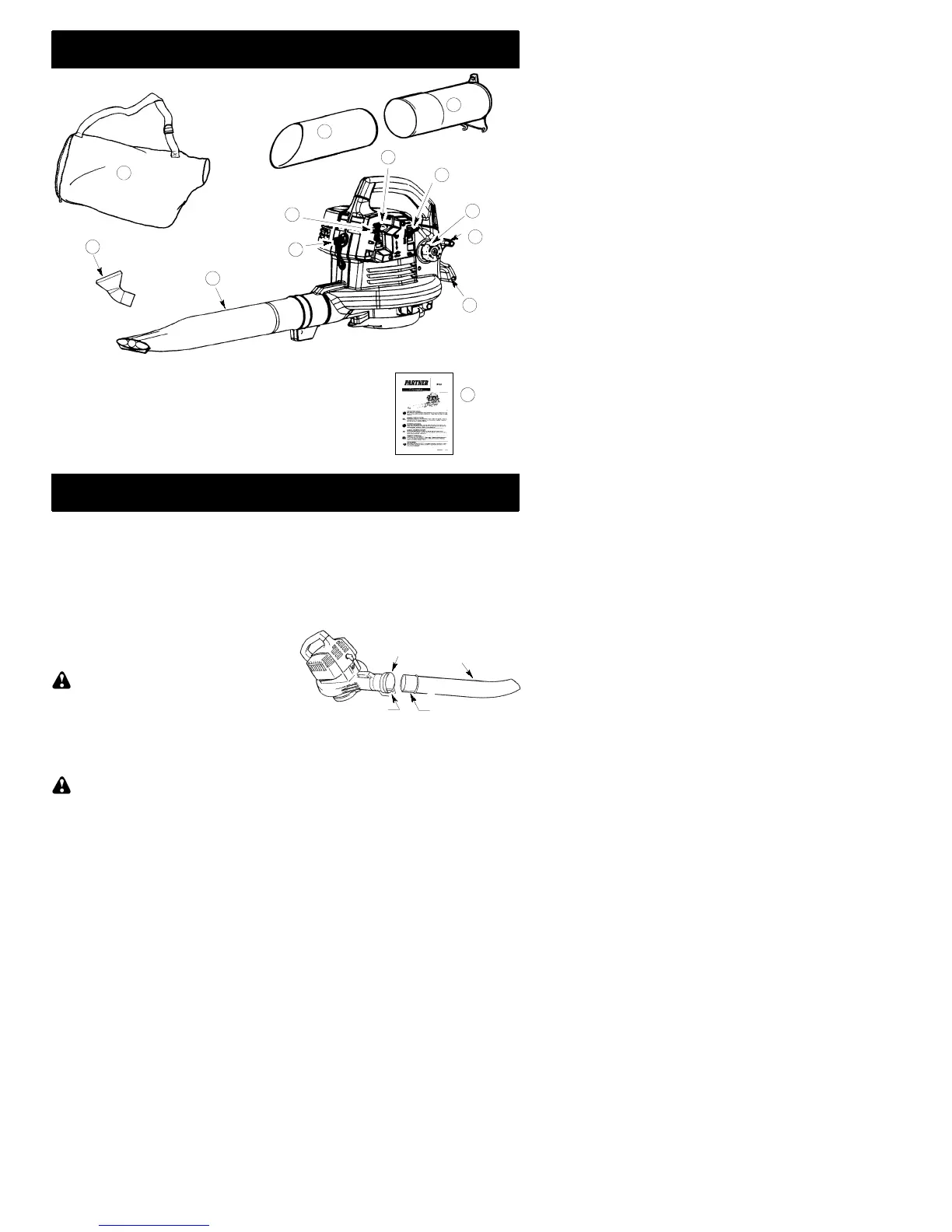

WHAT IS WHAT?
1. Throttle Lever 8. Blower tube
2. Primer button 9. Elbow tube
3. Choke lever 10. Vacuum bag
4. Fuel cap 11. Lower vacuum tube
5. Starter rope 12. Upper vacuum tube
6. Rear handle 13. Instruction manual
7. Spark plug
WHAT IS WHAT?
1
2
3
4
5
6
7
8
9
10
11
12
13
ASSEMBLY
CARTON CONTENTS
Check carton contents against the following
list.
S
Blower
S
Blower tube
S
Upper vacuum tube
S
Lower vacuum tube
S
Elbow tube
S
Vacuum bag
NOTE:
It is normal for the fuel filter to rattle
in the empty fuel tank.
ASSEMBLY
W ARNING:
Stop engine and be sure
the impeller blades have stopped turning be-
fore opening the vacuum inlet door or at-
tempting to insert or remove the vacuum or
blower tubes. The rotating blades can cause
serious injury. Always disconnect the spark
plug before performing maintenance or ac-
cessing movable parts.
W ARNING:
If received assembled,
repeatall steps to ensure your unit is properly
assembled and all fasteners are secure. Fol-
lowall safety informationin themanual andon
the unit.
D
A standard screwdriver is required for as-
sembly.
BLOWER TUBE ASSEMBLY
1. Align the rib on the blower tube with the
groove in the blower outlet; slide the tube
into place.
NOTE:
Knob must be loose enough to allow
blower tube to be inserted in blower outlet.
Loosen knob by turning counterclockwise.
Blower
T ube
Blower
Outlet
Rib
Groove
2. Secure the tube by turningthe knob clock-
wise.
3. Toremove thetube,turntheknobcounter-
clockwise to loosen the tube; remove the
tube.
VACUUM BAG ASSEMBLY
1. Open the zipper on the vacuum bag and
insert the elbow tube.
2. Push the small end of the elbow tube
through the small opening in the bag.
