the hidden side.
Do not weld on closed containers such as tanks, drums, or pipes,
unless they are properly prepared according to local regulations
Connect work cable to the work as close to the welding area as
practical to prevent welding current from travelling along, possibly
unknown paths and causing electric shock, sparks, and re hazards.
Wear oil-free protective garments such as leather gloves, heavy
shirt, cu󰀪ess trousers, high shoes, and a cap. Remove any
combustibles, such as a butane lighter or matches, from your person
before doing any welding.
FLYING METAL can injure eyes.
Welding, chipping, wire brushing, and grinding cause sparks and
ying metal. As welds cool they can throw o󰀨 slag. Wear approved
safety glasses with side shields even under your welding helmet.
BUILD UP OF GAS can injure or kill.
Shut o󰀨 shielding gas supply when not in use. Always ventilate
conned spaces or use approved air-supplied respirator.
HOT PARTS can cause severe burns.
Do not touch hot parts with bare hands.
Allow cooling period before working on gun or torch.
To handle hot parts, use proper tools and/or wear heavy, insulated
welding gloves and clothing to prevent burns.
MAGNETIC FIELDS can a󰀨ect pacemakers.
Pacemaker wearers keep away.
Wearers should consult their doctor before going near arc welding,
gouging, or spot welding operations.
NOISE can damage hearing.
Noise from some processes or equipment can damage hearing.
Wear approved ear protection if noise level is high.
Shielding gas cylinders contain gas under high pressure.
CYLINDERS can explode if damaged.
Protect compressed gas cylinders from excessive heat, mechanical
shocks, physical damage, slag, open ames, sparks, and arcs.
Install cylinders in an upright position by securing to a stationary
support or cylinder rack to prevent falling or tipping. Keep cylinders
away from any welding or other electrical circuits. Never drape a
welding torch over a gas cylinder. Never allow a welding electrode to
touch any cylinder. Never weld on a pressurized cylinder - explosion
will result. Use only correct shielding gas cylinders, regulators,
hoses, and ttings designed for the specic application; maintain
them and associated parts in good condition.
Turn face away from valve outlet when opening cylinder valve.
Use the right equipment, correct procedures, and su󰀩cient number
of persons to lift and move cylinders.
Read and follow instructions on compressed gas cylinders,
associated equipment, and Compressed Gas Association (CGA)
recommendations.
2.0 Product Description
This water cooling unit is designed to be integrated
with MIG and TIG welding equipment to provide cooling for water
cooled torches up to a rating of 500A. In addition the unit may be
used on small spot welding or other similar equipment up to a rating
of 60KVA .The small footprint allows the unit to be mounted on the
cylinder stand of most welding machines.

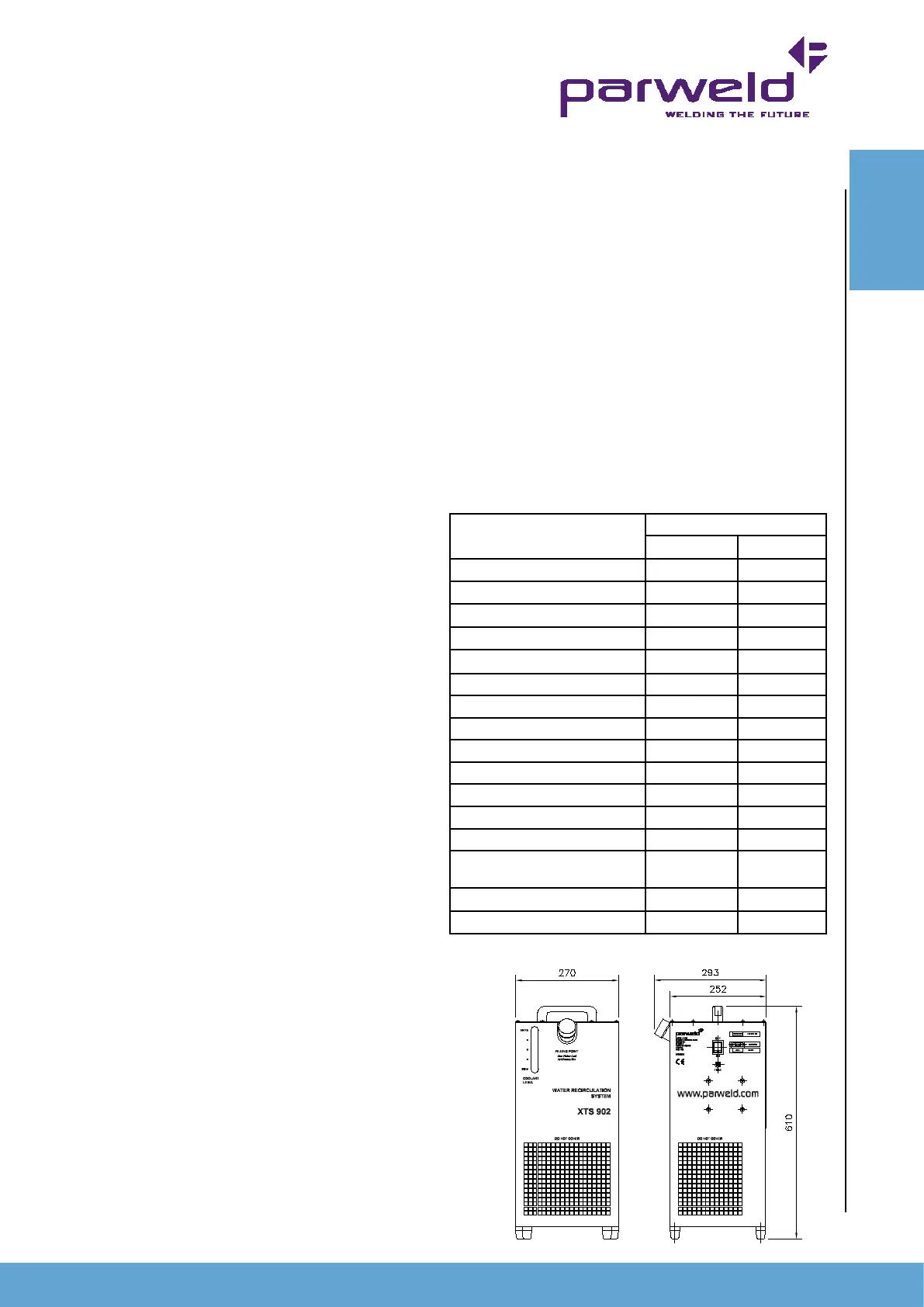

3.0 Technical
Specications
Machine Model
XTS-902 XTS-902F
Weight empty (kg)
19.5 20
Weight full (kg)
24.5 25
Tank capacity (litres)
5.0 5.0
Motor rating 230V (A)
3.0 3.0
Motor rating 110V (A)
6 6
Motor power (KW)
0.75 0.75
Motor Speed (rpm)
2900 2900
Pump max. pressure (Bar)
4.7 4.7
Pump max head (m)
48 48
Pump max. flow (lpm)
25 25
Heat exchanger rating (W)
900 900
Max. water temperature (
0
C)
60 60
Min. water temperature (
0
C)
4 4
Max ambient temperature
(
0
C)
40 40
Noise (dba)
74 74
Flow switch setting (lpm)
NA 1
