Current Balance and Accessory
Equipment
The SF-8607 Basic Current Balance
Your SF-8607 Basic Current Balance includes the
items shown in Figure 1:
• Main Unit,
• six Current Loop PC boards
• Magnet Assembly with six magnets.
Additional Equipment Needed:
In addition to the included equipment, you will need
the following items to perform the experiments in this
manual:
• DC power supply capable of supplying up to 5 A
such as the PASCO Model SF-9584.
• DC ammeter capable of measuring up to 5 A such
as the PASCO Model SB-9624.
• Balance capable of measuring forces with an accu-
racy of 0.01 gram mass equivalent. The balance
can be either a quadruple beam balance, such as
the PASCO Model SE-8725, or an electronic top
loading balance such as the PASCO Model SE-
8709.
• Lab stand such as the PASCO Model ME-9355.
• Hook-up wires with banana plug connectors such
as the PASCO Models SE-9750 (red) and SE-9751
(black).
Current Balance Accessory Unit
Magnet Assembly
Figure 2 Equipment Included with the SF-8608 Current
Balance Accessory.
Current Balance Accessory Unit
Magnet Assembly
Main Unit
Current Loops
Magnet Assembly

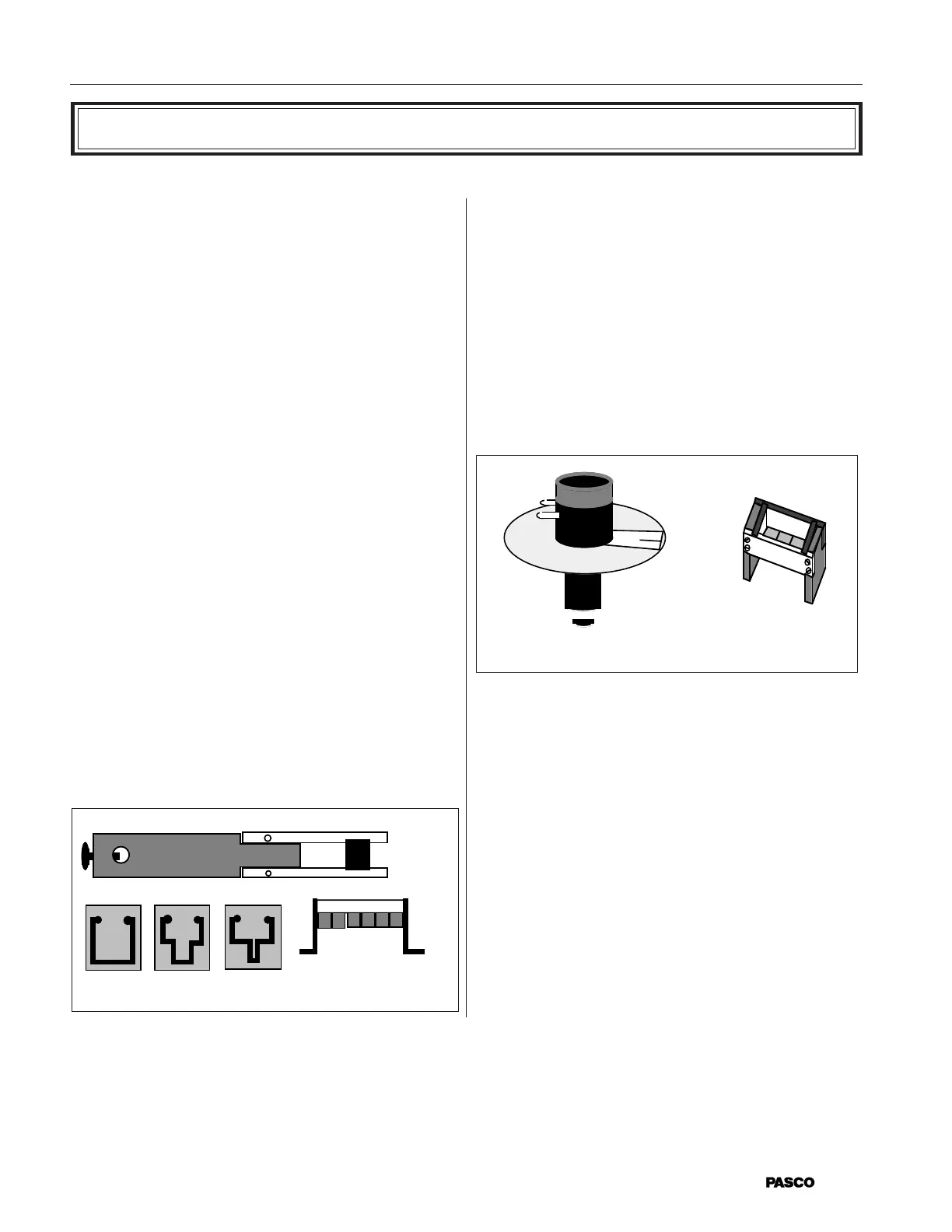

Figure 1 Equipment Included with the SF-8607 Basic
Current Balance.
The SF-8608 Current Balance Accessory
Your SF-8608 Current Balance Accessory includes the
items shown in figure 2:
• the Current Balance Accessory Unit
• Magnet Assembly.
Additional Equipment Needed:
• The Main Unit from the SF-8607 Basic Current
Balance plus additional equipment as listed above
under additional equipment for the SF-8607.
