~ SERVICE electra 3000 A
ANLEITUNG INSTRUCTION INSTRUCTION INSTRUCCION
/"
l)

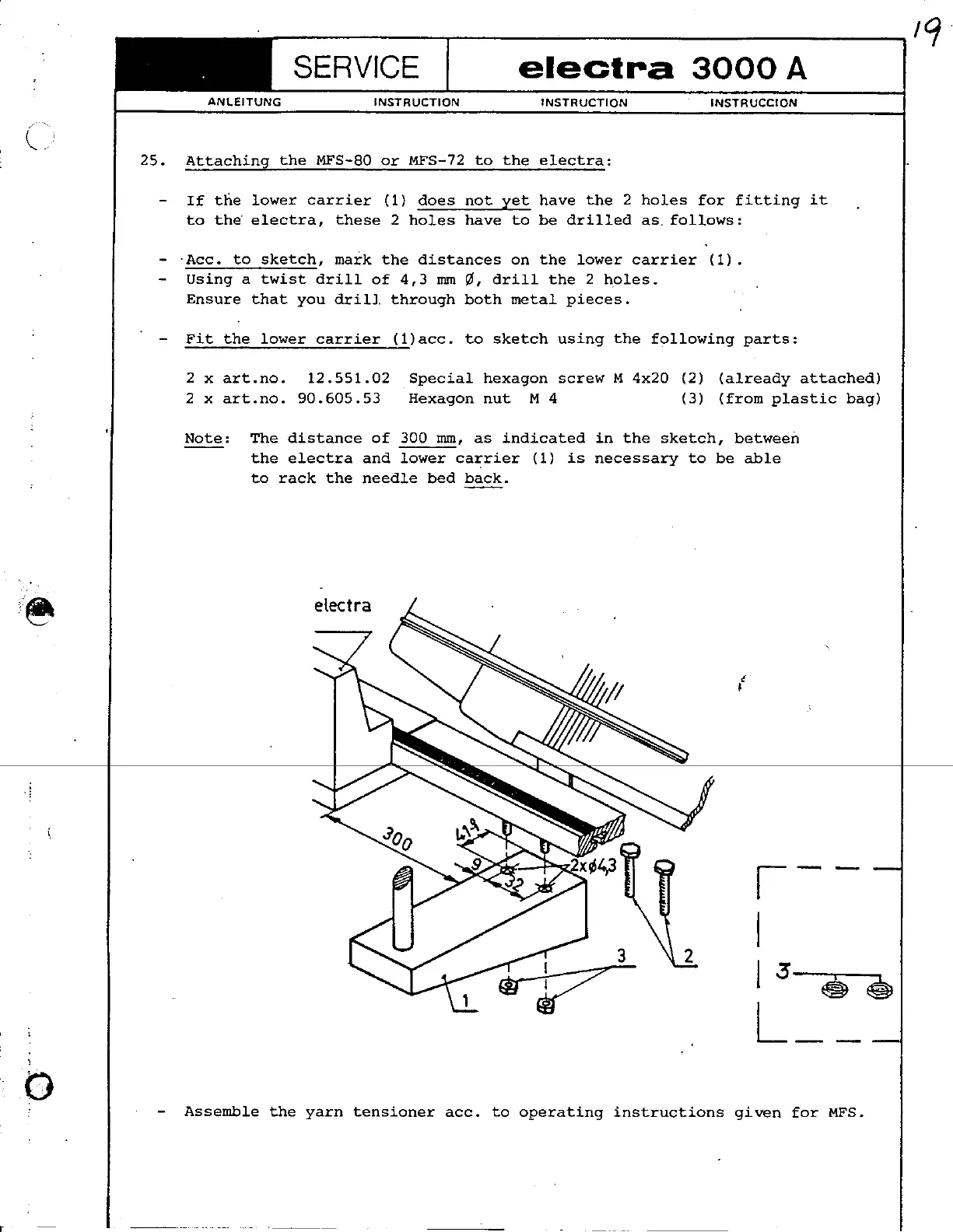

25. Attaching the MFS-80 or MFS-72 to the electra:
-If the lower carrier (1) does not yet have the 2 holes for fitting it
to the' electra, these 2 holes have to be drilled as follows:
-'Acc. to sketch, mark the distances on the lower carrier (1).
-Using a twist drill of 4,3 mm~, drill the 2 holes.
Ensure that you dril]. through both metal pieces.
-Fit the lower carrier (1)acc. to sketch using the following parts:
2 x art.no. 12.551.02 Special hexagon screw M 4x20 (2) (already attached)
2 x art. no. 90.605.53 Hexagon nut M 4 (3) (from plastic bag)
, ~: The distance of 300 mm, as indicated in the sketch, between
the electra and lower ca~rier (1) is necessary to be able
to rack the needle bed back.
it;,"':;,
~'~ electra
,
~'
.;
\
i--
I
I 3---~-- ~
, L_-
"t
G,C{
{~
; -Assemble the yarn tensioner acc. to operating instructions given for MFS.
