SERVICE electra 3000 A '
ANLEITUNG INSTRUCTION INSTRUCTION INSTRUCCION

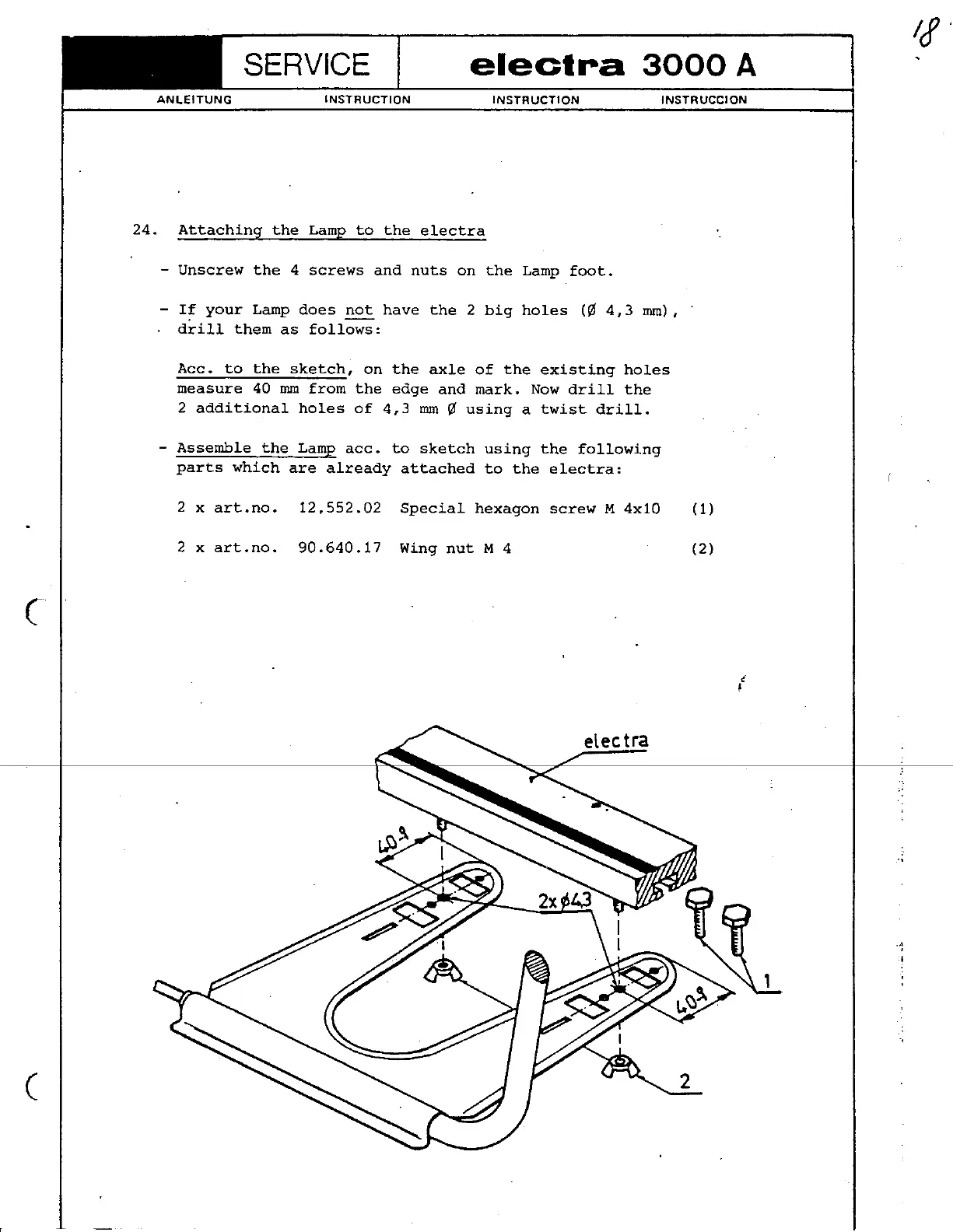

24. Attaching the Lamp to the electra
-Unscrew the 4 screws and nuts on the Lamp foot.
-I~ your Lamp does ~ have the 2 big holes (~ 4,3 mm), .
drill them as follows:
Acc. to the sketch, on the axle of the existing holes
measure 40 mm from the edge and mark. Now drill the
2 additional holes of 4,3 mm ~ using a twist drill.
-Assemble the Lamp acc. to sketch using the following
parts which are already attached to the electra: (
2 x art.no. 12.552.02 Special hexagon screw M 4x10 (1)
2 x art. no. 90.640.17 Wing nut M 4 (2)
