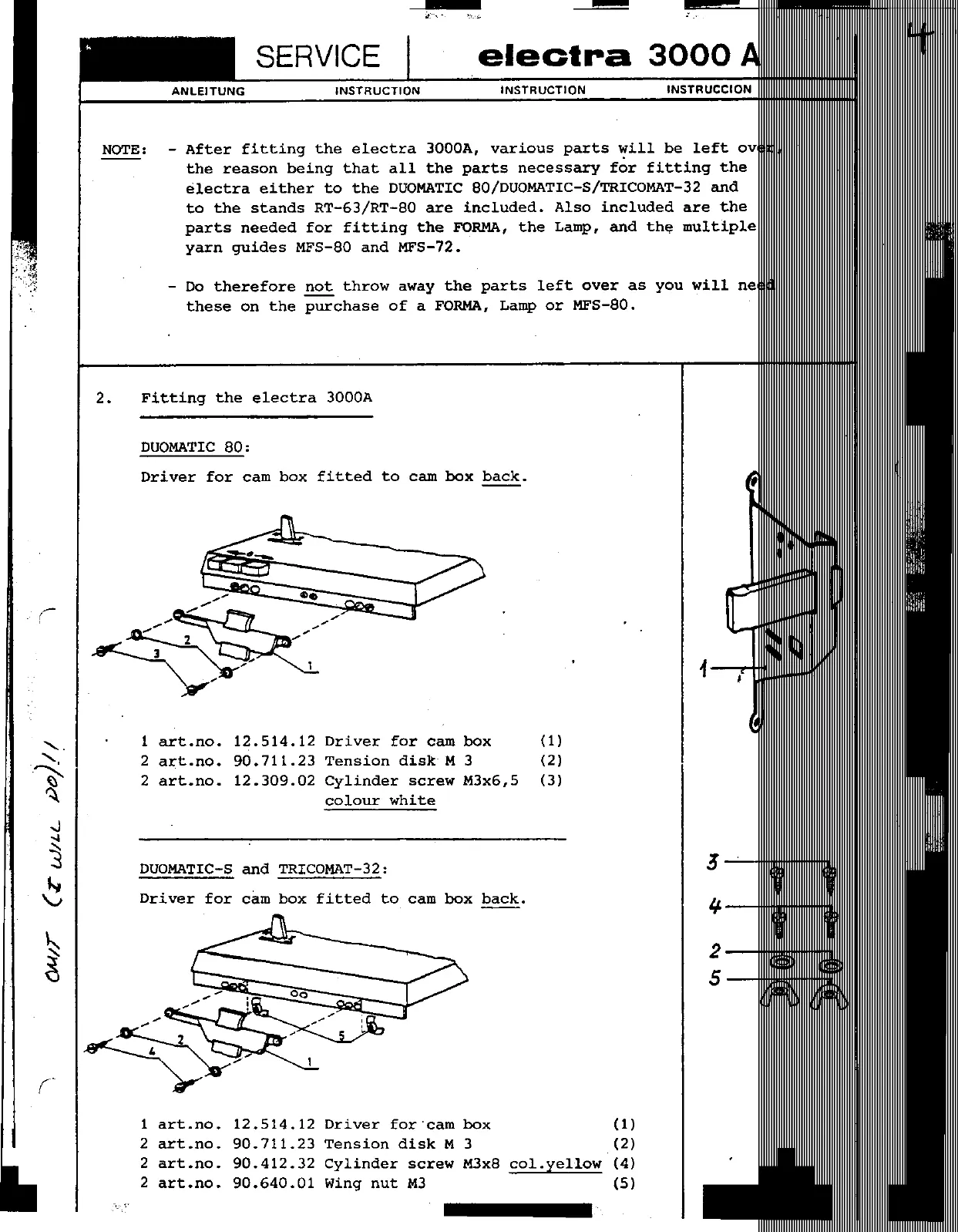

SERVICE elect ra 3000 A If I
ANLEITUNG INSTRUCTION INSTRUCTION INSTRUCCION
NOTE: -After fitting the electra 3000A, various parts will be left over,
the reason being that all the parts necessary for fitting the
electra either to the DUOMATIC 80/DUOMATIC-S/TRICOMAT-32 and
);coO
to the stands RT-63/RT-80 are included. Also included are the .'.",:~
parts needed for fitting the FORMA, the Lamp, and th~ multiple
yarn guides MFS-80 and MFS-72.
-Do therefore ~ throwaway the parts left over as you will need
these on the purchase of a FORMA, Lamp or MFS-80.
2. Fitting the electra 3000A
DUOMATIC 80:
Driver for cam box fitted to cam box back. (:
...'"
r ~~~\,tj!-~ '- ~~<- ..1
". 1 art.no. 12.514.12 Driver for cam box (1)
~ 2 art.no. 90.711.23 Tension disk M 3 (2)
~ 2 art. no. 12.309.02 Cylinder screw M3x6,5 (3)
~ colour white
~ \
-01
~ .
~ DUOMATIC-S and TRICOMAT-32: 3 Q3 ~
~ V ,
~ Driver for cam box fitted to cam box ~. ~ 1r 1r
~
~ ~ cS> @
!~:;~ 11iit~
~~:~~:;: :- L
,
1 art.no. 12.514.12 Driver forcam box (1)
2 art.no. 90.711.23 Tension disk M 3 (2)
2 art.no. 90.412.32 Cylinder screw M3x8 col.yeLlow (4) .
2 art.no. 90.640.01 Wing nut M3 (5)
.-
