-, rT --." j AN LEI TUNG INSTRUCTION INSTRUCTION INSTRUCCION q
t ~

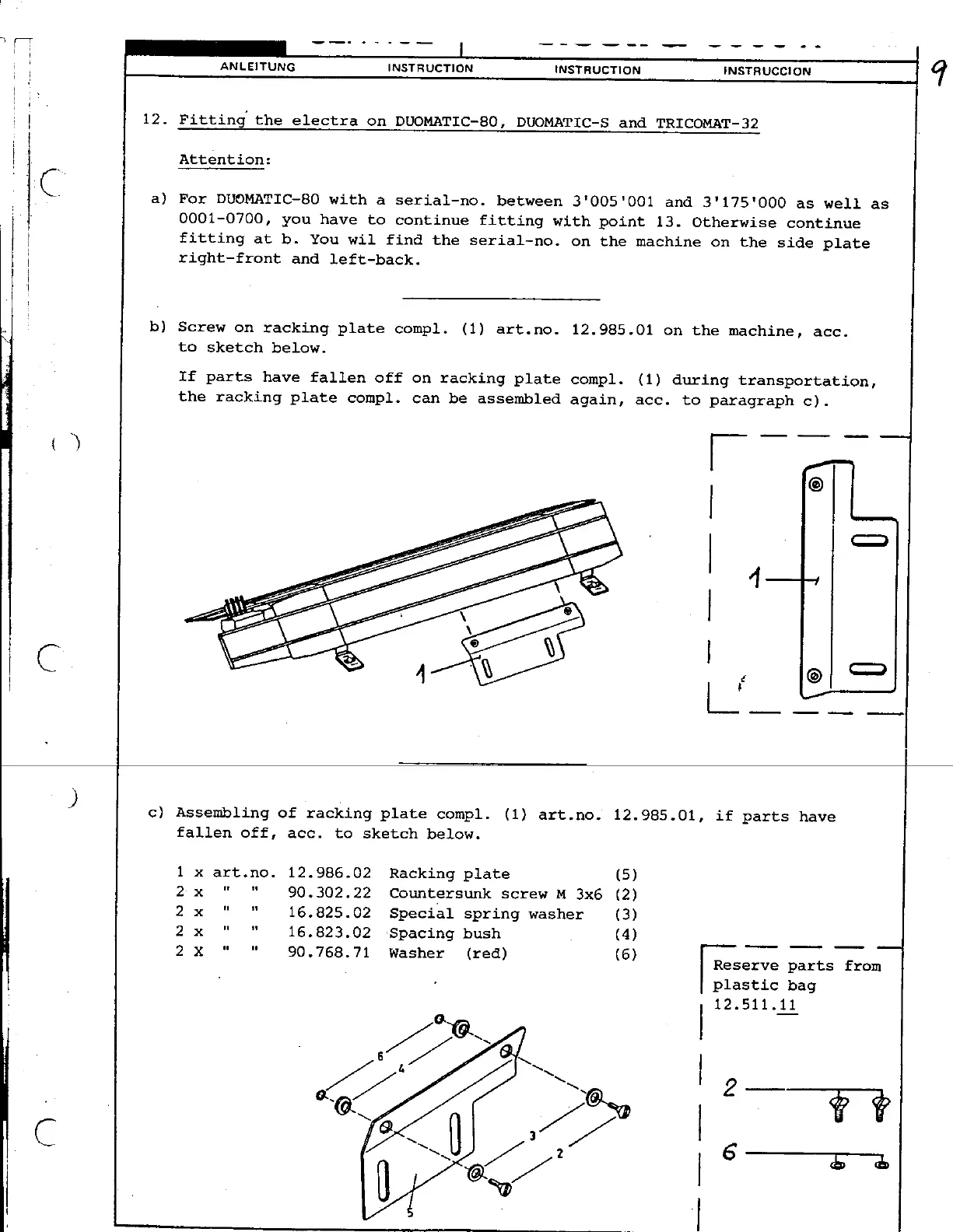

r 12. Fitting'the electra on DUOMATIC-80, DUOMATIC-S and TRICOMAT-32
I .1
.,
Attention:
~ a) ~~-:::::TIC-80 with a serial-no. between 3'005'001 and 3'175'000 as well as
0001-0700, you have to continue fitting with point 13. Otherwise continue
fitting at b. You wil find the serial-no. on the machine on the side plate
right-front and left-back.
b) Screw on racking plate compl. (1) art. no. 12.985.01 on the machine, acc.
to sketch below.
If parts have fallen off on racking plate compl. (1) during transportation,
the racking plate compl. can be assembled again, acc. to paragraph c).
, --- ~
, @
I c=:J
1
I
C\ I , @ -
L.:'--- -
) c) Assembling of racking plate compl. (1) art. no. 12.985.01, if parts have
fallen off, acc. to sketch below.
1 x art. no. 12.986.02 Racking plate (5)
2 x " " 90.302.22 Countersunk screw M 3x6 (2)
2 x " " 16.825.02 Special spring washer (3)
2 x " " 16.823.02 Spacing bush (4)
2 X " " 90.768.71 Washer (red) (6)
r: -- t - feserve par s rom
plastic bag
/~~" /12.511..!l
6 / '-.
I//
~ "' , 2-
r @:'-. G!, 0 3/.> I ,--",
~ " / 2 (; cC cC>
0 '(gX~/ I
__°'_-
