ANLEITUNG -_.~~ ~N~T:CTION ~I:S:U:'O~- -INSTRUCCIO~-' 10 ---
"

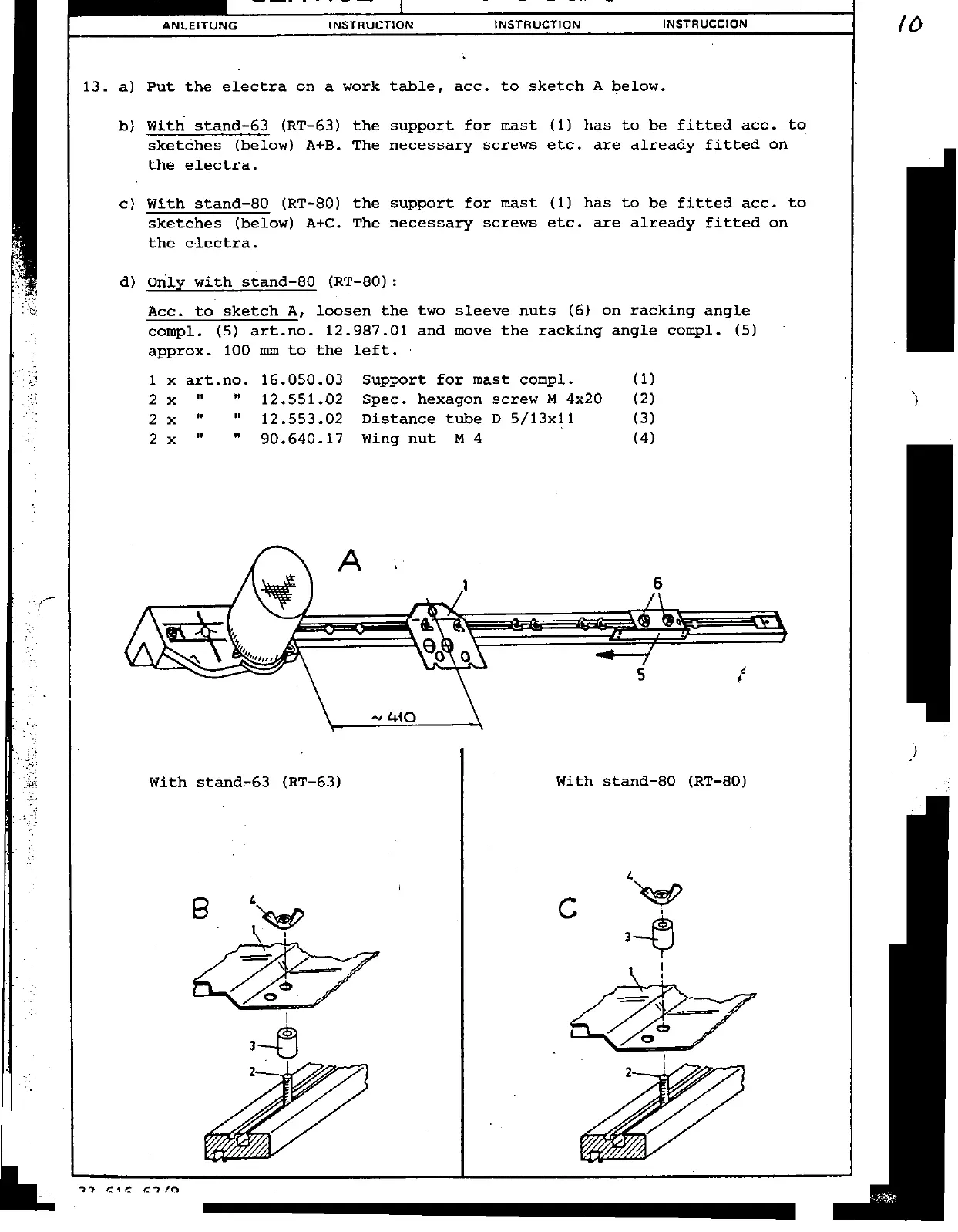

13. a) Put the electra on a work table, acc. to sketch A below.
b) With stand-63 (RT-63) the support for mast (1) has to be fitted acc. to
sketches (below) A+B. The necessary screws etc. are already fitted on
the electra.
c) With stand-80 (RT-80) the support for mast (1) has to be fitted acc. to
sketches (below) A+C. The necessary screws etc. are already fitted on
the electra.
T!JJ d) Only with stand-80 (RT-80):
Acc. to sketch A, loosen the two sleeve nuts (6) on racking angle
compl. (5) art.no. 12.987.01 and move the racking angle compl. (5)
approx. 100 rom to the left.
1 x art. no. 16.050.03 Support for mast compl. (1)
2 x ,. " 12.551.02 Spec. hexagon screw M 4x20 (2) )
2 x" " 12.553.02 Distance tube D 5/13x11 (3)
2 x" " 90.640.17 Wing nut M 4 (4)
A.'
6
r-
, .
..
5 *'
...,4iO
)
..
With stand~63 (RT-63) With stand-80 (RT-80)
,
l.
B l, I C V
.~ -~
1 3-y
:7;f ~
J-t:) 01
2~ 2~
')') 1:11: 1:')/0
