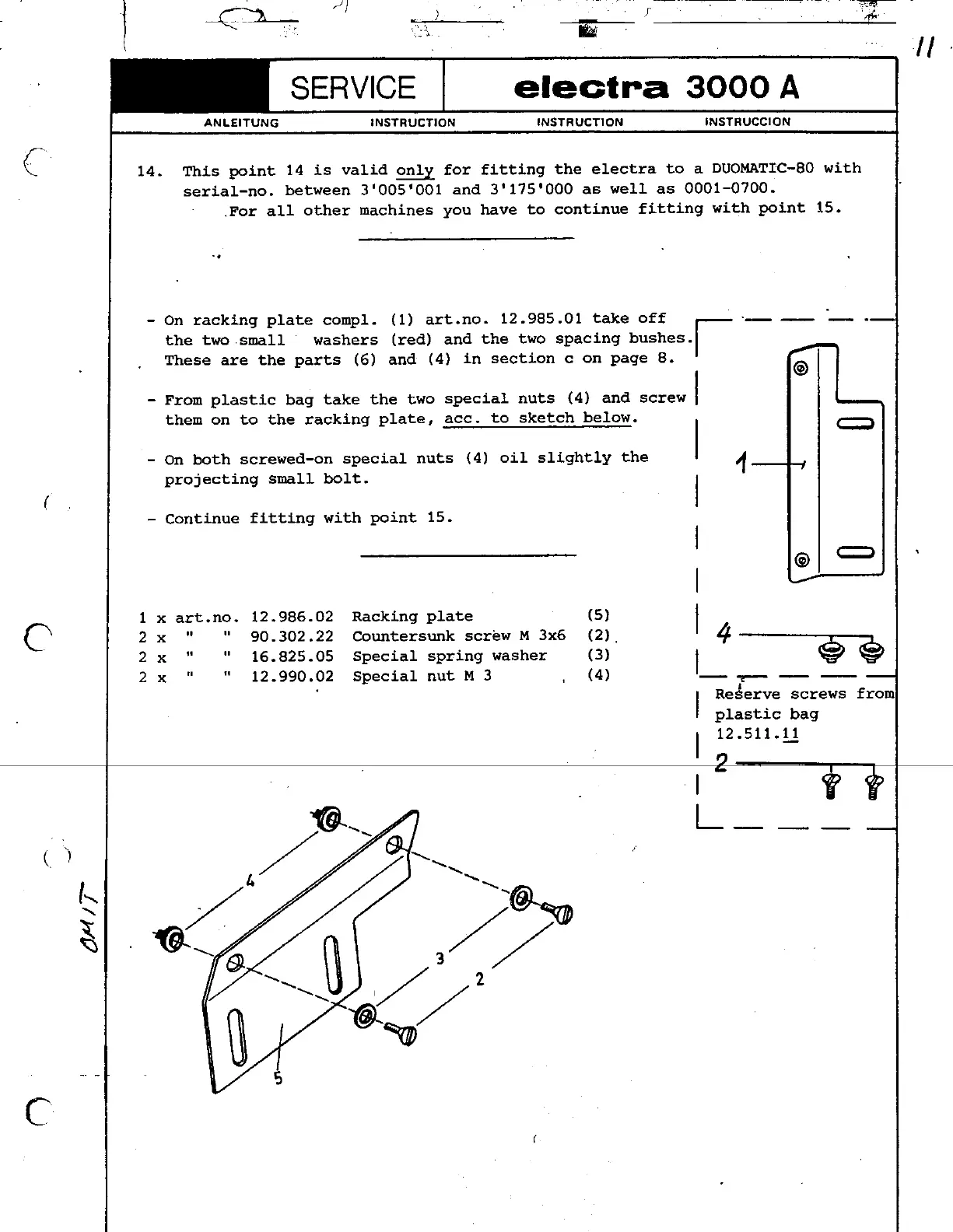

SERVICE electra 3000 A
ANLEITUNG INSTRUCTION INSTRUCTION INSTRUCCION
C 14. This point 14 is valid ~ for fitting the electra to a DUOMATIC-80 with
serial-no. between 3'005'001 and 3'175'000 as well as 0001-0700.
.For all other machines you have to continue fitting with point 15.
.,
-On racking plate compl. (1) art. no. 12.985.01 take off r---"--- the two. small washers (red) and the two spacing bushes.,
These are the parts (6) and (4) in section c on page 8. @
-From plastic bag take the two special nuts (4) and screw I
them on to the racking plate, acc. to sketch below. c::J
-On both screwed-on special nuts (4) oil slightly the I 1
(; projecting small bolt. I
-Continue fitting with point 15.
I
@ c::J \
I
1 x art.no. 12.986.02 Racking plate (5) I
0 2 x" " 90.302.22 Countersunk screw M 3x6 (2). 4 ~ ~
2 x" " 16.825.05 Special spring washer (3) I ~ ~
2 x" " 12.990.02 Special nut M 3 (4) t"
I Reserve screws from
plastic bag
I 12.511.!..!
I 2 ---if
L__-
( ) .'
0' c -
-
l~. """"""~
~ ~ 3/ /
2
C\
(
