SERVICE electra 3000 A
ANLEITUNG INSTRUCTION INSTRUCTION INSTRUCCION
C, \

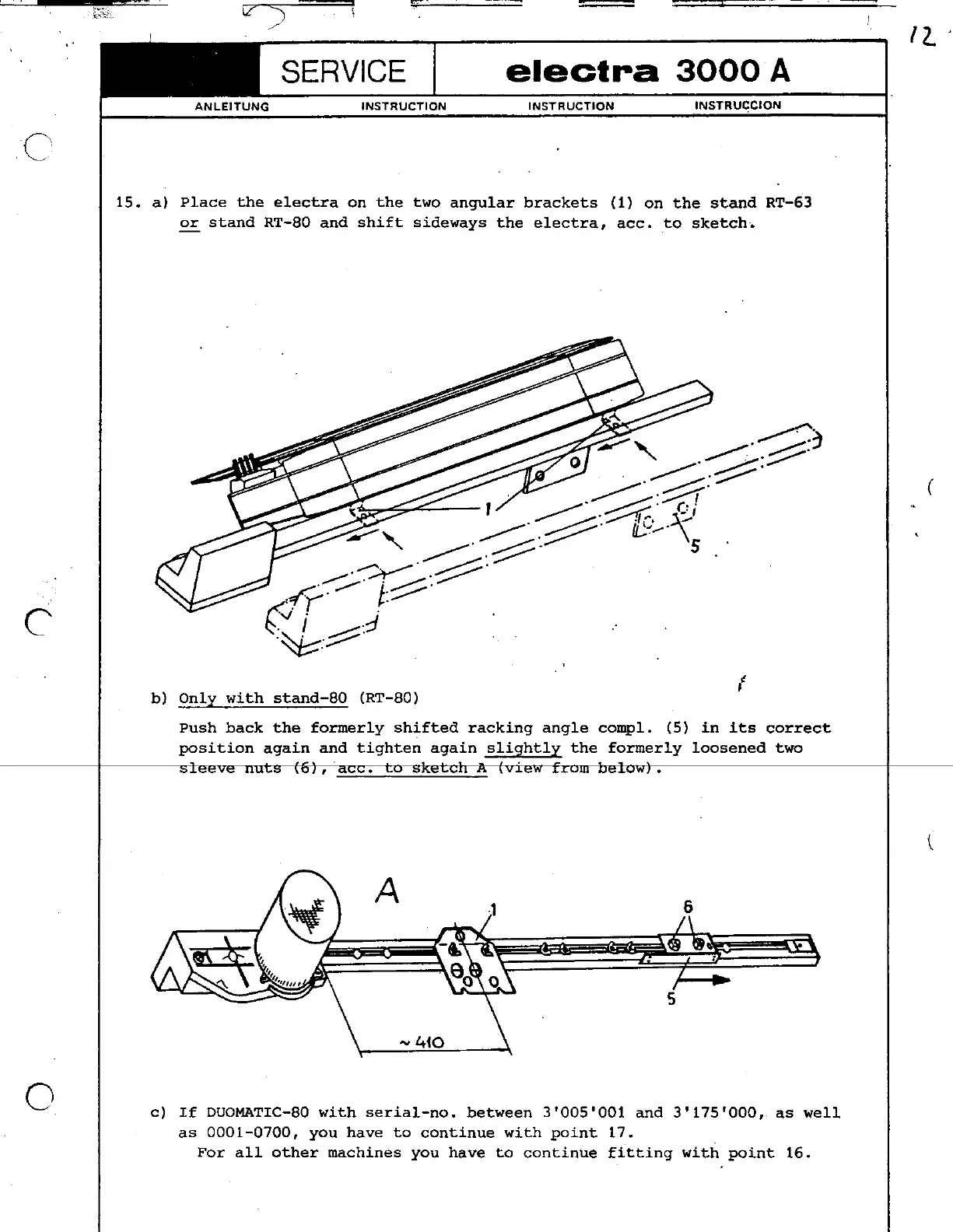

15. a) Place the electra on the two angular brackets (1) on the stand RT-63
~ stand RT-80 and shift sideways the electra, acc. to sketch..
~, ~.~~
0 ~ :::::::. .~:~ (
,.~::;;-r;r ~
.~ ~',~. A--
~" ~ ~~ ' \ '
'" ~ ::::::::. ,...,-- 5
~
.~~..~.
i,.;; ::::--- ..~.::::::: ," ~ .
t.--~
c .,: t<":'f " C., ~.':, i..} .
.~::::;::;.
.
'"
#
b) Only with stand-80 (RT-80)
Push back the formerly shifted racking angle compl. (5) in its correct
position again and tighten again slightly the formerly loosened two
sleeve nuts (6), acc. to sketch A (view from below).
{
A 6
.
5
'" 4iO
~ c) If DUOMATIC-80 with serial-no. between 3'005'001 and 3'175'000, as well
as 0001-0700, you have to continue with point 17.
For all other machines you have to continue fitting with point 16.
