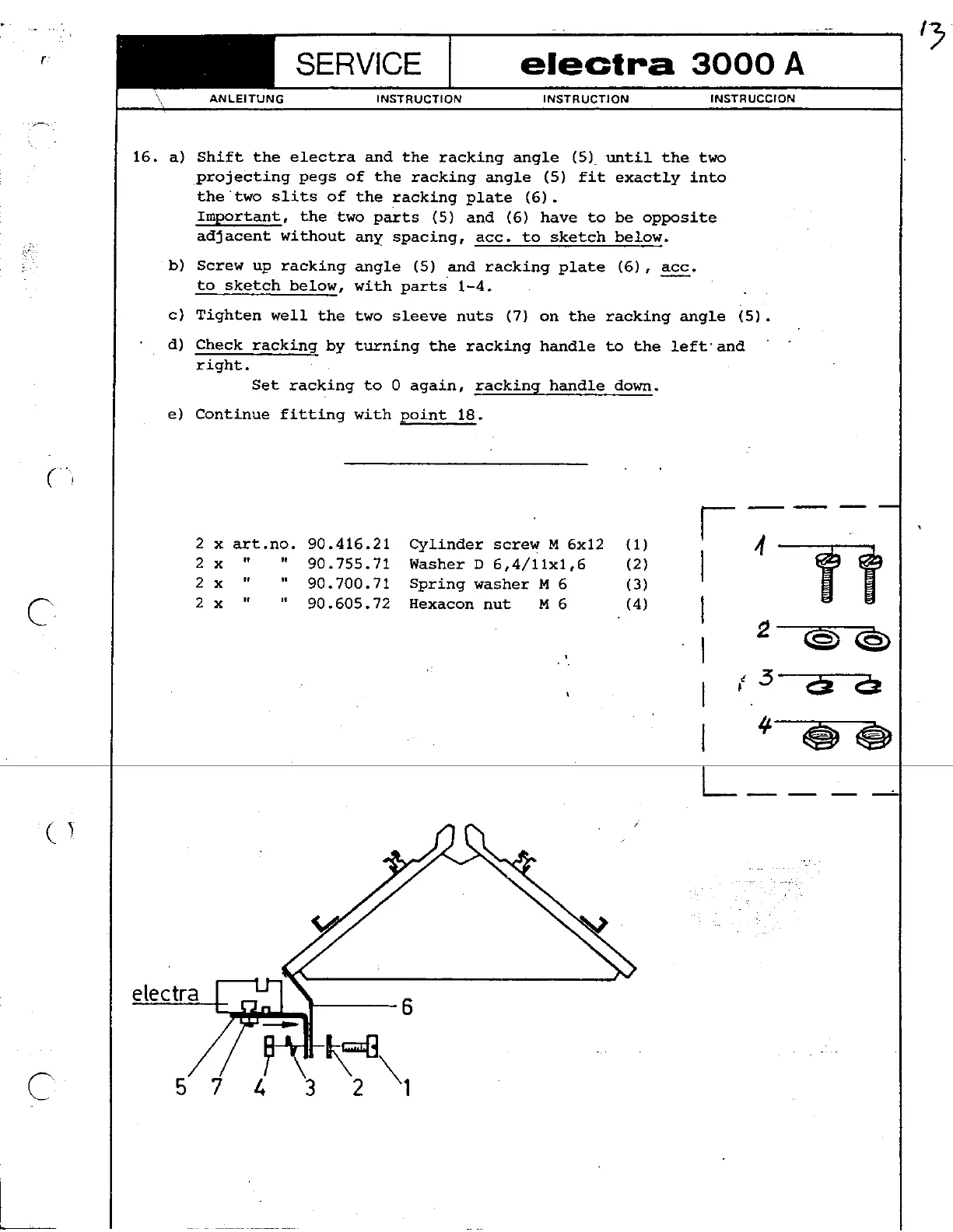

(.: SERVICE electra 3000 A
INSTRUCTION INSTRUCTION INSTRUCCION
16. a) Shift the electra and the racking angle (5). until the two
projecting pegs of the racking angle (5) fit exactly into
the 'two slits of the .racking plate (6).
Important, the two parts (5) and (6) have to be opposite
adjacent without any spacing, acc. to sketch below.
b) Screw up racking angle (5) and racking plate (6), ~.
to sketch below, with parts 1-4.
c) Tighten well the two sleeve nuts (7) on the racking angle (5).
d) Check racking by turning the racking handle to the left. and
right.
Set racking to 0 again, racking handle down.
e) Continue fitting with point 18.
(!
I--~ '
2 x art.no. 90.416.21 Cylinder screw M 6x12 (1) ~
~2 x" "90.755.71 Washer D 6,4/11xl,6 (2) I
2 x" " 90.700.71 Spring washer M 6 (3)
C' 2 x" " 90.605.72 Hexacon nut M 6 (4) I
,'. ., '2 @) @
,i \ I I'" 3 c:3 a
I "'--E~-~ ~
L ,-
( 1. -'
electra 6
~ '\ ,\=.f3
\C; 5 I. 3 2 1
-~~
