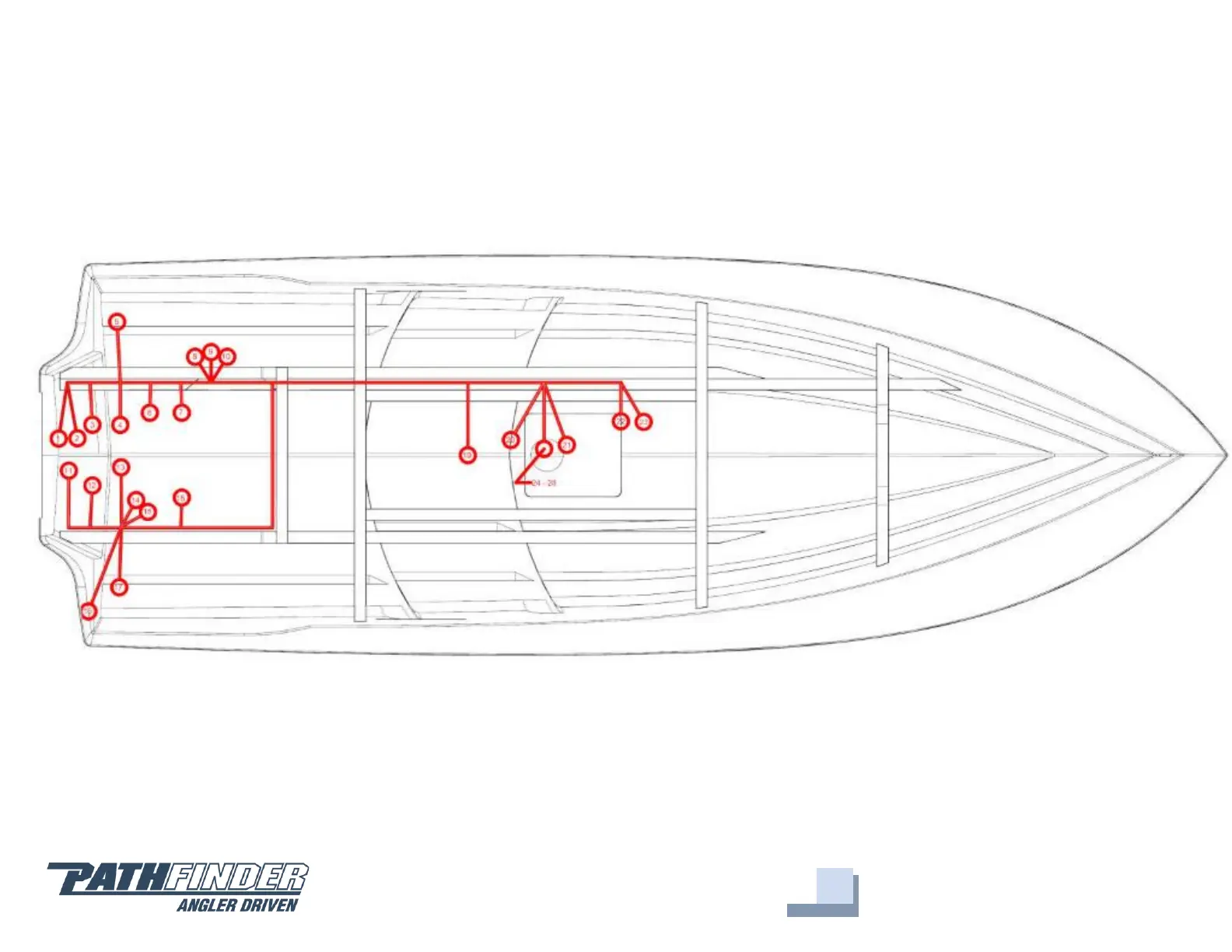

PATHFINDER 2600 HPS - 2600 HPS Hull Wire Harness

25
Maverick Boat Group
3207 Industrial 29th St. • Fort Pierce, Florida 34946
(772)-465-0631 • Pathfinderboats.com
1. STBD Power Pole
2. Port Power Pole
3. Port Underwater Light
4. Fresh Water Pump
5. Port Trim Tab
6. Livewell-3 Pump
7. Livewell-2 Pump
8. Bubbler
9. Hull/Aft Deck Connections
10. Jackplate Switch Connection
11. Jackplate
12. STBD Underwater Light
13. Bilge Pump
14. Raw Water Pump
15. Power Assist Steering
16. Anchor Light
17. STBD Trim Tab
18. Livewell-1 Pump
19. Battery Switch
20. Fuel Bond
21. Fuel Bond
22. Fishbox Macerator
23. Hull/FWD Deck Connection
24. Console Grounds
25. Fuel Gauge
26. Stereo Connections
27. Trim Tab Switch
28. Switch Panel Connections
2600 HPS Hull Wire Harness
