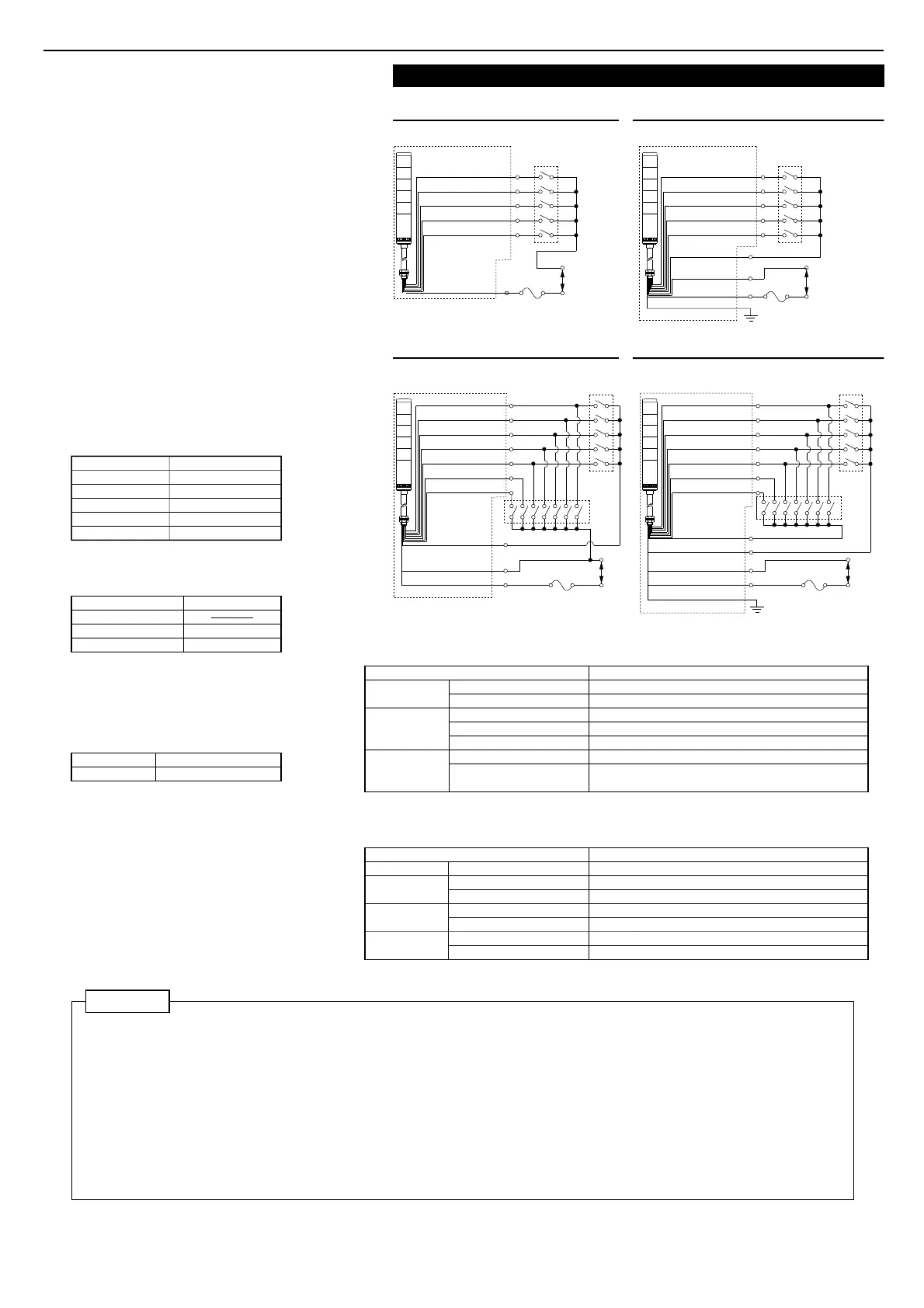

1. Wiring example
External contact
for Flashing
External contact
for Continuous
【LCE-□02A
(
FB
)(
W
)
Type / LCS-□02A Type : External contact capacity】
LED unit
（1 Light）
Buzzer
Power supply
Current consumption
Contact capacity
Current consumption
Inrush current
Contact capacity
Current consumption
Voltage specs.
24V AC/DC
Red・Amber：27.2mA Green・Blue・White：15.2mA
Contact capacity
6. Wiring Procedure
[Wiring procedure]
( Concerning the mark ※, the conditions about the product
corresponding to UL are mentioned.)
● Please make wiring connection according to wiring example.
● For wiring of 5 layers or less, please make wiring connection
by increasing or decreasing external contacts in each layer
according to wiring example.
● When using multiple LED units of the same color, make the
contact capacity equal to the number of same color LED
units multiplied by the contact capacity for 1 light.
(This is because LED units of the same color light up for one
signal line.)
※ Fuse for protection of external contact should be installed
within 305mm from the connected point of the power
source wire.
● When wiring is completed, insulate the end of each unused
lead wire by using insulation tape.
● Use Class 2 Circuit for the power supply source.
※ Use concerning fuse and fuse-holder, be sure to use the products
authorized by UL Inc.
※ Use the fuse conforming to the rated current of the machine
which you install product. (Example : Class J type fuse)
※ For the 90-250V AC models, connect the green / yellow
lead wire to the ground.
● If you have any questions about simultaneous use of multiple
units or other special operations, contact PATLITE Customer
Service before wiring.
【Wire color table】
※All 5 wires (Red, Orange, Green, Blue, White)
are connected regardless of the number of
LED units.
White Wire
Blue Wire
Green Wire
Orange Wire
Red Wire
White Unit
Blue Unit
Green Unit
Amber Unit
Red Unit
LED unit color
Wire color
Wire color
※Non buzzer specs. do not have a lead wire
for the buzzer.
※Non buzzer specs. do not have a lead wire
for the buzzer.
Buzzer
Buzzer1:Pi・Pi・Pi
Buzzer2:Pee・Pee・Pee
Purple Wire
Skyblue Wire
Nothing
【External contact fuse】
250V 1A
Voltage
Ampere rating of fuse
All model
※Use the fuse conforming to the rated current
of the machine which you install product.
(Example : Class J type fuse)
● Make sure the power is OFF before wiring. A short circuit may damage internal circuits or cause an electric shock.
● Do not pull out the lead wire or push it into the pole or the body.
● Install the external contact fuse on the power supply side as shown in the wiring example in order to prevent burn in case of
a wiring error.
● Enough attention shall be paid for wiring because if there is any mistakes in wiring a circuit may break down.
● Do not apply voltage directly to the brown lead wire. It may cause a breakdown.(FB type)
● Do not connect the yellow lead wire and the brown lead wire. It may damage the internal circuit.
● Simultaneously turning on the external contact for both constant lighting and flashing for the same light (color), may cause
another light (color) to light up. To avoid this, provide separate switches for flashing or continuous lighting.
● When turning on the same function, such as flashing or alarms, for more than one product simultaneously, be sure to use
separate external contacts for each product and function.
● When using both alarm sounds on one product, use separate contacts for the alarms and the lights.
Caution
※Is : Current capacity Vs : Withstand voltage
LCE-□02A
(
W
)
Type
1A
■24V AC/DC Type ■90～250V AC Type
1A
1A
■24V AC/DC Type
1A
■90～250V AC Type
LCE-□M2A
(
W
)
Type
LCE-□02AFB
(
W
)
Type LCE-□M2AFB
(
W
)
Type
supply
Power
LED White White wire
LED Blue Blue wire
LED Green Green wire
LED Amber Orange wire
LED Red Red wire
Yellow wire
External
contact fuse
External
contact
Continuous COM
External
contact
LED White White wire
LED Blue Blue wire
LED Green Green wire
LED Amber Orange wire
LED Red Red wire
supply
Power
Yellow wire
Gray wire
Black wire
External
contact fuse
Green/Yellow wire
（Connect Graund）
supply
Power
Yellow wire
External
contact fuse
Flashing COM
supply
Power
Yellow wire
Gray wire
Black wire
External
contact fuse
Green/Yellow wire
（Connect Graund）
Gray wire
Brown wire
Flashing COM
Brown wire
Continuous COM
LED White White wire
LED Blue Blue wire
LED Green Green wire
LED Amber Orange wire
LED Red Red wire
Buzzer2 Skyblue wire
Buzzer1 Purple wire
LED White White wire
LED Blue Blue wire
LED Green Green wire
LED Amber Orange wire
LED Red Red wire
Buzzer2 Skyblue wire
Buzzer1 Purple wire
External contact
for Flashing
External contact
for Continuous
Red・Amber：27.2mA Green・Blue・White：15.2mA
Is≧100mA Vs≧35V AC
4.5mA
Max:25A 200μsec
Is≧10mA Vs≧35V AC
100V：12A 250V：30A (200μsec)
Is≧25A
【LCE-□M2A
(
FB
)(
W
)
Type: External contact capacity】
Inrush current
Current consumption
Contact capacity
Current consumption
Contact capacity
Inrush current
Contact capacity
Voltage specs.
※Is : Current capacity Vs : Withstand voltage
90～250V AC
LED unit
（1 Light）
Buzzer
Power supply
Power supply
※ When buzzer 1 and 2 are connected to
common at the same time,it prioritizes buzzer 1.
