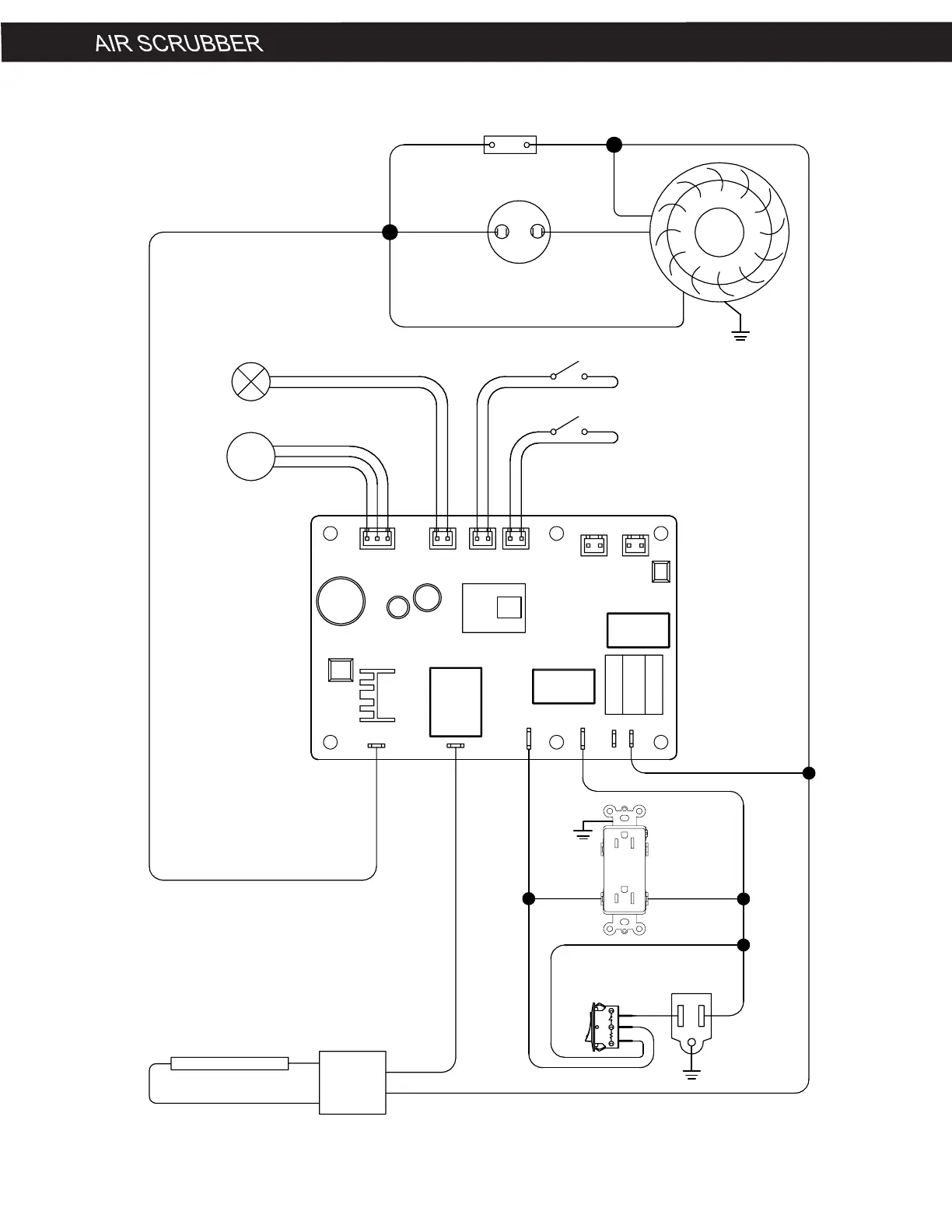

Wiring Diagram
FAN
CN1
UV
ACL ACN
COM COM
VDD S GND
- LED +
K-K K-UV
CN3
CN4 CN5
- UV + - UV +
CN6
CN7
L
N
CAPACITANCE
UV Germicidal
Lamp
BALLAST
TIMER
CHANGE
HEPAFILTER
Potentiometer
RT
Switch
Socket
Overload
protection
switch
Black
Red
Brown
Blue
Green
Black
UV-C light switch
Black
Black
Black
120VAc 60Hz
White
