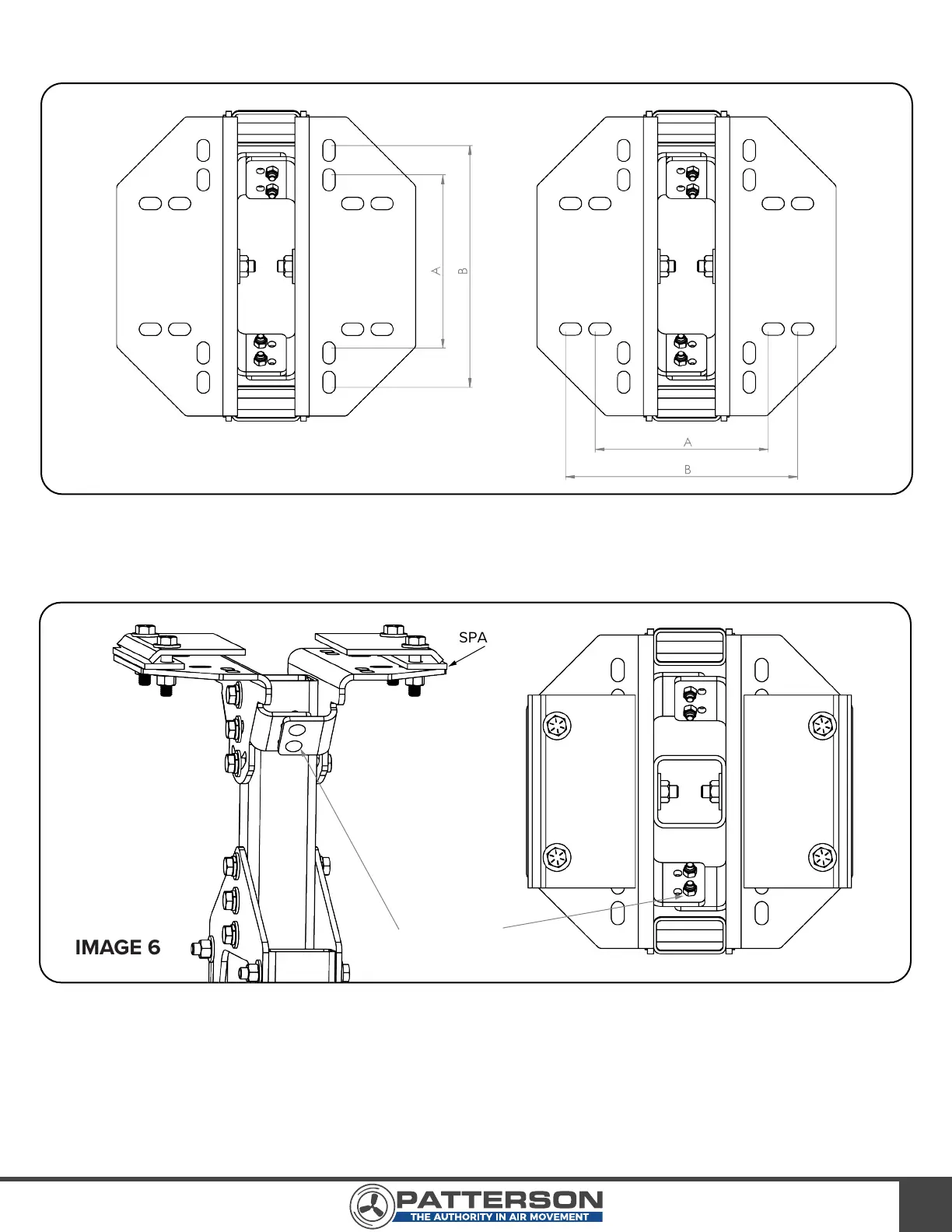

4) Refer to Image 5 to determine which set of bolt slots to use:
a. For spanning structure width less than 7¼”, use slots labeled “A”. Spanning structures wider
than 7¼” should use slots labeled “B”.
b. If spanning structure thickness is greater than ½”, use provided spacer as shown in Image 6.
5) If a down rod was ordered, adjust the mounting bracket connectors to their widest position. Refer to
Image 6.
6) Attach clamp to spanning structure, as shown in the diagram labeled Image 4. Torque GRADE 8 ½”
bolts to 80 ft-lbs.
