8
3) If a down rod was ordered, adjust the mounting bracket
connectors to their widest position. Refer to Image 2.

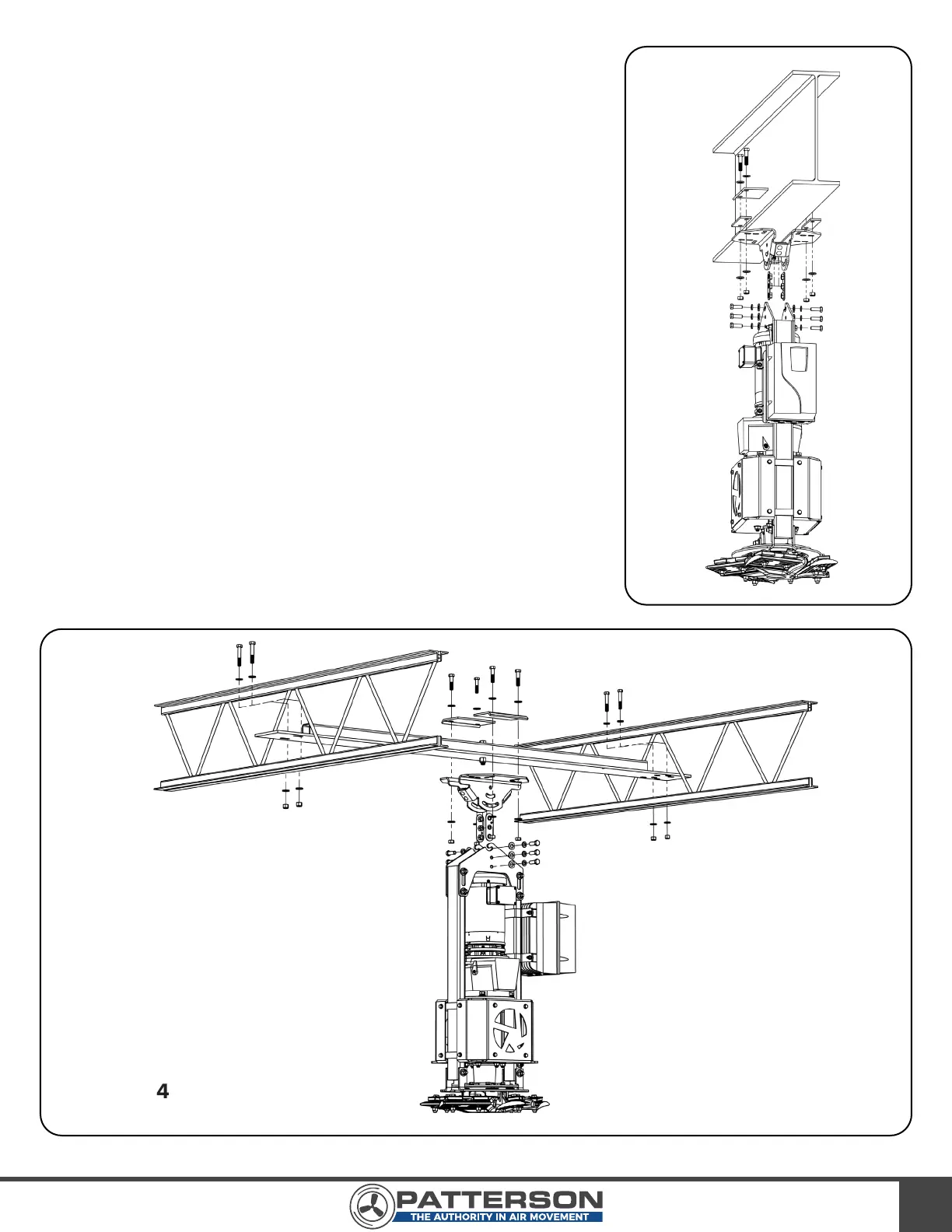

4) Attach clamp to I-beam structure, as shown in the diagram
labeled Image 3. Torque GRADE 8 ½” bolts to 80 ft-lbs.
STEP 1B - MOUNT BETWEEN BAR JOISTS
1) This installation requires the spanning of building structure.
While structures and distances may vary, we recommend using
2” steel tubing welded to a 3/8” thick steel plate as shown in
the diagram labeled Image 4. Consult a structural engineer for
spanning distances greater than eight feet.
2) Secure the spanning material to the building structure using ½”
bolts, washers, and lock nuts (not provided) as shown in Image
4. Bolts should pass through the steel plate, and out the
bottom of the joist or other structure. Torque bolts to 50 ft-lbs.
3) It is important to attach the mounting bracket to the spanning
structure first and then connect the fan assembly. If the
mounting surface isn't level, the mounting bracket can be
mounted in either direction to allow the fan to swivel and hang
straight.
IMAGE 3
IMAGE 4
