PAU Extra 300SP - Wing Assembly

Make sure to align the tail wheel assembly
with the sharpest point of the bevel to ensure
it doesn’t put extra stress on the rudder.

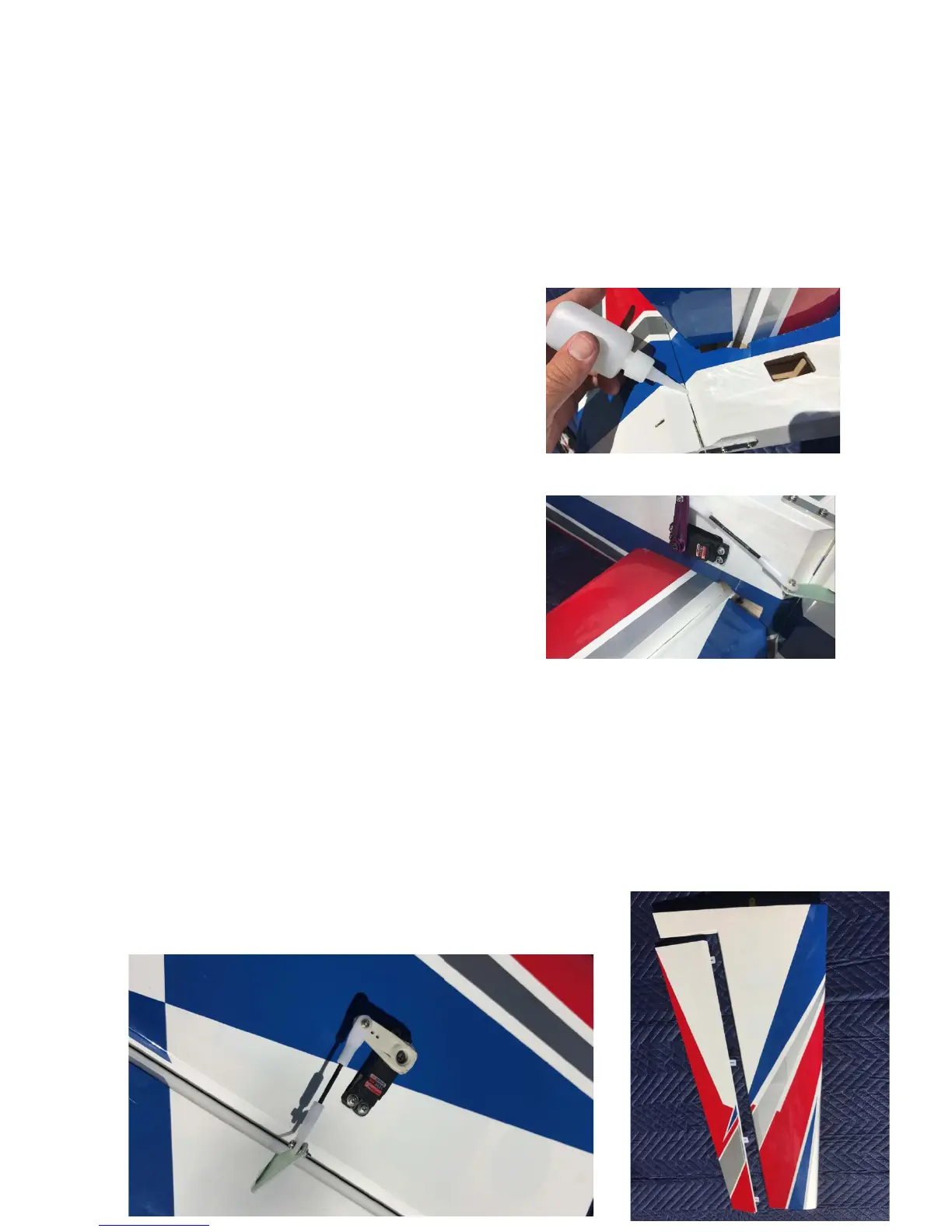

 Install rudder the same way as the elevator,
Using CA hinges and thin CA to soak the hinge.
Make sure to place the hook for the tail wheel
assembly before gluing the rudder.
 Follow the same steps to install the rudder
servo as the elevator servo.
Chapter 7
Wing Assembly
 Install ailerons using CA hinges. Using thin CA, carefully drip CA onto the hinge on
both top and bottom to ensure a proper bond to the wood.
 Before installing the control horn, sand the portion that will be glued into the wood.
Use 5-15 minute epoxy to glue in horn making sure that it is completely inside the
surface.
 Install servos and linkage.
