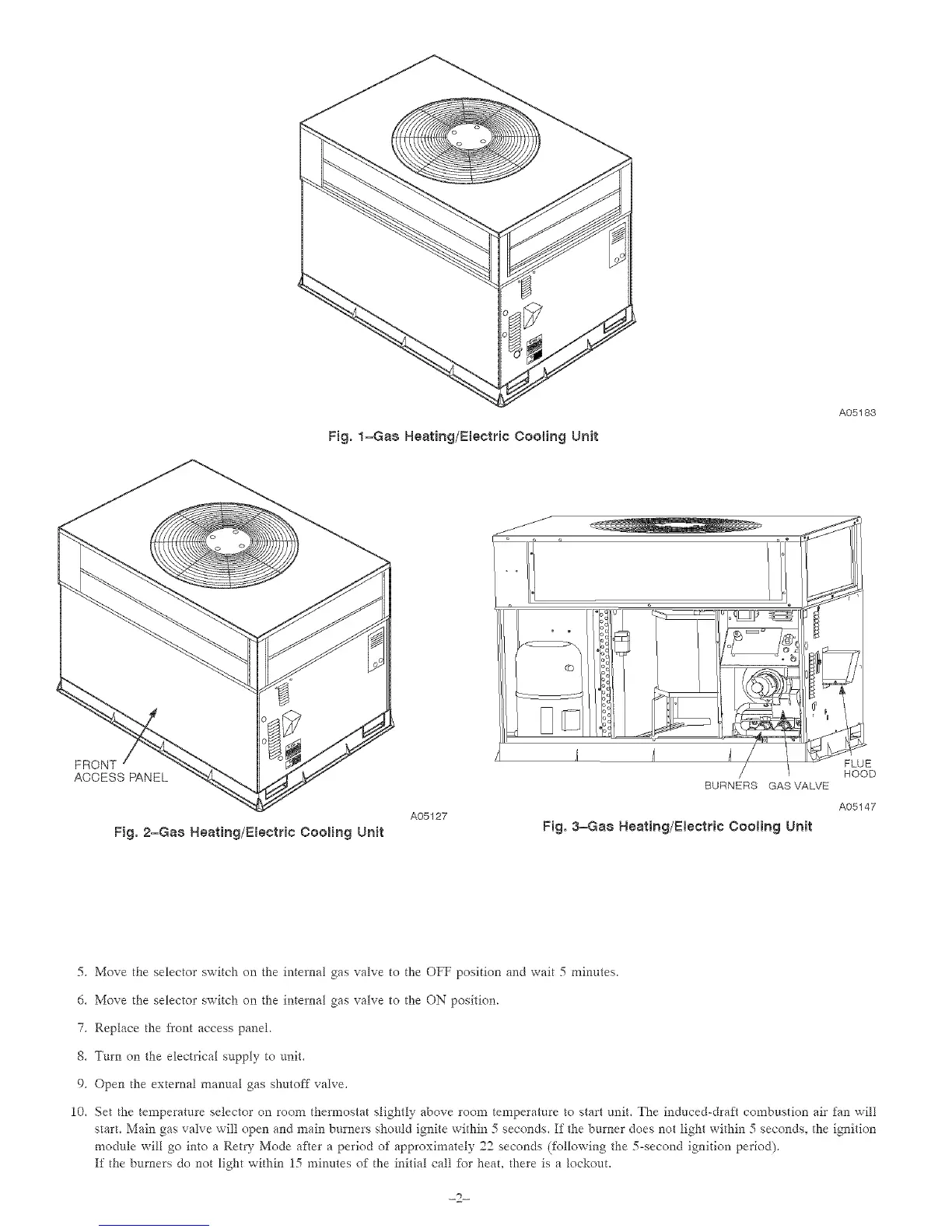

Fig, 1=Gas Heating/Electric Cooling Unit
A05183
FRONT
AOOESSPANEL
Fig. 2=Gas Heating/Electric Cooling Unit
A05127
HOOD
BURNERS GAS VALVE
A05147
Fig, 3=Gas Heating/Electric Cooling Unit
5. Move the selector switch on the internal gas valve to the OFF position and wait 5 minutes.
6. Move the selector switch on the internal gas valve to the ON position.
7. Replace the front access panel.
8. Turn on the electrical supply to unit.
9. Open the extemal manual gas shutoff valve.
10. Set the temperature selector on room thermostat slightly above room temperature to start unit. The induced-draWl combustion air fan will
start. Main gas valve will open and main burners should ignite within 5 seconds. If the burner does not light within 5 seconds, the ignition
module will go into a Retry Mode a_er a period of approximately 22 seconds (tbliowing the 5-second ignition period).
If the burners do not light within 15 minutes of the initial call _br heal there is a lockout.
