67
L510010-07A
WATER FLOW DIAGRAMS - 15

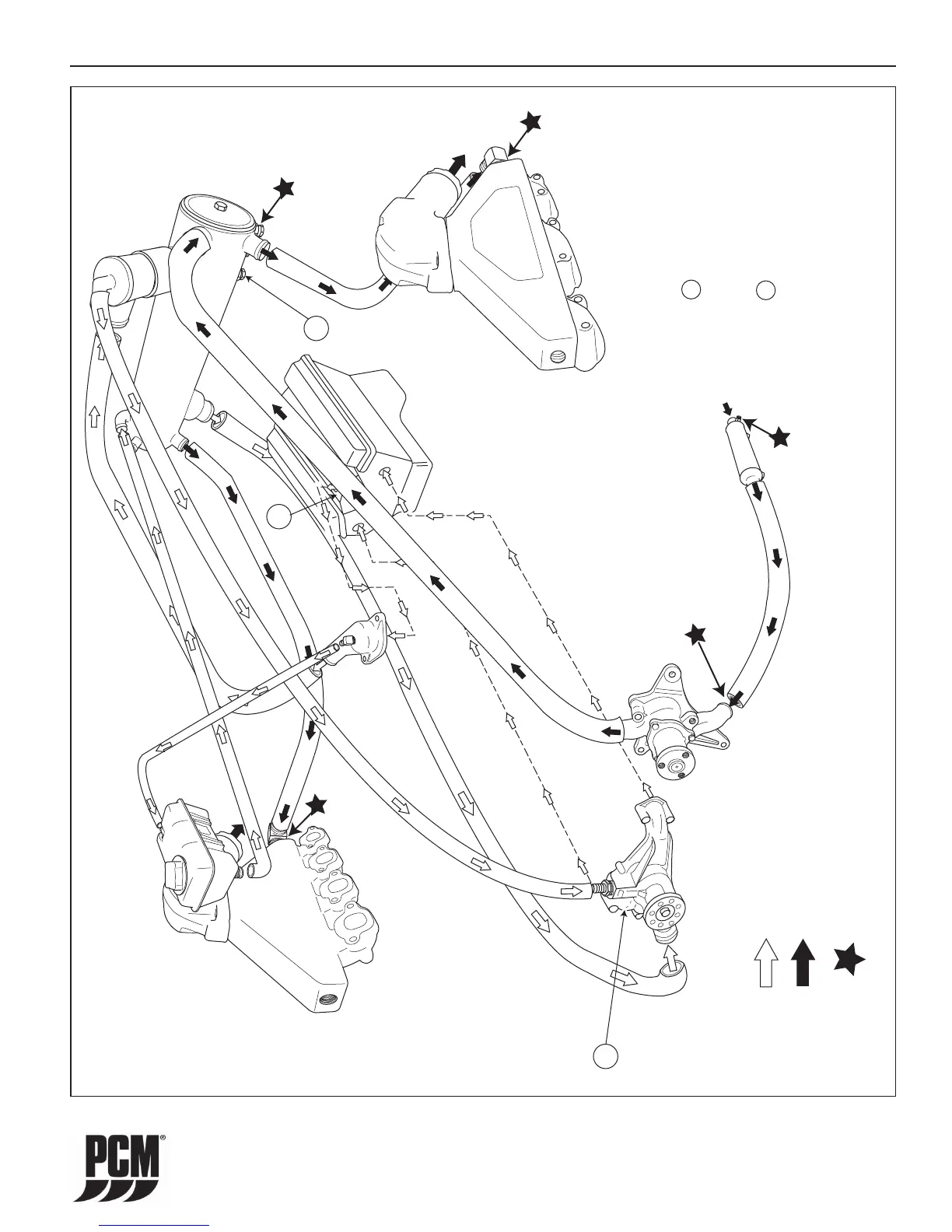

Figure 15-2 Fresh-Water Cooling System (5.0/5.7L)
= RAW WATER FLOW
= FRESH WATER FLOW
= Drain Locations
1
2
2
IMPORTANT: Accessory (i.e.
heater, hot water tank) Hook Up
Location 1 - Water OUT to
heater or hot water tank. T-Fitting
required at temp. sender location.
Location 2 - Water RETURN
from heater or hot water tank.
Fitting at bottom of heat
exchanger OR circ. pump.
To Next Page
