PDA Pro-Range Instructions • Approved Doc. No. DCP0003168 Rev 1 • Page 9

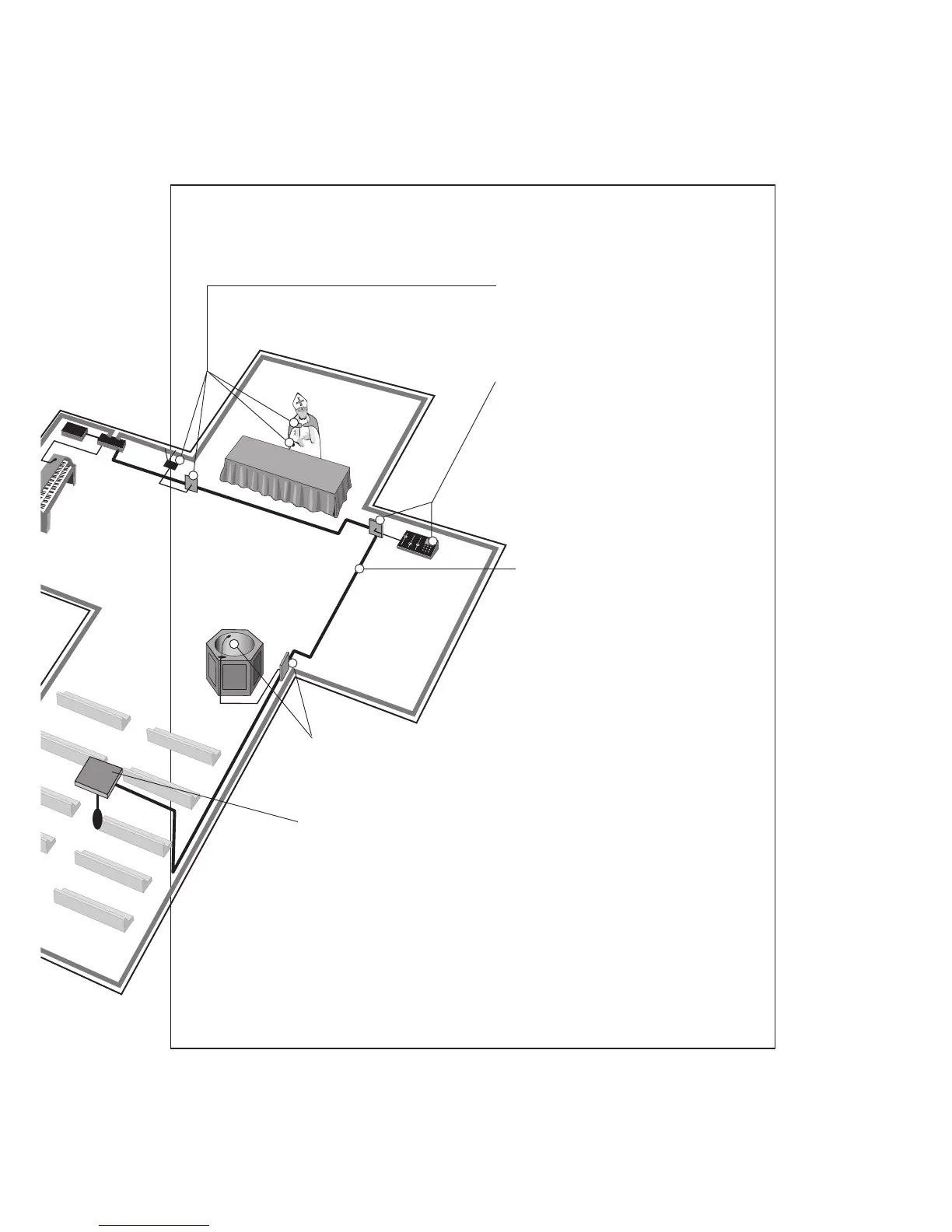

AML lectern microphone (12) connected to the
amplifier via an APJ Outreach plate (13)
Hanging ambient microphone (14) connected to the
amplifier via an APXM Outreach plate (15)
Positioned over the congregation to help convey ambient noise
and pick up the singing of hymns, etc.
Outreach network (11)
Daisychain standard two pair audio
cable such as Belden 8723 to all
Outreach plates as appropriate.
Note that a maximum of 10
outreach plates (any mix) can be
connected to the Outreach network
and that the network must not
exceed 100m (total network length).
AMR/L radio microphone (5),
transmitter (6) and receiver (7)
connected to the amplifier via an
APQM (8) outreach plate.
Existing mixer (9) for bands, etc.,
connected to the amplifier via
an APXL outreach plate (10).
