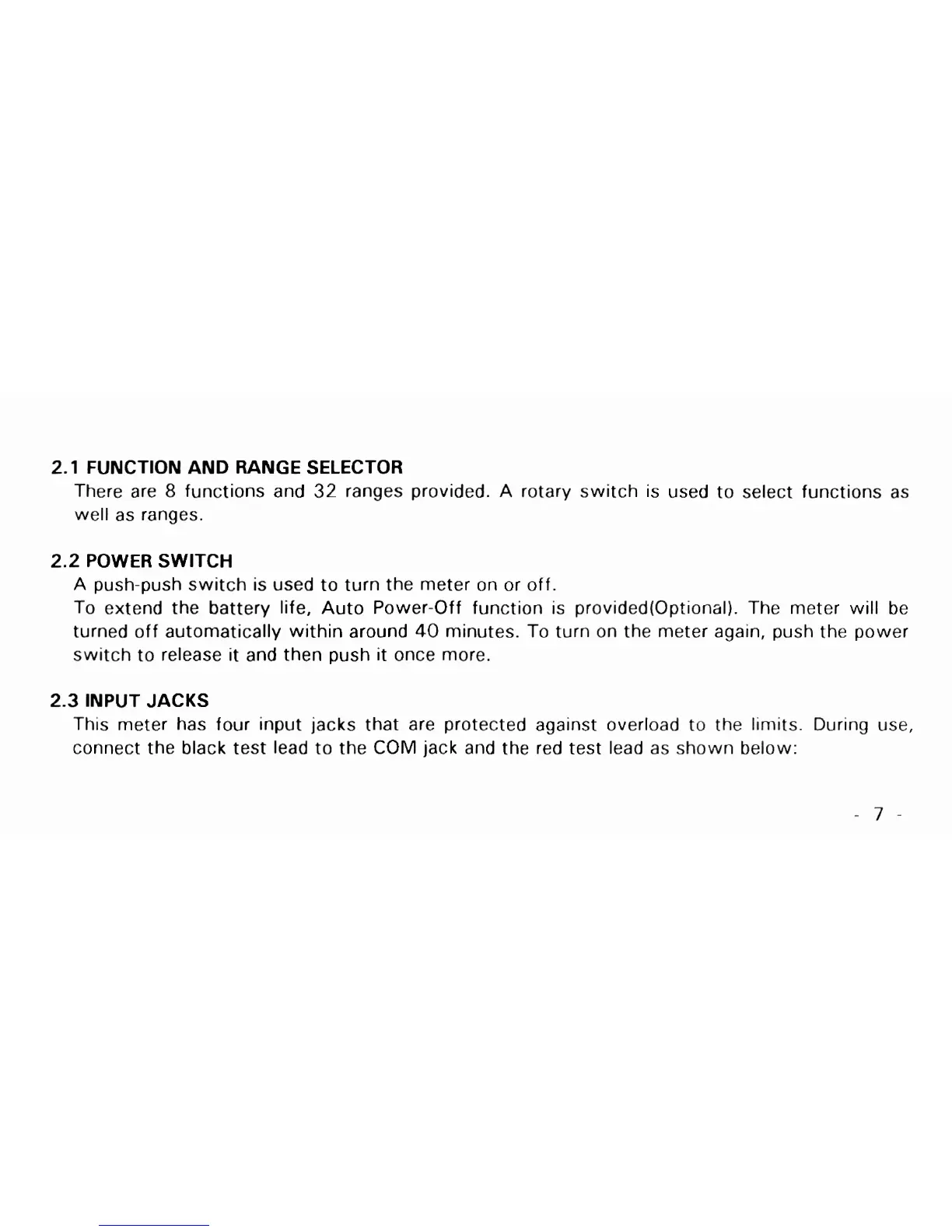

2.1
FUNCTION AND RANGE SELECTOR
There are
8
functions and
32
ranges provided. A rotary switch is used to select functions as
well as ranges.
2.2
POWER SWITCH
A
push-push switch is used to turn the meter on or off.
To extend the battery life, Auto Power-Off function is
provided(0ptional). The meter will be
turned off automatically within around
40
minutes. To turn on the meter again, push the power
switch to release it and then push it once more.
2.3
INPUT JACKS
This meter has four input jacks that are protected against overload to the limits. During use,
connect the black test lead to the
COM
jack and the red test lead as shown below:
