PDi DM62 - Page 20

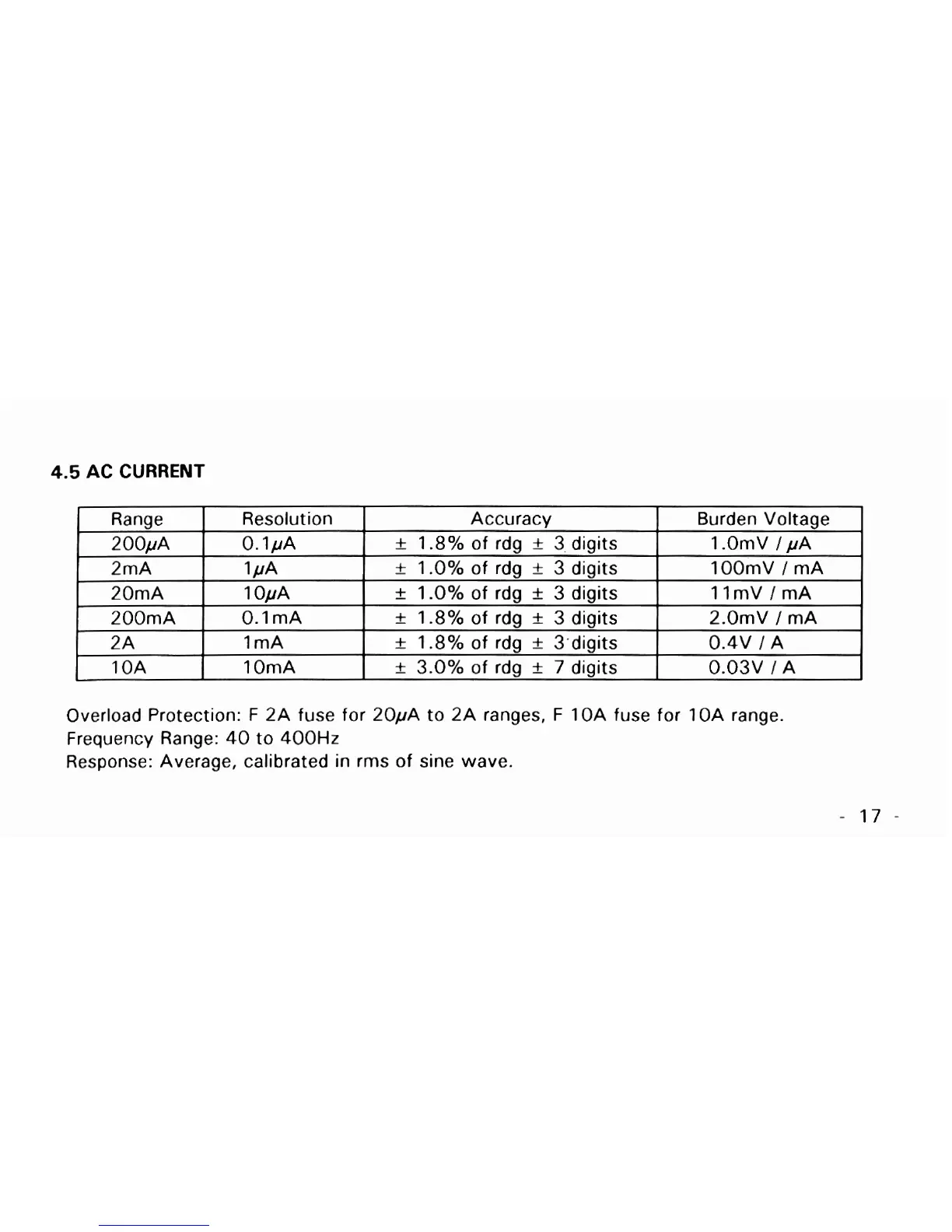

4.5 AC CURRENT
Overload Protection: F 2A fuse for 20pA to 2A ranges, F 10A fuse for 10A range.
Frequency Range: 40 to 400Hz
Response: Average, calibrated in rms of sine wave.
Range
200pA
2mA
20mA
200mA
2A
10A
Accuracy
+ 1.8% of rdg + 3 digits
+ 1 .O% of rdg + 3 digits
+ I .O% of rdg + 3 digits
+ 1.8% of rdg + 3 digits
+ 1.8% of rdg * 3,digits
k 3.0% of rdg + 7 digits
Resolution
0.1pA
1 PA
1 0pA
O.lmA
I mA
10mA
Burden Voltage
1 .OmV I pA
100mV I mA
IlmVImA
2.0mV I mA
0.4V I A
0.03V 1 A
