IBIS CEILING FAN LED
Installation Manual
REV 2022 1115
SPECIFICATIONS AND DETAILS ARE SUBJECT TO CHANGE WITHOUT NOTIFICATION. CONTACT PEACOCK FAN COMPANY FOR UP TO DATE DETAILS.
PEACOCK FAN COMPANY • PEACOCKFAN.COM
SAVE THESE INSTRUCTIONS
6

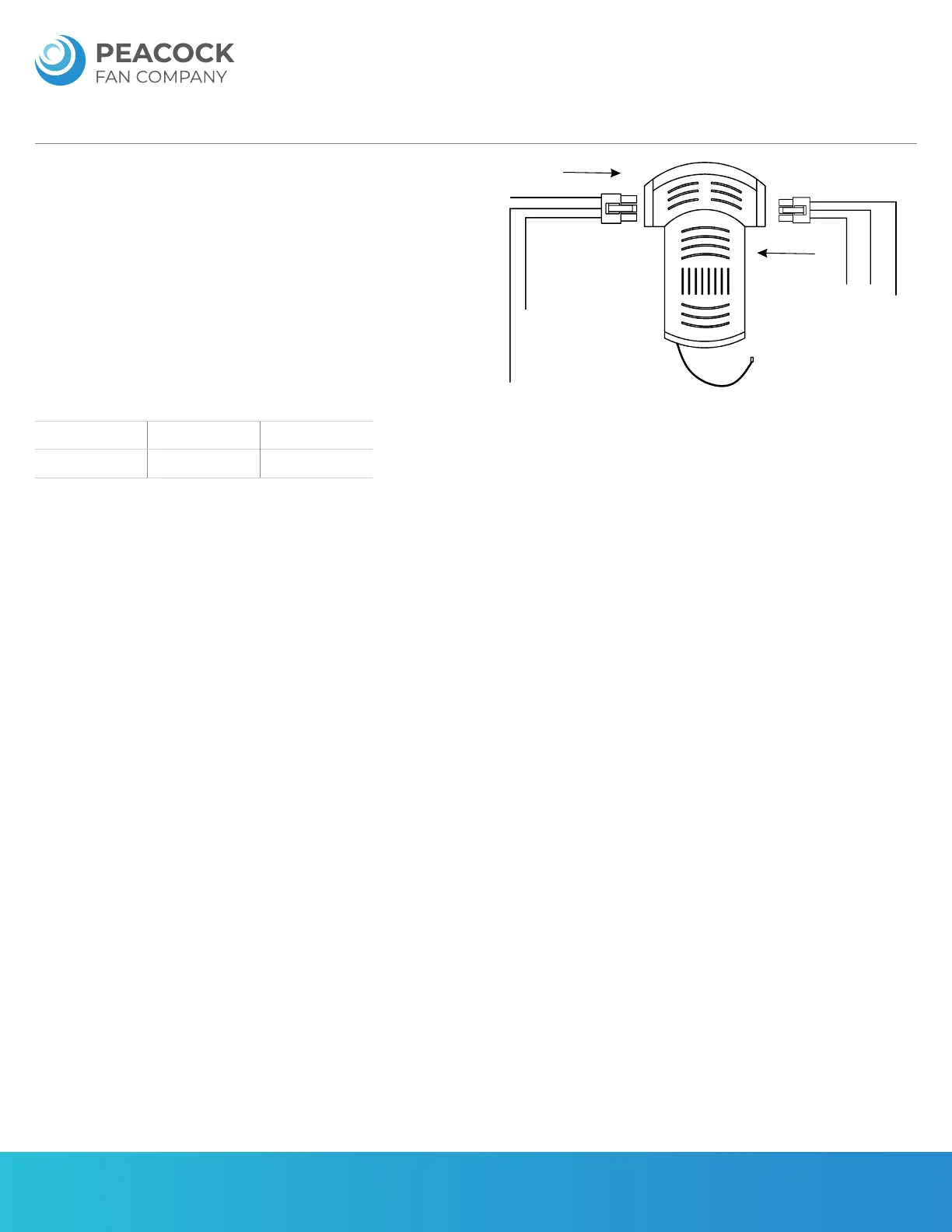

WIRING SCHEMATIC DIAGRAM FOR RECEIVER
Inspect hand held remote transmitter and receiver for damage. Remote and receiver
must be sent back to factory for maintenance if damaged.
Receiver can be controlled from any angle in the space with the included remote, it
is not restricted by direction.
With the memory function, the remote control can save the status (light and
direction) while the fan is powered OFF and resume to the previous setting after fan
has been powered ON.
Pairing Methods
After turning on the power switch, you can hear a beep, and immediately press the
power button in the upper left corner of the remote control. When a long beep is
heard, the remote control pairing is successful.
Tip: Please ensure to follow the above within 30 seconds of turning power on. If
pairing is unsuccessful, please power off the fan for 10 seconds. After powering on,
please follow the above.
POWER PARAMETER LIST
VOLTAGE FAN (MAX) LAMP (MAX)
110-130V 50W 36W
Brown line
Gray line
Red line
TO MOTOR
AC in L Black
AC IN N white
Ground Wire/Yellow & Green Wire
