Peak PKC0CF - OPERATION (USING YOUR INVERTER); Modified Sine Wave Output and Compatibility

POWER
F
AULT
ON/OFF
17
15
16
18
19
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Leg
end

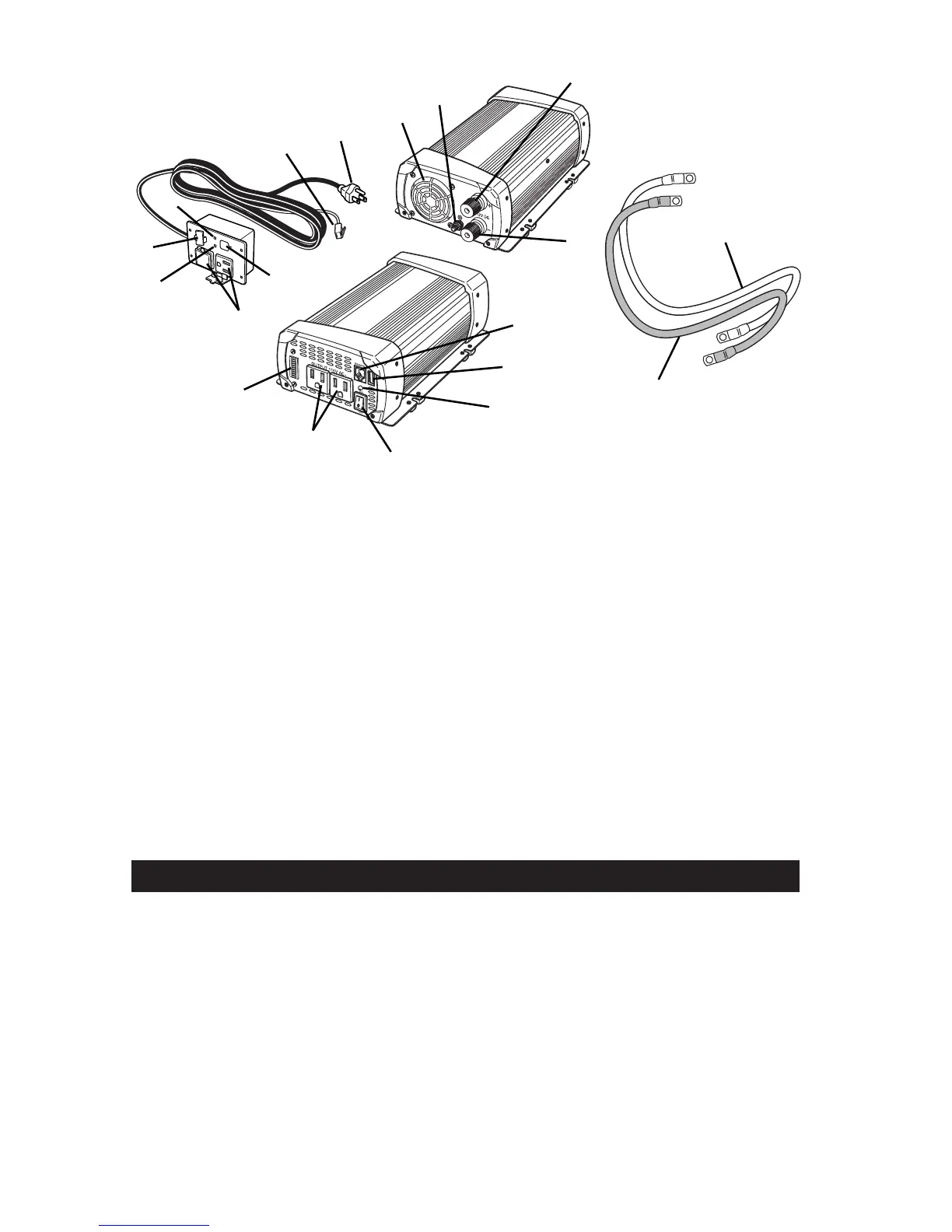

1. Remote Outlet Connector
2. Remote Outlet North American Standard 110/120-volt AC Plug
3. Cooling Fan
4. Chassis Ground Connector
5. Red Positive (+) Screw Connector
6. Black Negative (-) Screw Connector
7. Red Positive (+) Battery Cable
8. Black Negative (-) Battery Cable
9. Remote Outlet 110/120-volt Connector
10. USB Power Outlet
11. Power/Fault Indicator
12. ON/OFF Switch
13. North American Standard 110/120-volt AC Outlets
14. Power Output Wattage Indicator
15. Remote Outlet North American Standard 110/120-volt AC Outlets
16. Remote Outlet ON/OFF Button
17. Remote Outlet Fault Indicator
18. Remote Outlet USB Power Outlet
19. Remote Outlet Power Indicator
OPERA
TION (USING YOUR INVERTER)
The Power Inverter converts 12-volt DC (direct current) input voltage to 110/120-volt, 60 Hz AC
(alternating current) output power.
The Inverter produces a “modified sine wave.” The modified sine wave is suitable for most AC-
powered appliances and personal electronic devices.
The following devices may not work with a modified sine wave:
• Photocopiers, laser printers, magneto-optical hard drives
• Some laptops
• Metal halide arc (MHI) lights
• Some fluorescent lights with electronic ballasts
• Power tools that use solid-state power
• Fans and power tools that use variable speed controls
• Some new furnaces and pellet stoves with microprocessor control
• Digital radios and clocks
• Sewing machines with speed/microprocessor control
• Electronics that modulate radio frequency signals on the AC line
