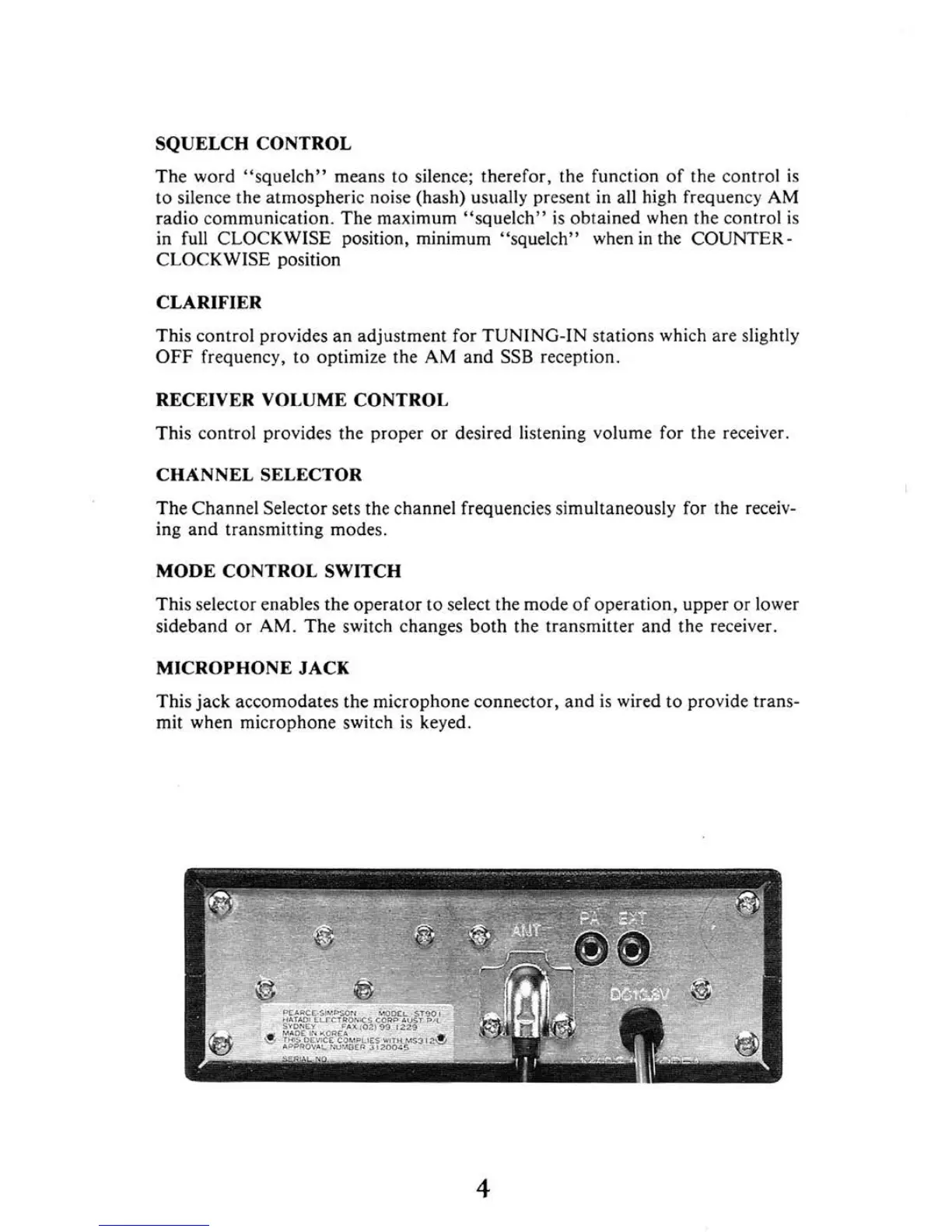

SQUELCH
CONTROL
The
word "squelc
h"
means
to
silence; therefor, the function
of
the control
is
tosilencetheatmosphericnoise(hash)usuallypresentinallhighfrcquencyAM
radio communication.
The
maximum
"squelch"
is obtained when
the
contro
l
is
in full CLOCKWISE position, minimum "squelch" when
in
the
COUNTER-
CLOCKWISE position
This control provides an adjustment for
TUNING
-IN stations which are s
li
ght
ly
OFF
frequency, to optimize the AM
and
SSB reception.
RECEIVER
VOLUME
CONTROL
This control provides the proper or desired listening volume for the receiver
The
Channel Selector sets the channel frequencies simultaneously for the receiv-
ing
and
transmitting modes
This selector
enab
le
s the
operator
to select the mode
of
operation, upper
or
lower
sideband
or
AM.
Th
e
sw
it
ch changes
both
the transmitter
and
the receiver.
This
jack
accomodates the microphone connector,
and
is
wired to provide trans-
mit when microphone switch
is
keyed.
