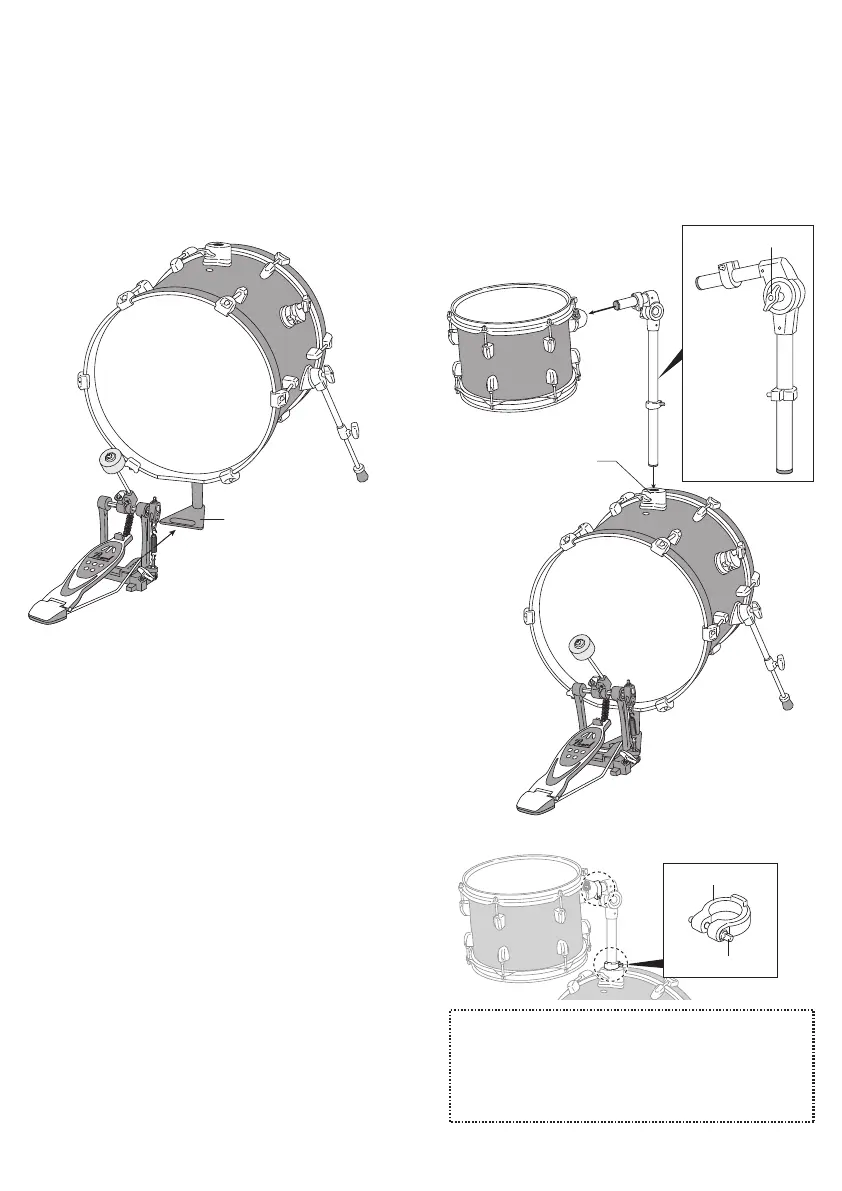

Tom Tom Setting
Insert the long ends of the Tom Holders into the Tom
Holder Bracket on the Bass Drum as shown (Fig.7) and
tighten the Wing Nut on the Tom Holder Bracket. Next,
loosen the Wing Nut on the Tom Holder. Adjust the angle
of the Tom Holder so you can attach the Tom Tom easily
then retighten the Wing Nut (Fig.8). Attach the Tom Tom
to the other end of the Tom Holder and tighten the Wing
Nut on the mounts on the Tom Tom.
Drum Pedal Setting
Position the Bass Drum upright as shown and attach your
Bass Drum Pedal to the Pedal Clamp Plate. Adjust the
height of the Pedal Clamp Plate and the length of the
Spurs if necessary. When making the adjustment, hold the
Bass Drum with one hand to prevent the drum from falling
over. When the height is set, make sure to tighten the
Wing Bolt on the Clamp Plate Bracket and the Spurs, and
the Stop Lock on the Pedal Clamp Plate (Fig.6).
Note
The Tom Holders are equipped with StopLocks that keep the
drums from slipping or rotating and to memorize position
settings for quick and repeatable set-ups. When the position
of the Tom Toms are set, place each StopLock into the slots
in the Tom Holder Bracket and the mounts on the Tom Toms
to retain these settings (Fig.9).
Fig.6
Fig.9
Fig.7
Fig.8
Pedal Clamp Plate
Tom Holder Bracket
StopLock
Key Bolt
Wing Nut
To Next Page
