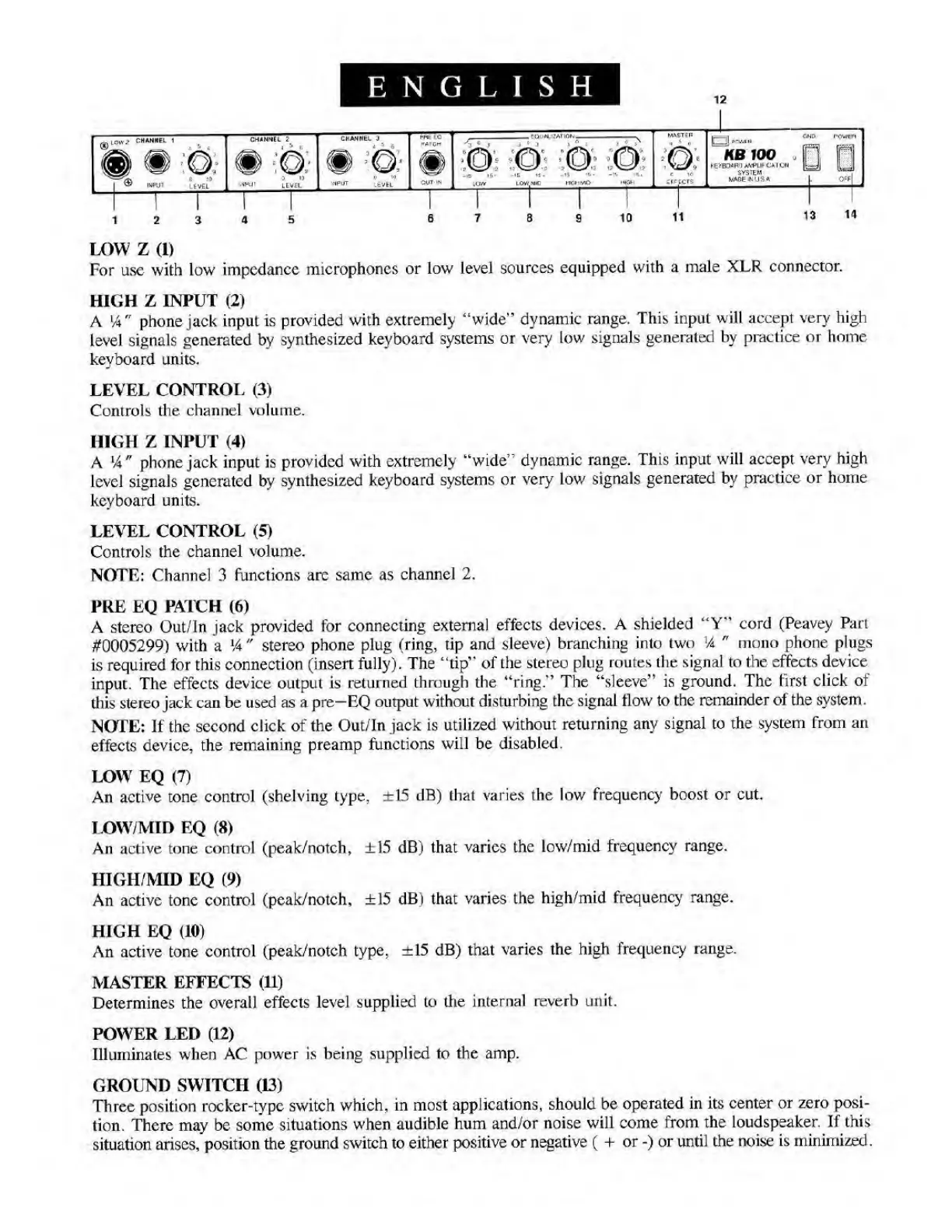

Peavey KB 100 - Front Panel Controls; Input Jacks and Level Controls; Effects and EQ Controls; Indicators and Switches

ENGLISH
12
01OW2 CHAMKEt t
1 © IMPJ1 if vEL°
CHANNEL 2
wkj! level’
CHANNEL i
••(PUT LEVEL
“ATOM
OUT IN
__-- r-OUAWATON--—s
gX i©
Mtt LOW MIC HCI'VIS iM»‘
»A\ST‘R
C 10
erreers
t==l oid row on
KB 100 o H H
KE'BPAHa AW'UF CM O) H—j| II jl
SYSTEM ,— |
VAOEAVJSA y 0 ! f|
n — n i r i
1 2 3 4 5 6 7 8 9 10 11 13
LOW Z (1)
For use with low impedance microphones or low level sources equipped with a male XLR connector.
HIGH Z INPUT (2)
A !4" phone jack input is provided with extremely “wide" dynamic range. This input will accept very high
level signals generated by synthesized keyboard systems or very low signals generated by practice or home
keyboard units.
LEVEL CONTROL (3)
Controls the channel volume.
HIGH Z INPUT (4)
A l A " phone jack input is provided with extremely “wide" dynamic range. This input will accept very high
level signals generated by synthesized keyboard systems or very low signals generated by practice or home
keyboard units.
LEVEL CONTROL (5)
Controls the channel volume.
NOTE: Channel 3 functions arc same as channel 2.
PRE EQ PATCH (6)
A stereo Out/In jack provided for connecting external effects devices. A shielded “Y" cord (Peavey Part
#0005299) with a 14 " stereo phone plug (ring, tip and sleeve) branching into two 14 " mono phone plugs
is required for this connection (insert fully). The “tip" of the stereo plug routes the signal to the effects device
input. The effects device output is returned through the “ring.” The “sleeve" is ground. The first click of
this stereo jack can be used as a pre-EQ output without disturbing the signal flow to the remainder of the system.
NOTE: If the second click of the Out/In jack is utilized without returning any signal to the system from an
effects device, the remaining preamp functions will be disabled.
LOW EQ (7)
An active tone control (shelving type, ±15 dB) that varies the low frequency boost or cut.
LOW/MID EQ (8)
An active tone control (peak/notch, ±15 dB) that varies the low/mid frequency range.
HIGH/MID EQ (9)
An active tone control (pcak/notch, ±15 dB) that varies the high/mid frequency range.
HIGH EQ (10)
An active tone control (peak/notch type, ±15 dB) that varies the high frequency range.
MASTER EFFECTS (11)
Determines the overall effects level supplied to the internal reverb unit.
POWER LED (12)
Illuminates when AC power is being supplied to the amp.
GROUND SWITCH (13)
Three position rocker-type switch which, in most applications, should be operated in its center or zero posi¬
tion. There may be some situations when audible hum and/or noise will come from the loudspeaker. If this
situation ariscs,’position the ground switch to either positive or negative ( + or -) or until the noise is minimized.
