3. TWO 19/2-INCH UNITS RECEIVER INSTALLATION

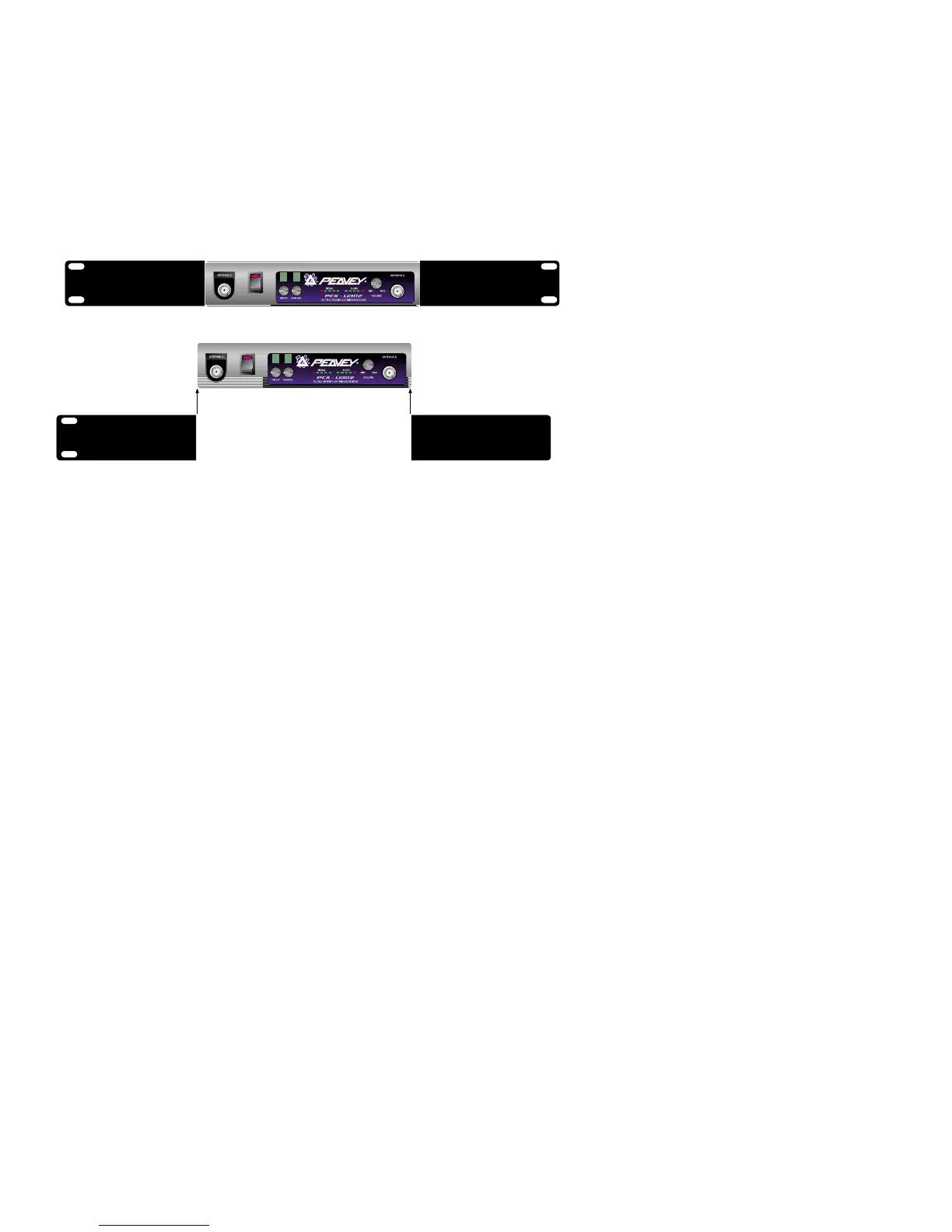

A. Setup for single half-rack receiver
1. Push the rack mount brackets (RM-11)
upwards until it is firmly attached to the
receiver. (Figure 5)
Fig. 5
B. SETUP FOR DUAL HALF-RACK RECEIVERS
1. Remove the screws at the top and bottom of
the receiver where they will be joined together.
Remove one steel plate from each receiver.
Push the receivers next to each other. Refer
to figure 6.
2. Insert the steel plate in between the two
receivers (top and bottom). Align and fasten
the screws tightly as shown in figure 6.
3. Align and fasten the rack mount brackets
(RM-12) on the outer sides of both receivers
as shown in figure 6.
8
