8

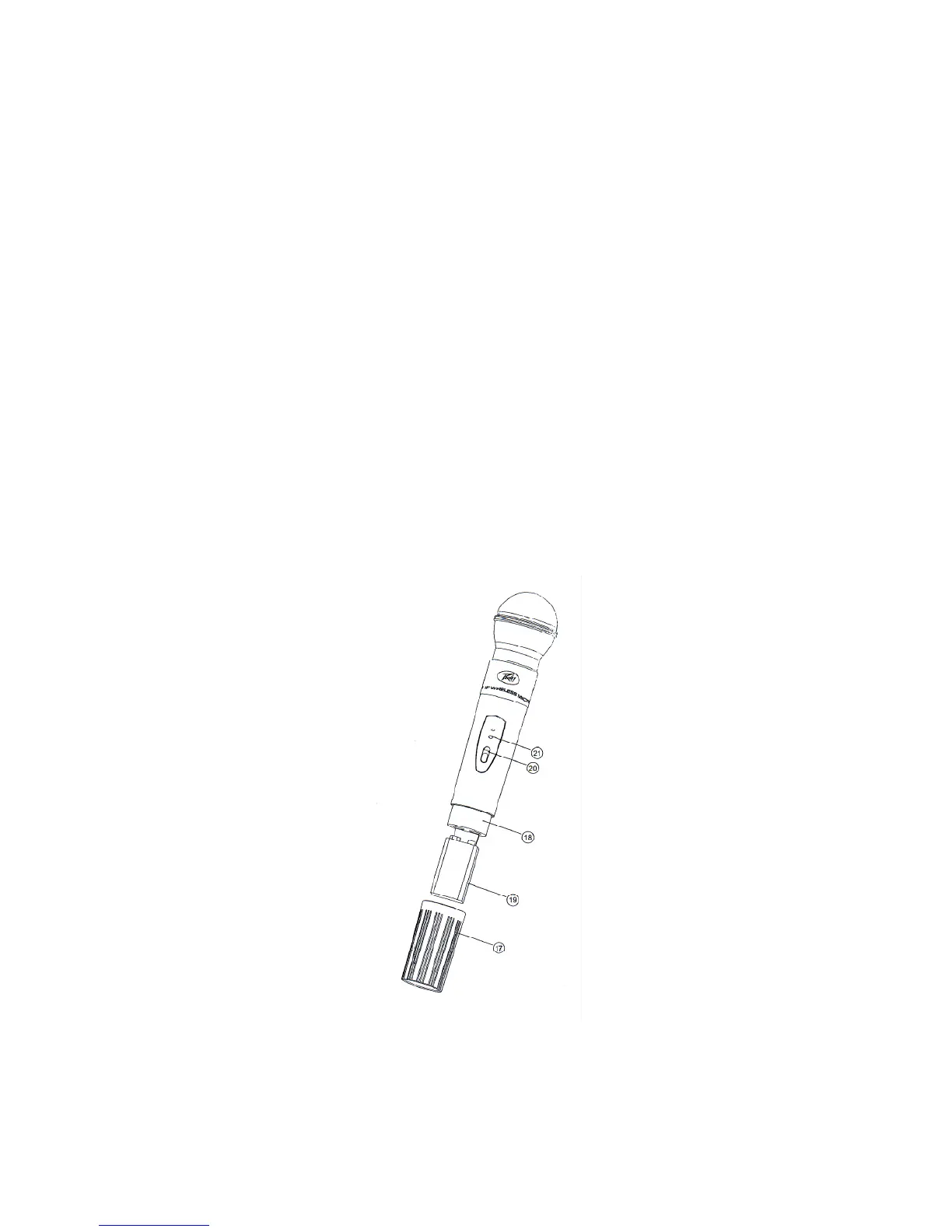

2. Turn on the PV®-1 by sliding the OFF/ON/STANDBY SWITCH (20) to the STANDBY position
(transmitter on, audio muted) or the ON position (transmitter and audio both on). The BATTERY
INDICATOR LED (21) wi l l give a single quick flash, indicating usable battery strength. In the
case of a dead or low battery, the LED will either not f l ash at all or will stay on continuously,
indicating that the battery should be replaced. To preserve battery life, turn the transmitter off
when not in use.
3. The microphone is now ready to use. The A and/or B DIVERSITY LED INDICATORS (3) and
most or all of the RF LEVEL DISPLAY LEDs (4) on the PV-1 receiver should now be illuminated,
indicting a received signal from the transmitter. When ready to speak, slide the transmitter switch
to the ON position. Adjust the volume of the receiver as per the Audio Output Microphone
Connection section of the above PV-1 receiver instruction. The AF LEVEL LED DISPLAY (5) on
the PV-1 receiver will light up to 5 LEDs (4 green and 1 red) for all input signals. Occasional
flickering on and off during use of the top red LED indictor in this display is normal, however if the
red LED stays on continuously, it means the signal is too loud and there is the possibility of
overload distortion. Back off from the microphone until the red LED indicator only flickers on
peaks.
[Note: Observe care in selecting P.A. volume, transmitter location and speaker placement so that
acoustic feedback will be avoided.]
[Note: Microphone elements can easily be destroyed by the buildup of salts and minerals from
perspiration and saliva. It is good practice to put a windscreen on the mic element at all times to
protect it.]
